8
Installation and Service Manual

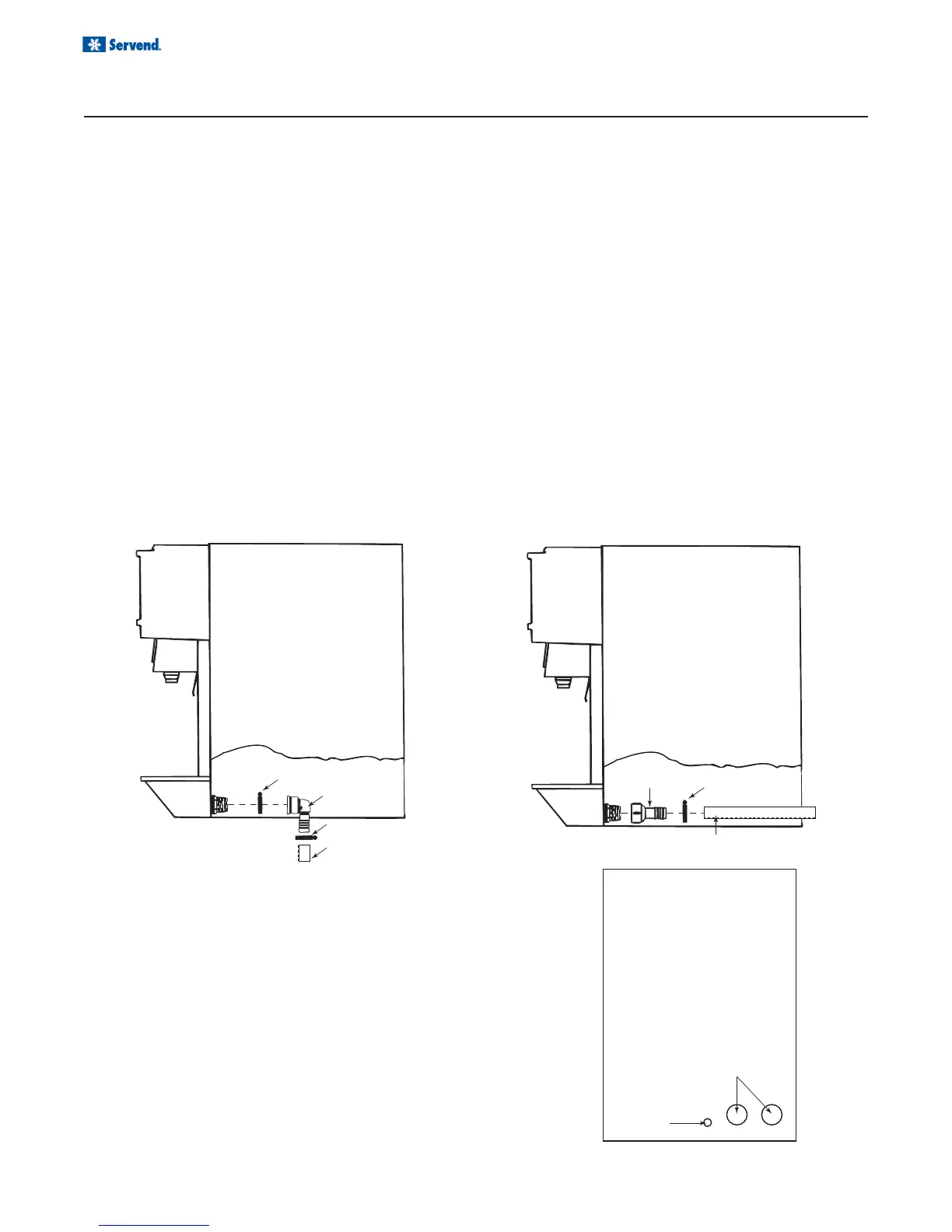

Drainage Option One
Drainage through the bottom of the unit.
Drainage Option Number Two
Drainage through the back of the unit.
MII 302 AND 402 WILL HAVE
TWO DRAINS
Hole for drain
pan drain
Holes for beverage lines
DRAINAGE OPTIONS
The drains for MII Series connects to the drain pan.
INSTALLATION
PRE-INSTALLATION CHECK LIST
1 Do you have enough space to install the dispenser
or a dispenser and top mounted cuber?
2 Does the top mounted cuber (if utilized) have a mini-
mum of 6 inches (15.3) cm) clearance on all sides?
3 Is the countertop level?
4 Can the countertop support the weight of the dis-
penser, or the dispenser/cuber combination plus the
weight of the stored ice?
INSTALLATION CHECK LIST
1 Place the dispenser in the desired location.
2 Install drain plumbing and insulate.
3 Fill bin with ice.
4 Connect power supply.
5 Meet all code requirements.
6 Dispense a few cups of ice to check for proper operation
90
o
elbow fitting
Radiator clamp
Radiator clamp
Flexible tubing
Straight fitting
Radiator clamp
Flexible tubing
To Next Page
