Installation and Service Manual

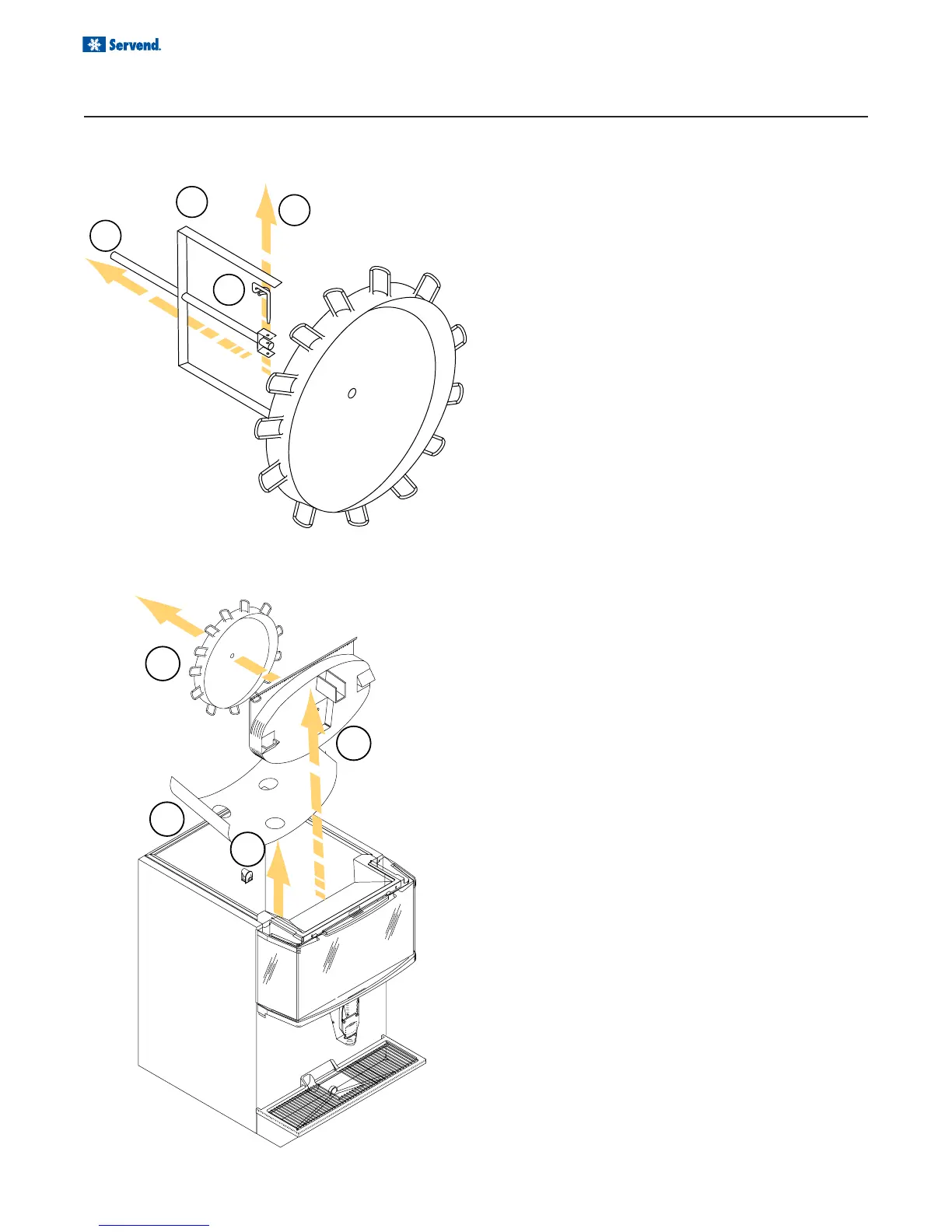

Agitatior arm and paddlewheel pin:
8. Rotate the agitator arm so the paddle wheel pin
handle is pointing up, toward the ceiling. For the
MD-302 dispenser only, reach inside the bin through
the area where the strip lid has been removed.
9. Loosen the hand-removable paddle wheel pin from
the agitator by twisting counter clockwise until it
snaps from the agitator bar...
10. ... Then remove the paddle wheel pin from the
hole in the agitator.
11. Push the agitator bar toward the back of the
unit until the agitator is free of the paddle wheel hub.
Paddlewheel, bin liner and paddle wheel area:
12. Move the front of the agitator to one side and
slide the agitator forward until the rear of the agita-
tor shaft is clear of the bushing.
13. Remove the agitator from the bin area.
14. Slide the paddle wheel from its shaft.
15. Loosen the four knurled fasteners that hold the
bin liner in place.
16. Remove the bin liner.
17. Remove the paddle wheel area from the bin.
For the MD-302 dispenser only, remove the paddle wheel
area to the back of the bin.
18. Discard the remaining ice in the bin.
8
9
10
11
P
P
U
U
S
S
H
H
F
F
O
O
R
R
I
I
C
C
E
E
14
16
17
15
D
D
A
A
N
N
G
G
E
E
R
R
USER MAINTENANCE
HOW TO DISASSEMBLE FOR CLEANING OR MAINTENANCE
