Part Number: 040006977 Rev. 01 03/19 13
Section 3 Operation
WATER CURTAIN
The water curtain is designed to keep the spraying water
from escaping the evaporator compartment. Removal of the
bin door is not required, but enhances access.
Grasp the ice curtain and lift up.
To re-install into ice machine,pivot the water curtain and pull
down into position. Make sure tabs are secure in grooves.
ICE CHUTE
The ice chute is positioned over the spray nozzles and allows
the ice to easily fall into the bin. It must be firmly positioned
over the Spray Bar Assembly, with the front edge inside the
water trough or the spray nozzles will not be aligned with the
spray holes, and spray water will fall into bin.
1. Grab protruding spray holes on one end and lift up.
2. Pivot ice chute and remove.
3. To re-install ice chute, grasp protruding spray holes
and position over Spray Bar Assembly. Make sure rear
supports are over Spray Bar Assembly, and front edge is
inside of water trough.

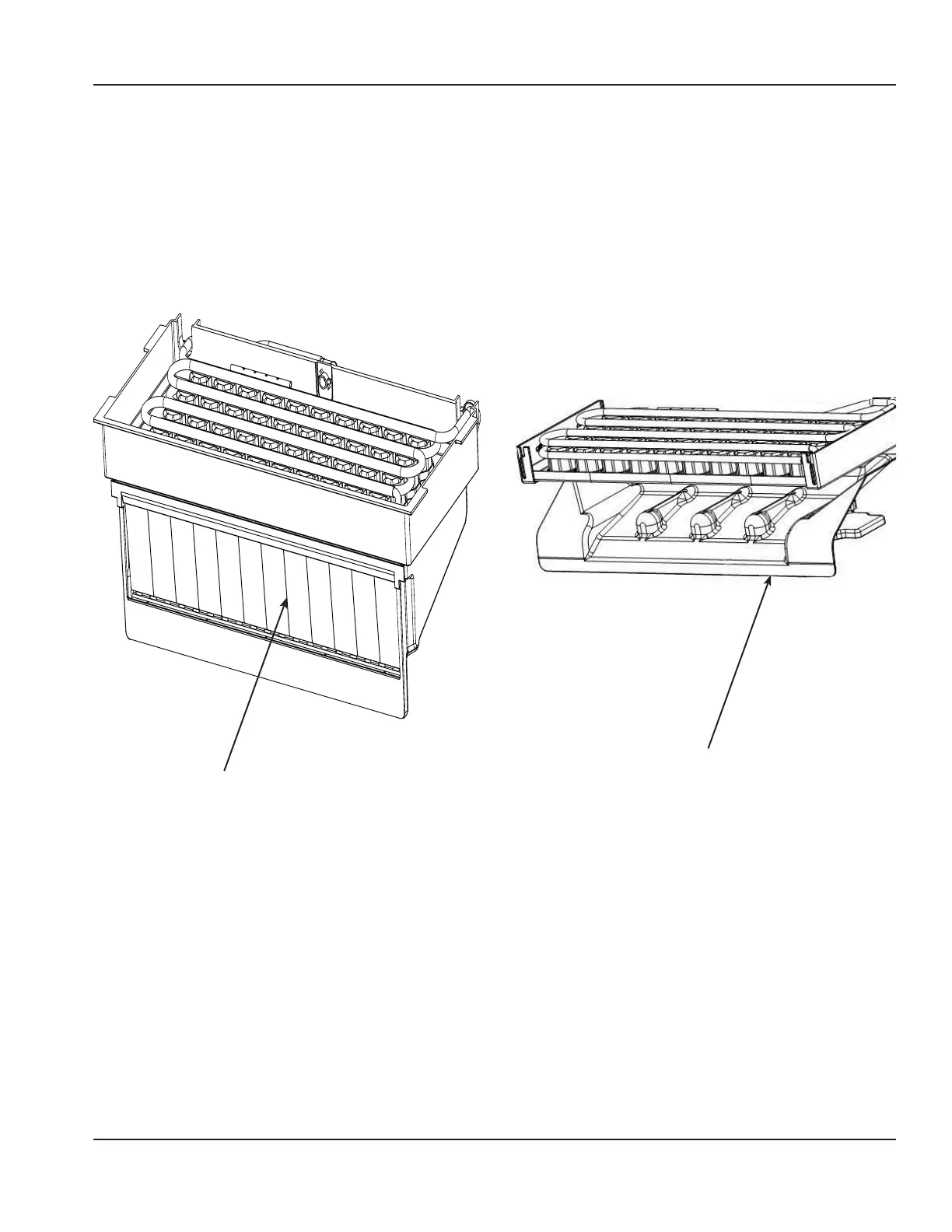

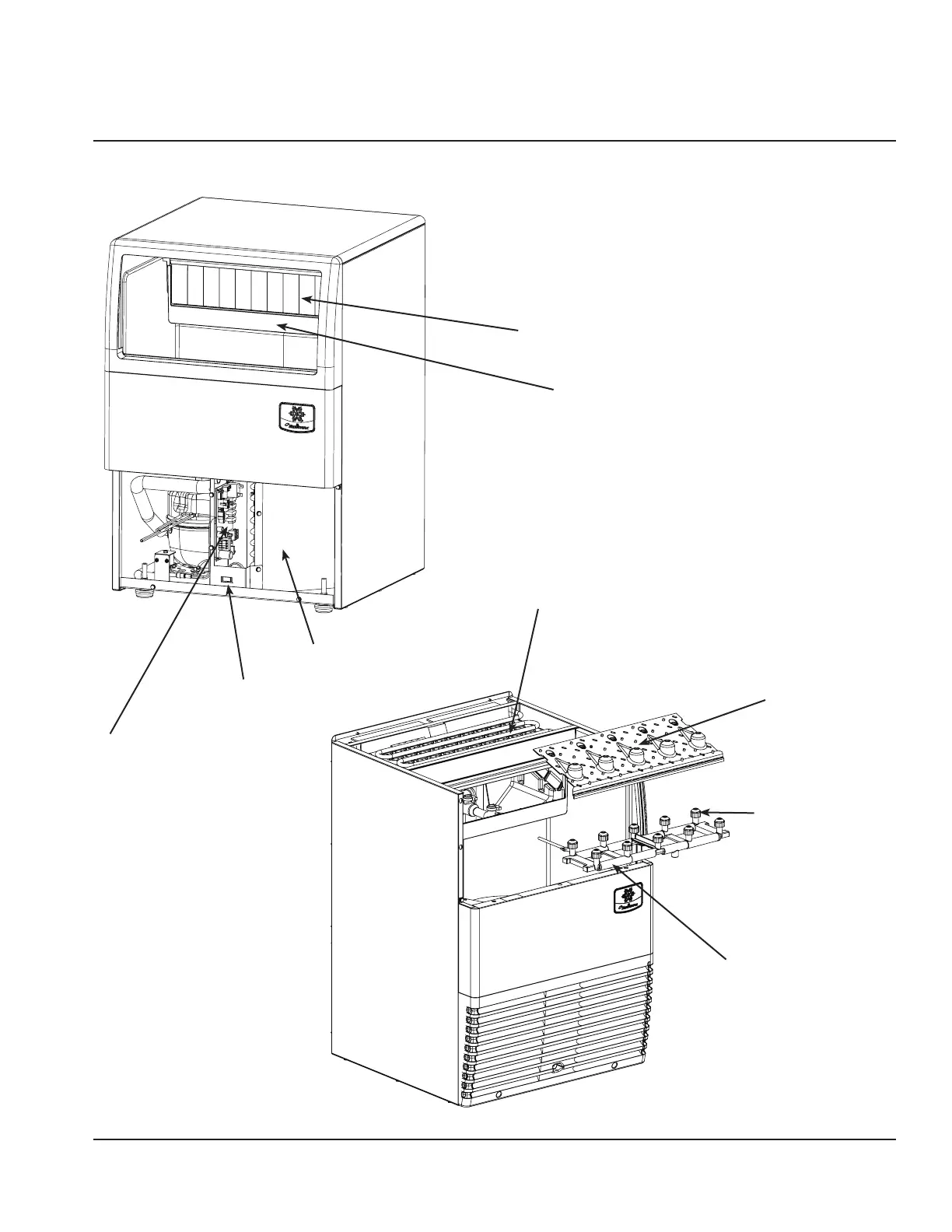

Water Curtain
Ice Chute
