14 Part Number: 040006977 Rev. 01 03/19
Operation Section 3

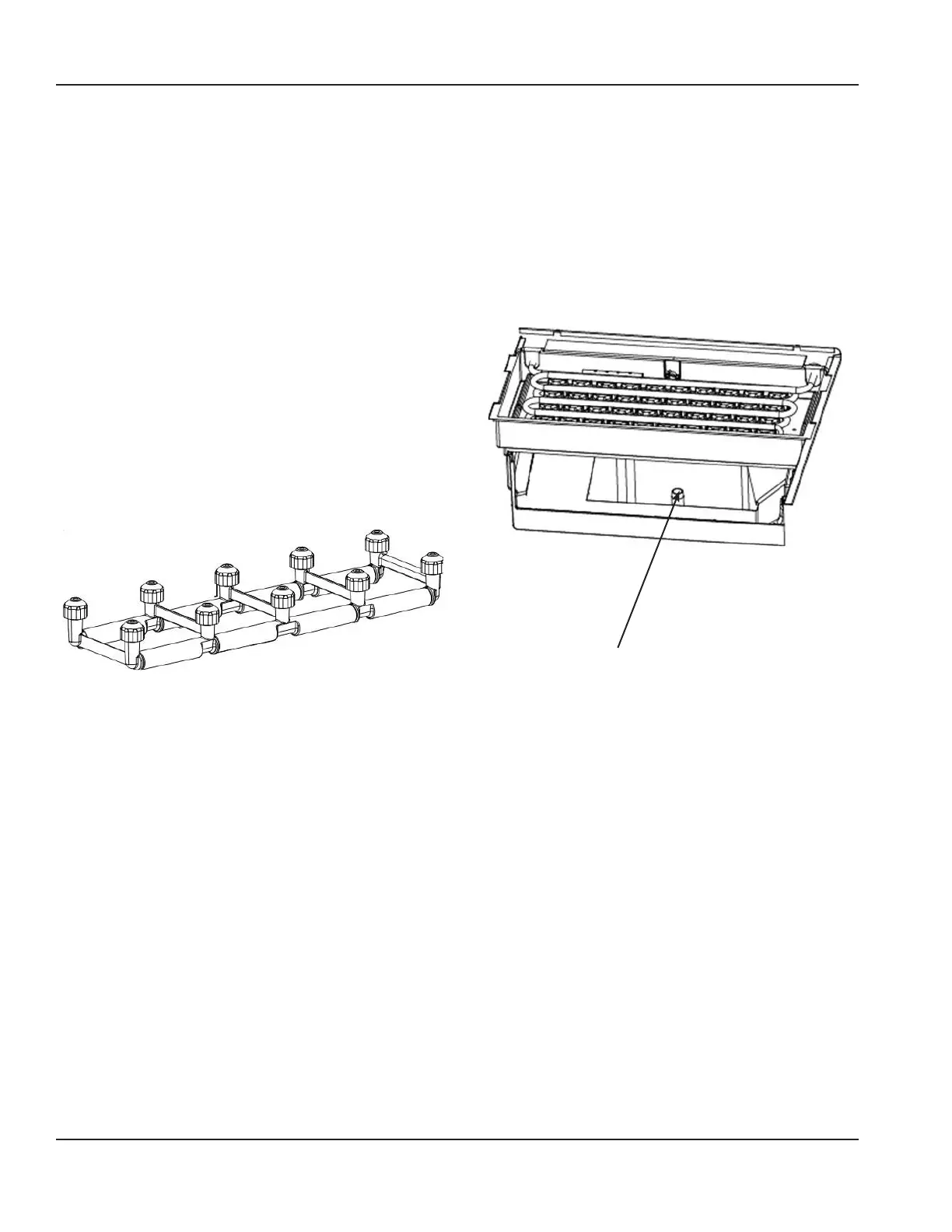

SPARY BAR
The spray bar supplies water to the individual ice-making
cups. Water from the Water Pump sprays through the
nozzles, located on the upper portion of the tubes.
1. Grasp one end of the spray bar, lift up and remove from
seat formed in water trough.
2. Remove both plastic clips on water inlet tubing by
grasping both ears on clip and separating.
3. Apply food grade lubricate to ease re-assembly of spray
bar components when necessary.
4. To re-install spray bar, position water inlet tubing on inlet
ports, and squeeze clips until tight.
5. Reposition assembly on water trough seat.
Nozzles and inserts can be removed for cleaning by
unscrewing nozzles. Inserts are located inside the spray bar
ports. The spray bar also disassembles for easy cleaning.

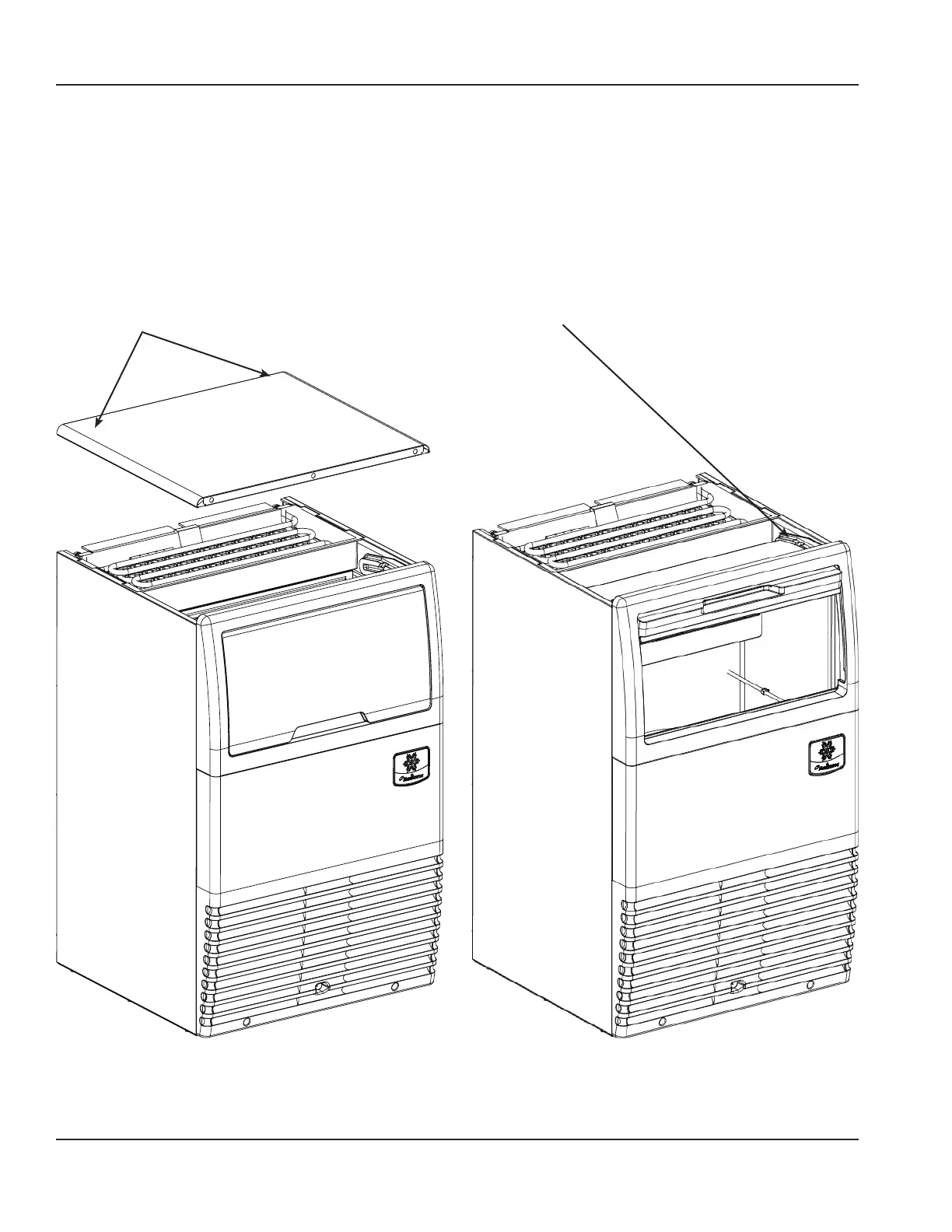

SUMP DRAIN OVERFLOW TUBE
The sump drain overflow tube is located in the evaporator
water sump.
1. Remove shutters and ice chute.
2. Lift spray bar or disconnect and remove for easiest
access.
3. Pull up on over flow tube to remove.
4. To replace plug, insert in hole, and push with force to
make a tight seal.
Overow Tube
