Item
Item #
Quantity
Water Heater
A
1
Installation and Operation Manual
B
1
Expansion Bolts
C
5
Seal Ring
D
5
Self-tapping Screw
E
4
Expansion Anchors F 4
Vent Adaptor (AL-0303A) G 1
Vent Adaptor (AL-0303B)
H
2
A. Water Heater
B. Installation and
Operation Manual
C. Expansion Bolts
D. Seal Ring
E. Self-tapping Screw
F. Expansion Anchors
G. Vent Adaptor
(AL-0303A)
H. Vent Adaptor
(AL-0303B)

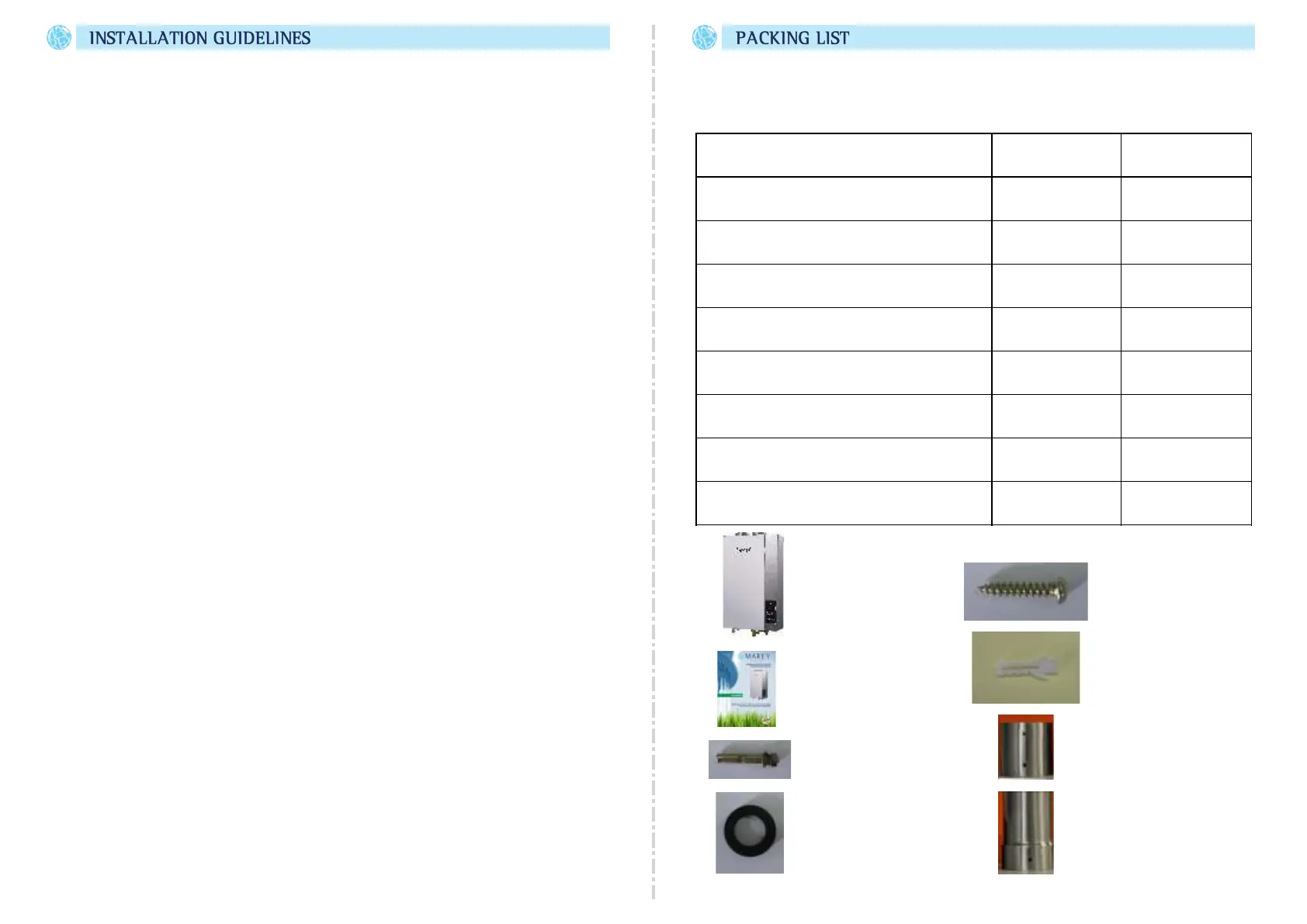

The following contents are included. If any items are missing contact authorized
after sales service.
Only properly qualified personnel should install this equipment. Improper
installation or installation by a non-qualified installer may void warranty. Failure to
comply with state and local codes pertaining to water heater installations may void
also warranty.
GA16ETL water heaters are suitable for installation as a single standalone unit or in
installations involving combinations of multiple units (i.e. parallel or series). These
guidelines are for the installation of a single unit. Please contact authorized service
center for multiple device connection assistance.
This appliance shall NOT be installed outdoors.
A qualified installer or service technician should inspect and leak test system before
use.
The installation must comply with local codes. In the absence of local codes the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane
Installation Code, CSA B149.1 shall prevail.
The appliance must be electrically grounded in accordance with local codes. In the
event there are no local codes, the National Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code, CSA C22.1 shall prevail.
Maximum inlet gas pressure must not exceed the value specified by the
manufacturer and that the minimum value listed is for purposes of input adjustment.
Disconnect the heater and the heater main gas valve from the gas supply piping
system during any pressure testing. Isolate the heater from the gas supply piping
system by closing the inlet manual shutoff valve. The gas pressure will be between
these values 3.5 in W.C. (870 Pa) 10.5 in W.C. (2610 Pa) for Natural Gas and 8.0 in
W.C. (1990 Pa) 13.0 in W.C. (3230 Pa) for Liquid Propane.
The appliance should be located in an area where water leakage of the unit or
connections will not result in damage. Take precaution by properly installing a drain
pan under the heater if required to protect area where leakage would travel.
Do not obstruct the combustion air intake or heater exhaust and ensure air intake is
not near an area that will allow chemical fumes to enter the combustion air system.
Do not use to heat pools or spas (hot tubs) that uses chemically treated water.
If a water heater is installed in a closed water supply system, special precautions are
required such as installation of a backflow preventer and allowance for thermal
expansion. Consult an authorized professional for proper installation requirements.
