The video display gauges are programmed to perform multiple scans, read-outs and readings for the operator. Because they are more
complex than a single-action gauge, it is important for the boat operator to carefully review the functionality prior to rst-time operation. The
display information can be critical to safe and enjoyable operation of the boat!
ProStar 190, ProStar 197, X-7, X-1
(Standard)

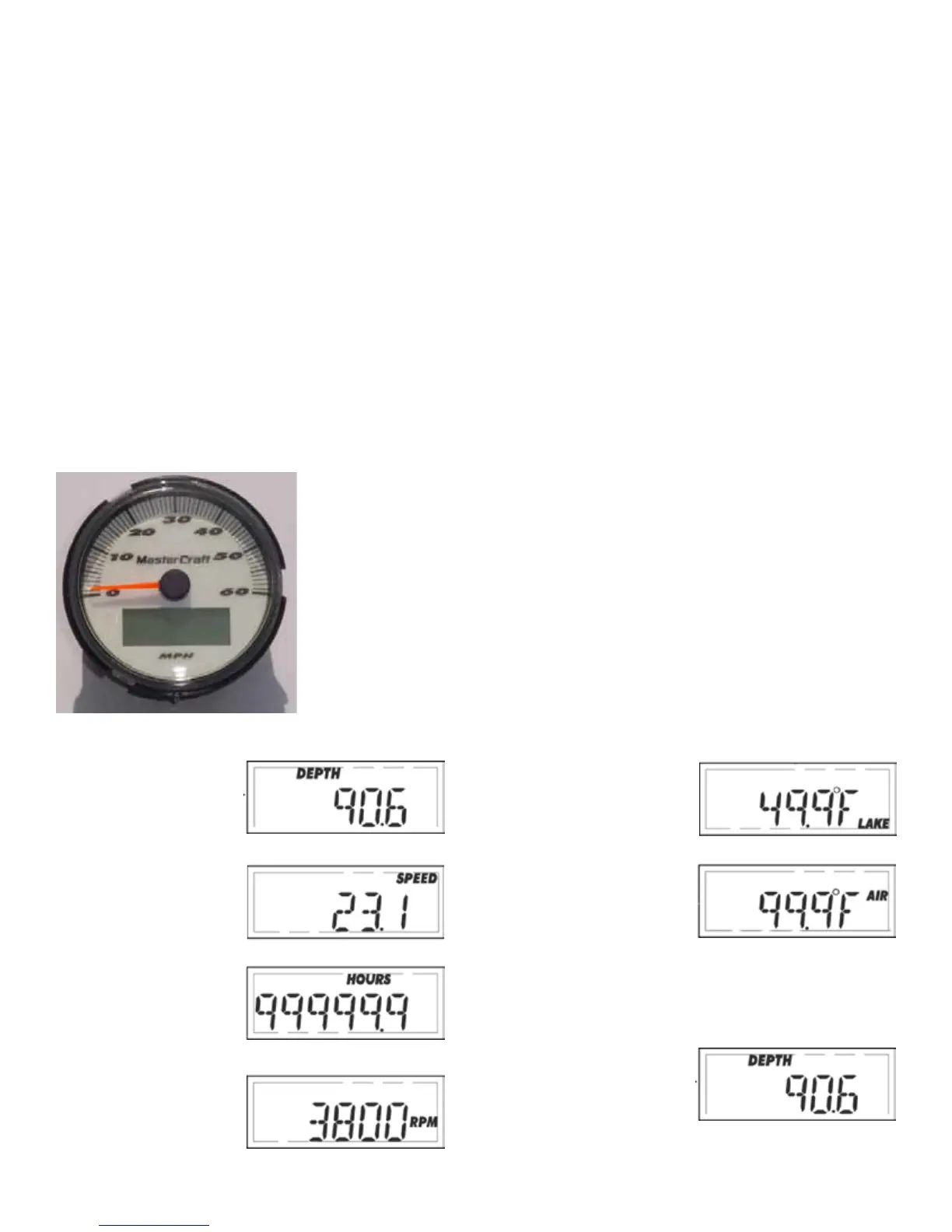

This video display in this gauge is the alpha-numeric data provided in lower half of the gauge,
through which the boat operator can toggle for performance and convenience information. Navigating
the LCD displays is simple and intuitive. The various screens may be accessed in a sequential order by
repeatedly pressing the external display button UP/DOWN to scroll through the available screens in a
continuous loop. Note that the depth, air temperature and water temperature screens are hidden
when no sensor is connected.
Video
Display
Gauges
This section discusses the video display gauges. On some models,
information is provided via traditional gauges and switches. On many
models, however, this information (as well as some convenience and
support data described elsewhere in this owner’s manual) is given
through a video display gauge. Several dierent video display gauges
are mounted in the boats, depending on the model. General descrip-
tion of the functionality of the performance controls appeared in the
previous section. Please note that some renement of these gauges
was in progress at press time. Therefore, the gauge in your boat may
have some minor variances to what is described in this manual. Mas-
terCraft strongly encourages you to review ALL instrumentation with
your authorized MasterCraft dealer prior to operating the boat for the
rst time, and at any time during ownership of the boat if you are un-
certain as to proper and applicable functionality.
The basic display sequence is:
Depth
Speed
Hours
RPM
Water (Lake) Temperature
Ambient (Air Temperature
Additional Functionality:
Setting the Shallow Alarm
• TheShallowAlarmDefaultis
set to OFF (0.0 ft/m).
• ScrolltotheDepthdisplay.
• Hold the external display
button down for three (3)
seconds, or until the alarm set
MasterCraft 2012 Owners Manual • Guide to Individual Models • Page 2-37
