66
9.13 FAN REPLACEMENT
CHAPTER 9: PARTS REPLACEMENT GUIDE

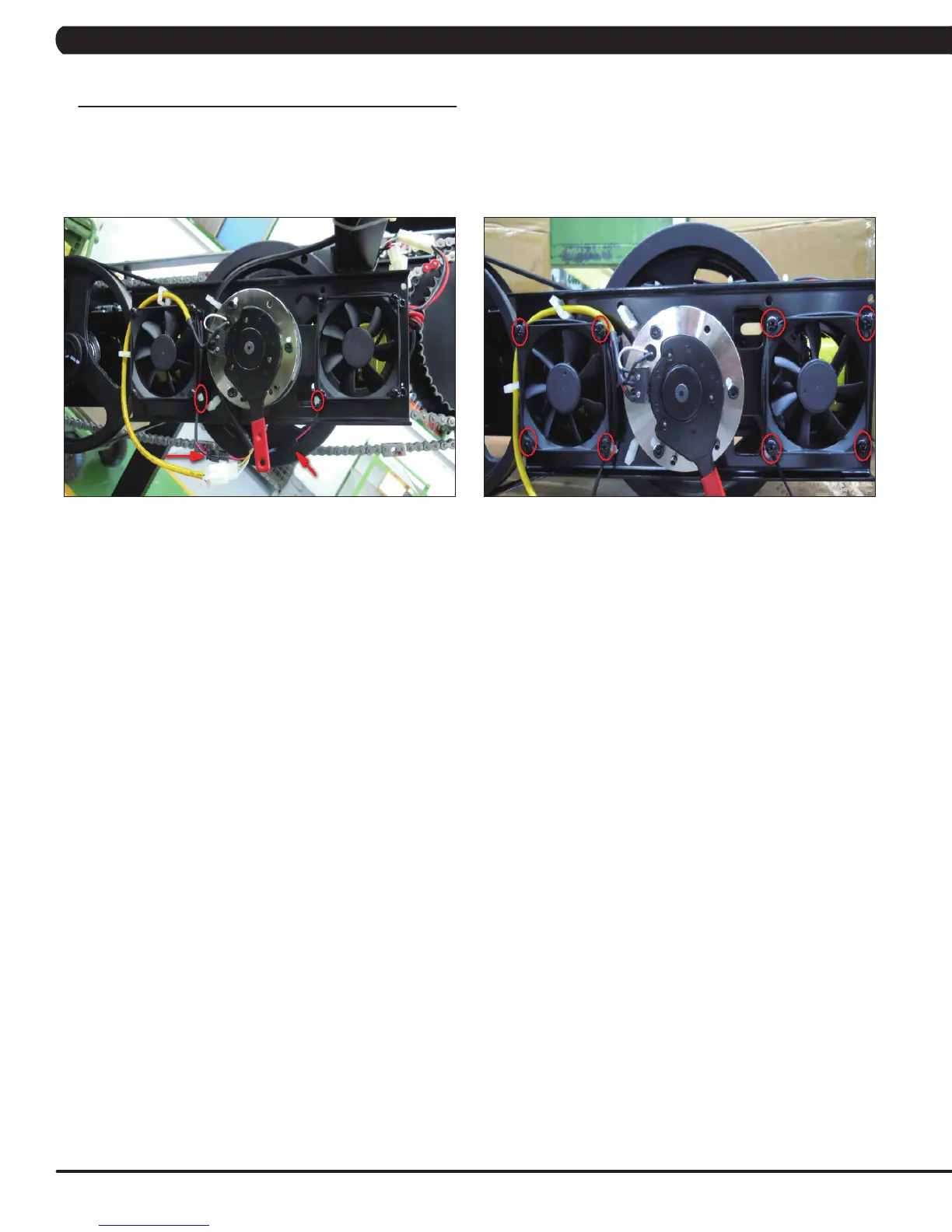

FIGURE A FIGURE B
1) Turn off the power and disconnect the cord from the machine.
2) Remove the Matrix logo covers from each side of the machine.
3) Turn the brake lever to the right to lock the stairs and prevent movement that could cause injury.
4) Disconnect the both fan wire connections and remove cable ties holding the fan and fan wire to the plate (Figure A).
5) Remove the 4 screws holding the fan to the drive set (Figure B) and remove the assembly. NOTE: BEFORE REMOVING THE FAN, BLOCK
THE STAIRS FROM ROTATING (place a block under the bottom stair) TO PREVENT INJURY.
6) Reverse Steps 1-5 to install a new fan.
7) Test the Climb Mill for function as outlined in Section 9.20.
