26
7.2 CONSOLE REPLACEMENT
1) Remove the 4 screws holding the console to the frame (Figure A & B).
2) Disconnect the console cable, HR, and level wire connections from the defective console and remove the console (Figure C).
3) Reinstall the wire connections to the new console.
4) Carefully push the wires into the console and mast until they are clear of the console / mast connection and attach the new console to the
mast using the 4 screws you removed in Step 1.
5) Test the elliptical trainer for function as outlined in Section 7.21.

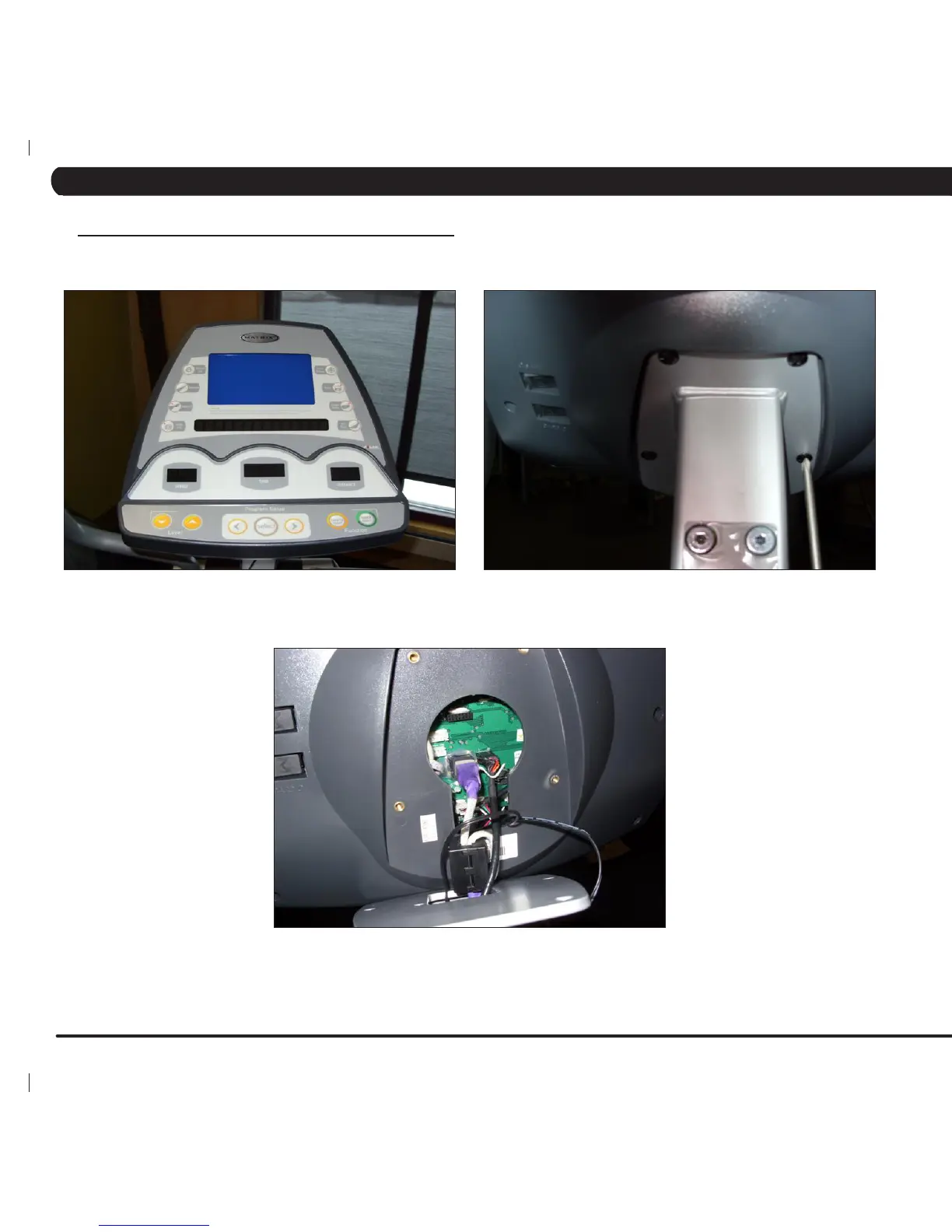

FIGURE A FIGURE B
FIGURE C
CHAPTER 7: PART REPLACEMENT GUIDE
