Matrix E1X Service Manual

44
7.16 LINK ARM REPLACEMENT
CHAPTER 7: PART REPLACEMENT GUIDE

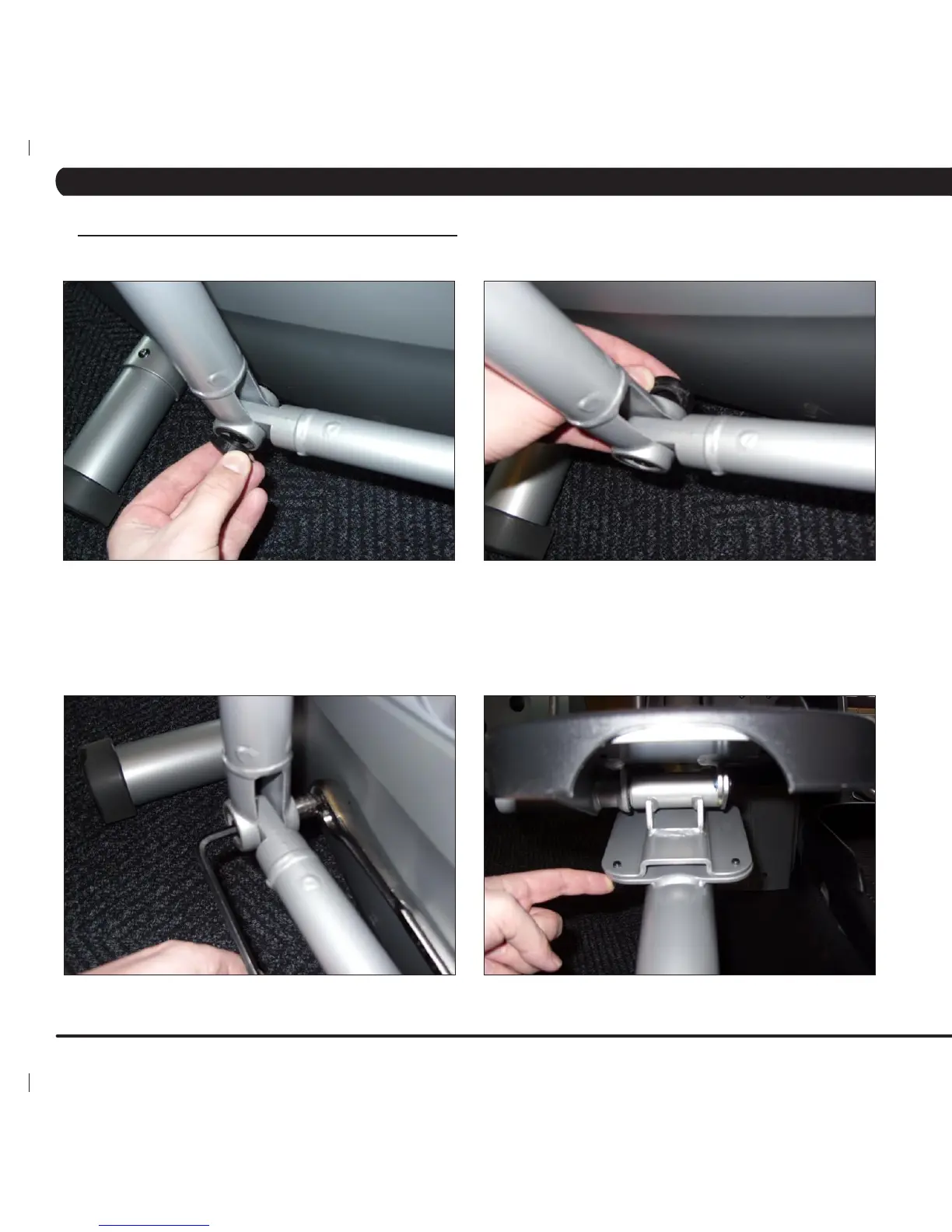

1) Remove the two caps covering the screw / nut holding the dual action handlebar to the link arm (Figure A & B).
2) Remove the screw / nut holding the dual action handlebar to the link arm (Figure C). This will allow one side of the link arm to be moved
away from the dual action handlebar.
3) Remove the 4 screws holding the link arm assembly to the pedal arm (Figure D).
FIGURE A FIGURE B
FIGURE C FIGURE D
