9.1 MOTOR COVER REPLACEMENT

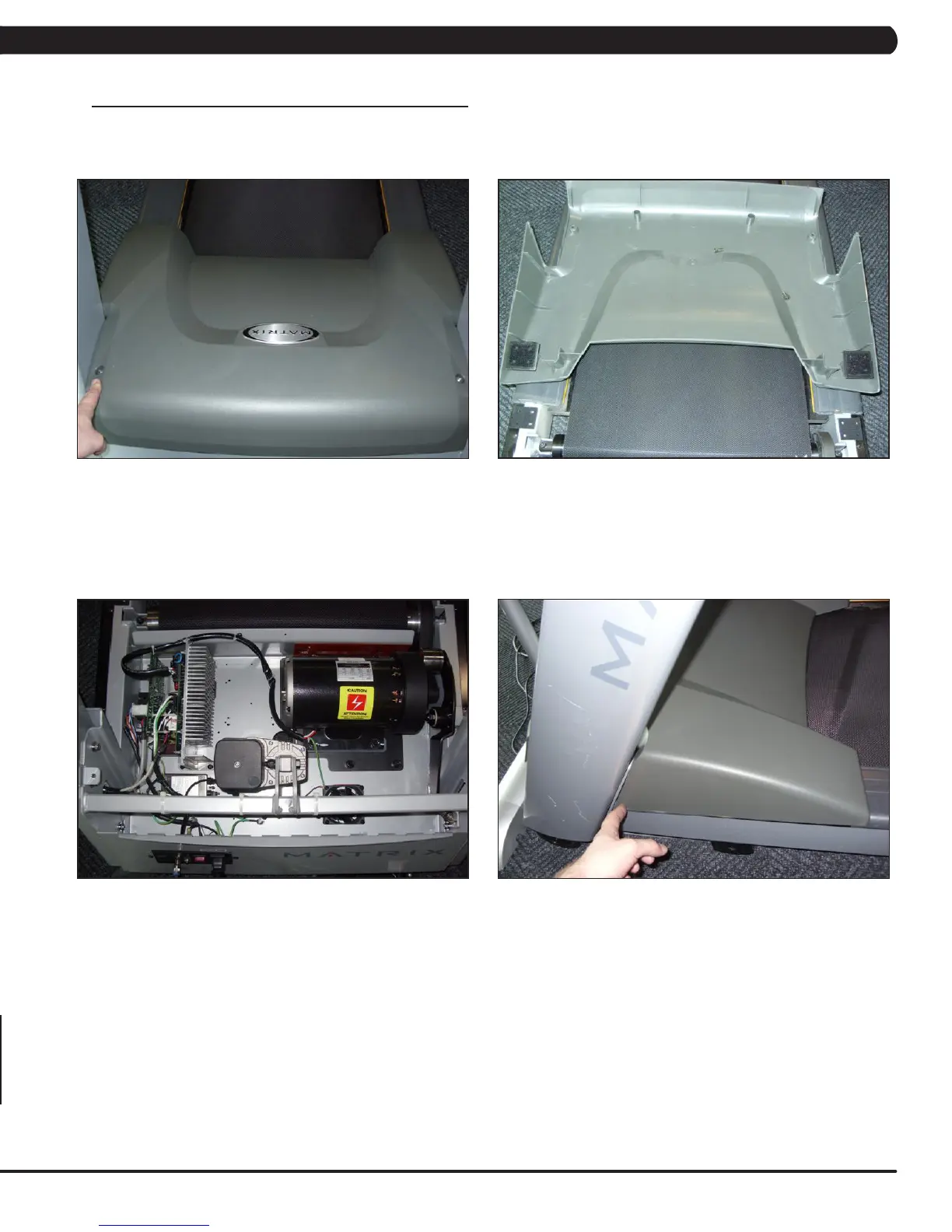

1) Use a 6mm Allen wrench to remove the 2 screws holding the motor cover to the frame (Figures A).
2) The motor cover is velcroed to the frame, so you will have to pull up with some force (Figure B).
3) Figure C shows the motor area with the cover removed.
4) Reverse Steps 1-2 to install a new motor cover. NOTe: When reinstalling the motor cover, be sure to tuck the sides in so they do not bow
outward (Figure D).
FIGURE A FIGURE B
FIGURE C FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
