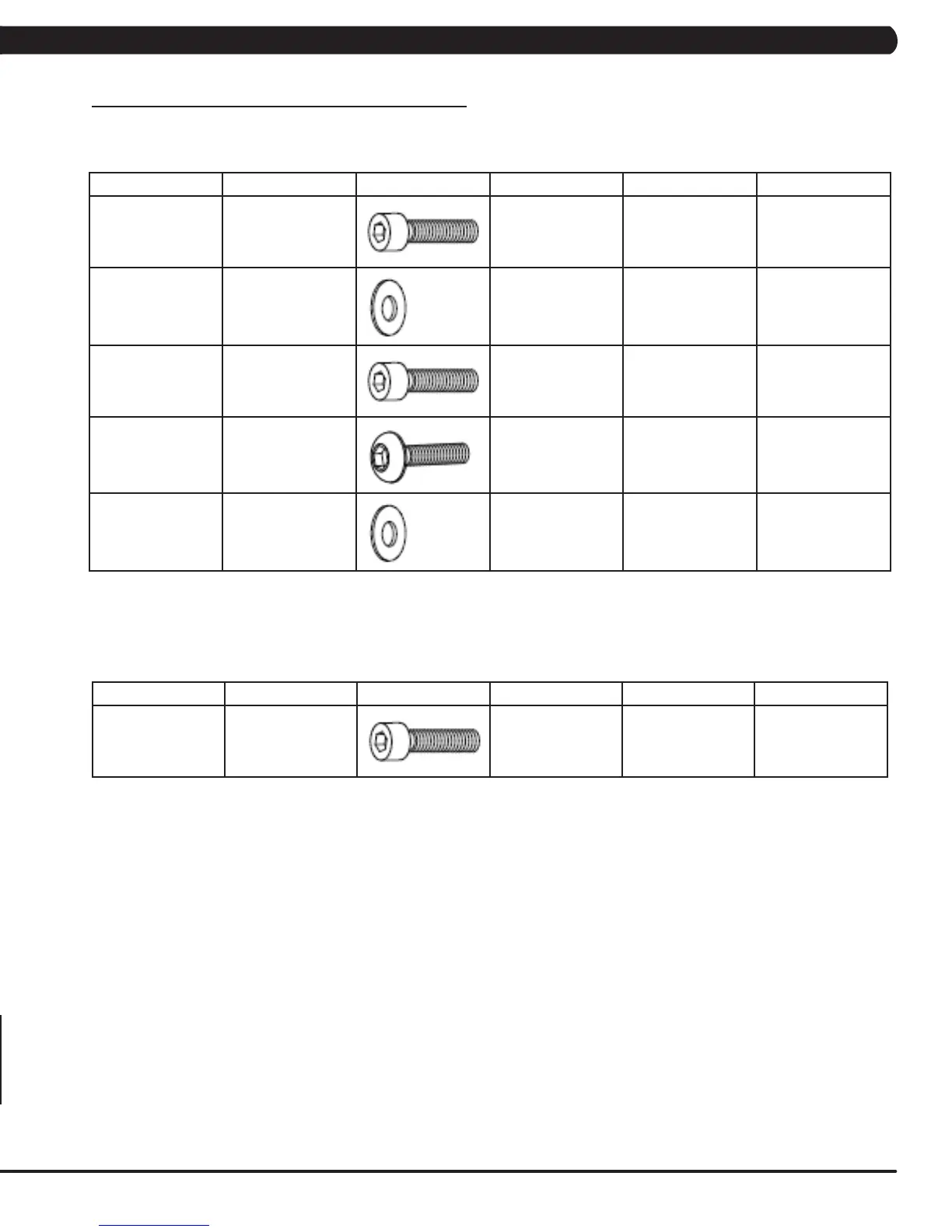

10.2 FASTENERS AND ASSEMBLY TOOLS
FRAME SET
PART # PART NAME DIAGRAM SPECIFICATION QUANTITY COLOR
11 Hex Head Cap Screw M8 x 1.25P x 25L 8 Blue
12 Flat Washer 8.2 x 19 2.0t 8 Blue
13 Hex Head Cap Screw M8 x 1.25P x 15L 6 Black
14 Button Head Screw M8 x 1.25P x 25L 6 White
15 Flat Washer 8.2 x 19 x 2.0t 6 White
CONSOLE SET
PART # PART NAME DIAGRAM SPECIFICATION QUANTITY COLOR
41 Hex Head Cap Screw M8 x 1.25P x 40L 4 Yellow
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE

Matrix T1xe-02(AC) Specifications

General

Brand	Matrix
Model	T1xe-02(AC)
Category	Treadmill
Language	English
