Matrix T1xe-02(AC) User Manual

49

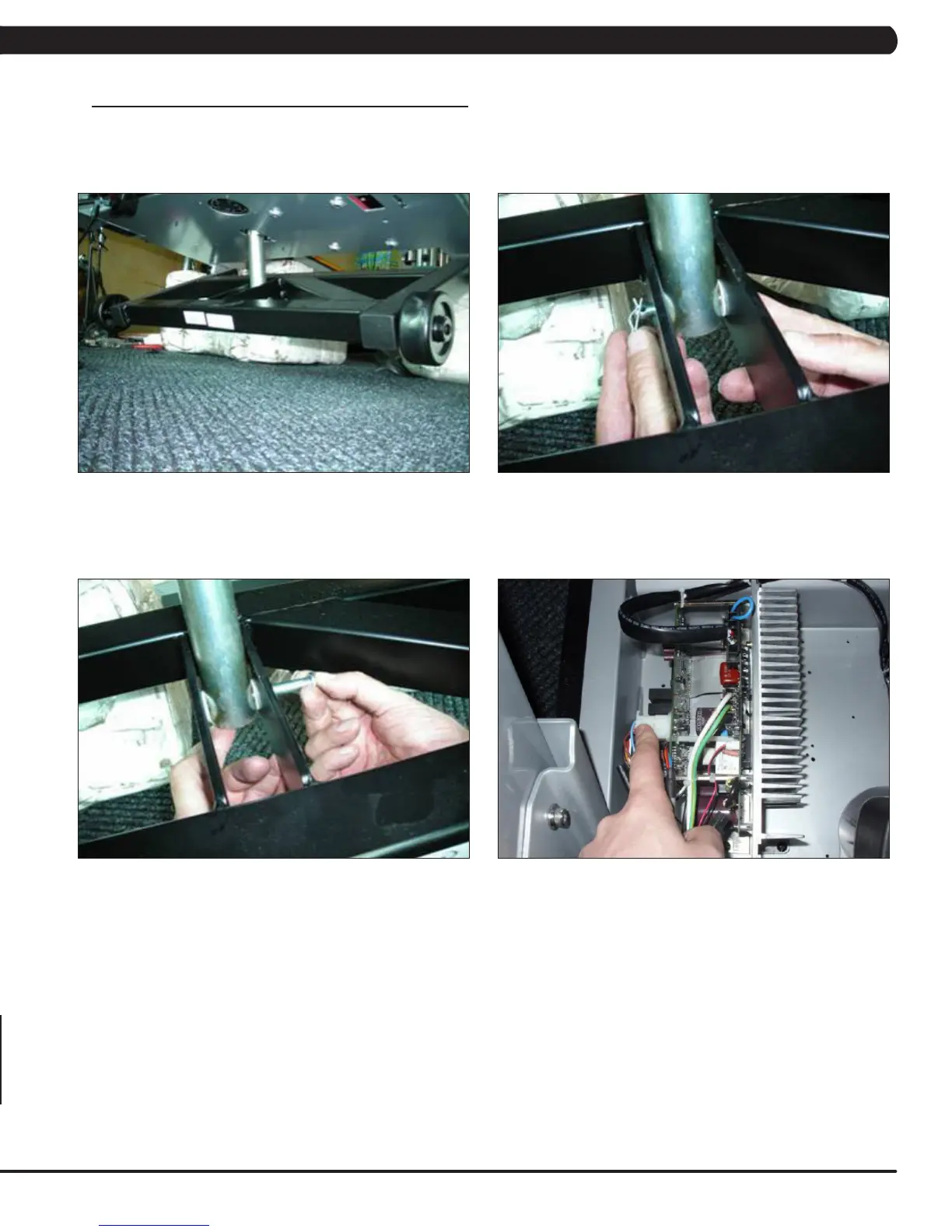

9.11 INCLINE MOTOR REMOVAL
FIGURE A
FIGURE B
1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the motor cover as outlined in Section 9.1.
3) Lift the treadmill and support it so that the front wheels are off the floor, or the unit may be tipped on its side (Figure A).
4) Remove the cotter pin from the elevation rack pin (Figure B).
5) Remove the elevation rack pin (Figure C).
6) Disconnect the incline motor power cable from the MCB (Figure D).
FIGURE C FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
