9.2 REAR ROLLER REPLACEMENT
1) Remove one of the rear end caps using a Phillips screwdriver (Figure A).
2) Use an 8mm Allen wrench to remove both roller adjustment screws (Figure B).
3) Remove the rear roller from the running belt (Figures C & D).
4) Reverse Steps 1-3 to install a new rear roller.
5) Test the treadmill for function as outlined in Section 9.21.

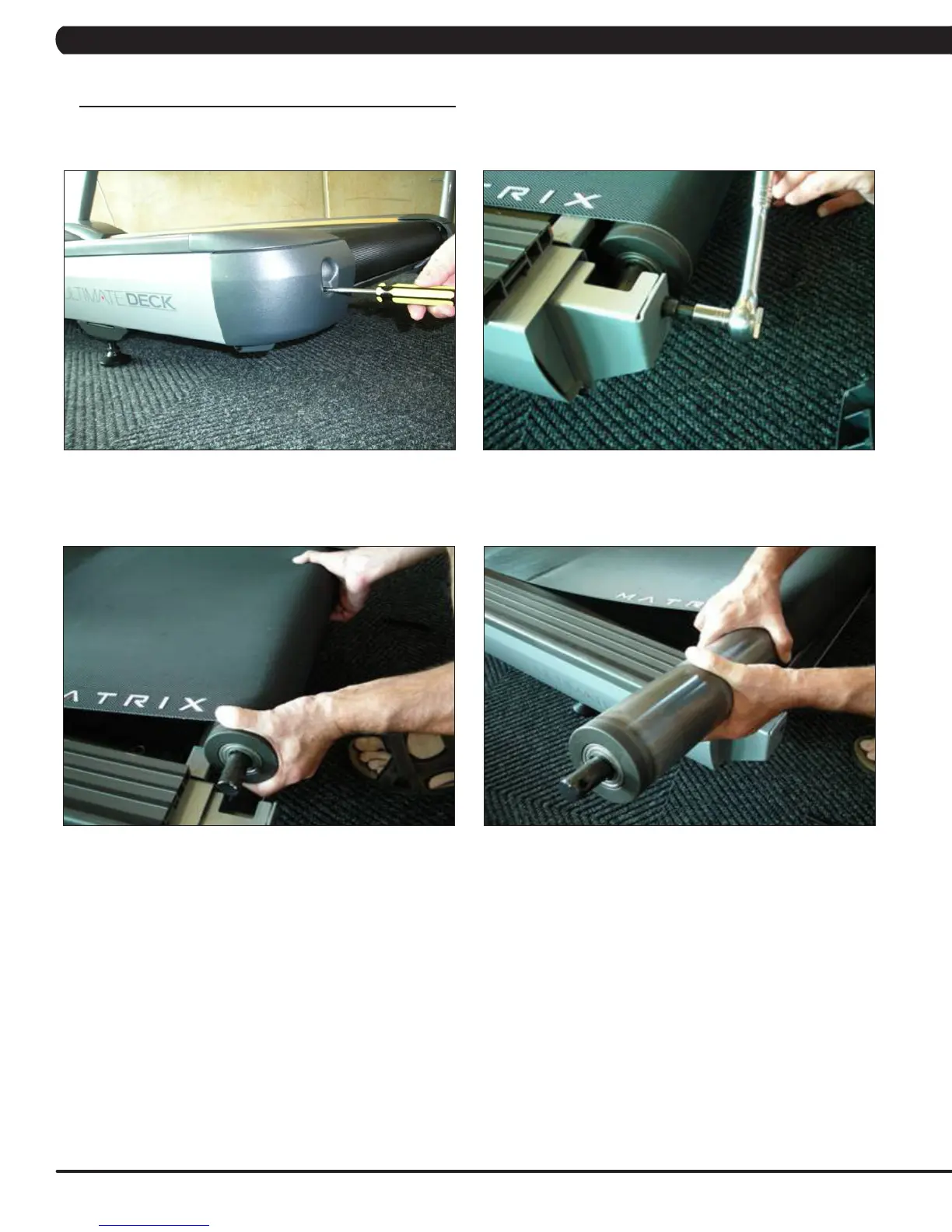

FIGURE A FIGURE B
FIGURE C FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
