Matrix VS-S74 User Manual

15
16
14
15
13
12
10
21
20
11
18
10
19
17
Torque item 15 to: 77 N-m/57 ft-lbs
Torque item 17 to: 16 N-m/15 in-lbs.
Locate threaded end up
ASSEMBLY

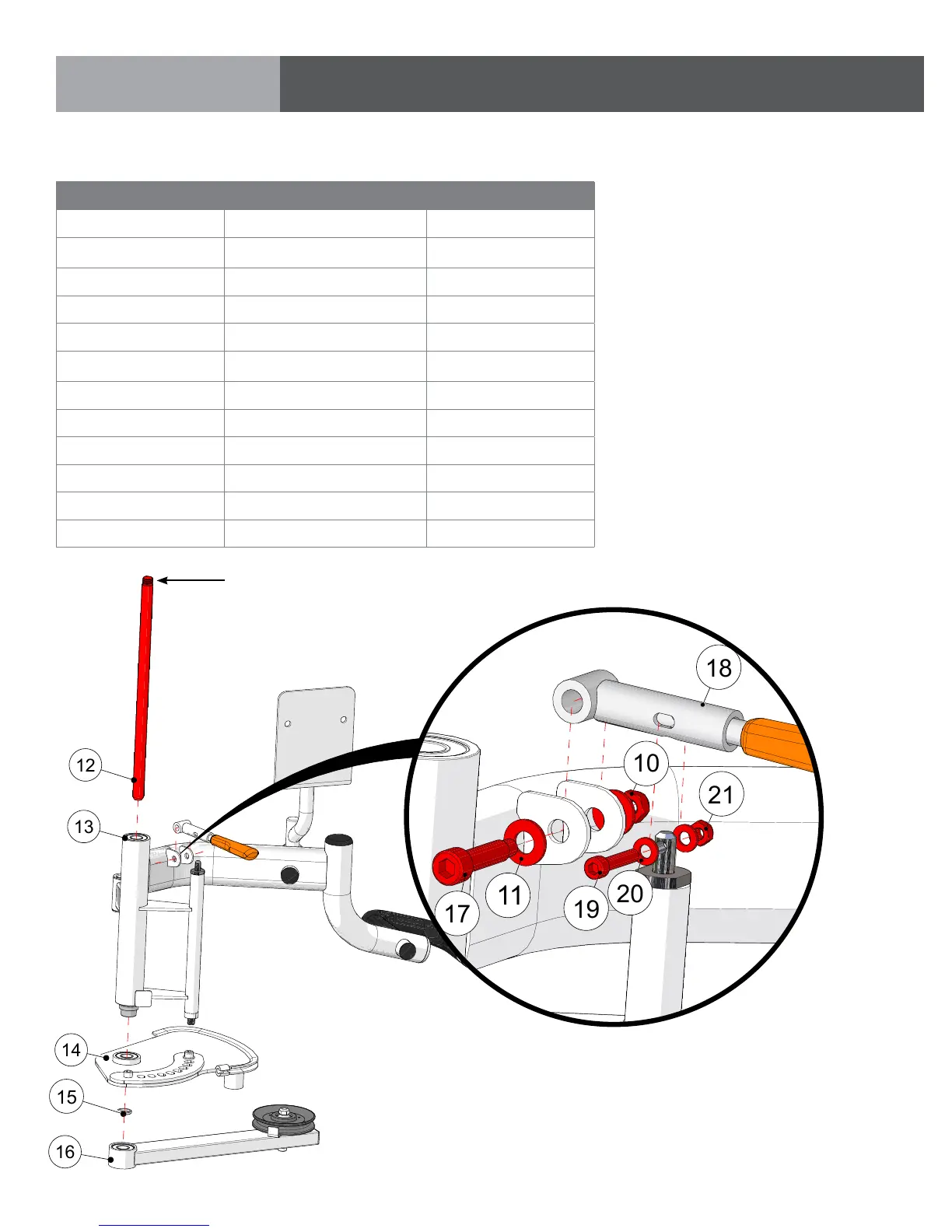

STEP 1 | RIGHT ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 4: RIGHT ARM ASSEMBLY
ID DESCRIPTION QUANTITY
10 M8 Nylock Nut 1
11
M10 Flat Washer (Ø20 mm)
2
12 Axle 1
13 Right Arm Assembly 1
14 CAM 1
15
Spacer (Ø26.5 mm)
1
16 Swingarm Assembly 1
17 M8 Special Bolt 1
18 ROM Handle Assembly 1
19 M6 X 25L SHC 1
20 M6 Flat Washer 2
21 M6 Nylock Nut 1
