35

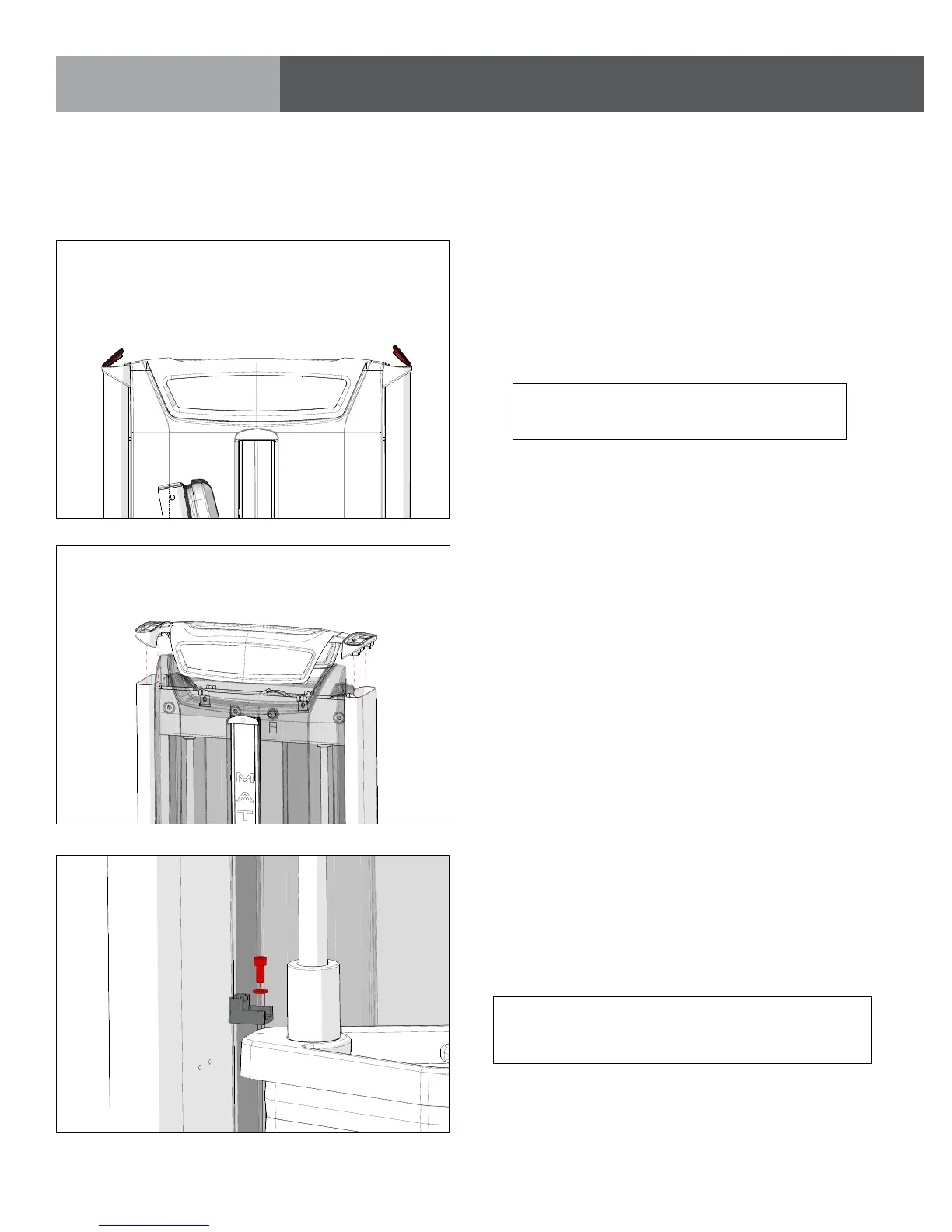

STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES
PART 12: PREMIUM KIT ASSEMBLY
1. Remove the (2) top cap covers (Item 59) using a flat
blade screw driver.
2. Remove the (4) M8 bolts and 20 mm diameter washers
that hold the top cap to the weight stack frame.
3. Remove top cap and rear shroud.
4. Assemble the Repetition Counter magnet holder
to the headplate using the M5 X 12L bolt and M5
washer provided with the kit.
Top cap covers, 20 mm diameter washers
& M8 screws can be discarded
Rep Counter - Magnet
ASSEMBLY
Holder must be mounted on thes same side of the
weight stack as Rep Counter
To Next Page
