Matrix VS-S74 User Manual

18
ID DESCRIPTION QUANTITY
2 M10 Nylock Nut 2
4 M10 Flat Washer 3
10 M8 Nylock Nut 1
26 M10 X 15L SHC 2
27 M8 Flat Washer 2
28 M8 X 15 BHC 1
29 M10 X 55 BHC 1
30 M8 X 20 BHC 1
31 Foot Plate 1
32 Spacer (Ø16 mm) 1
33 Pulley 1
34 Cable Keeper 1

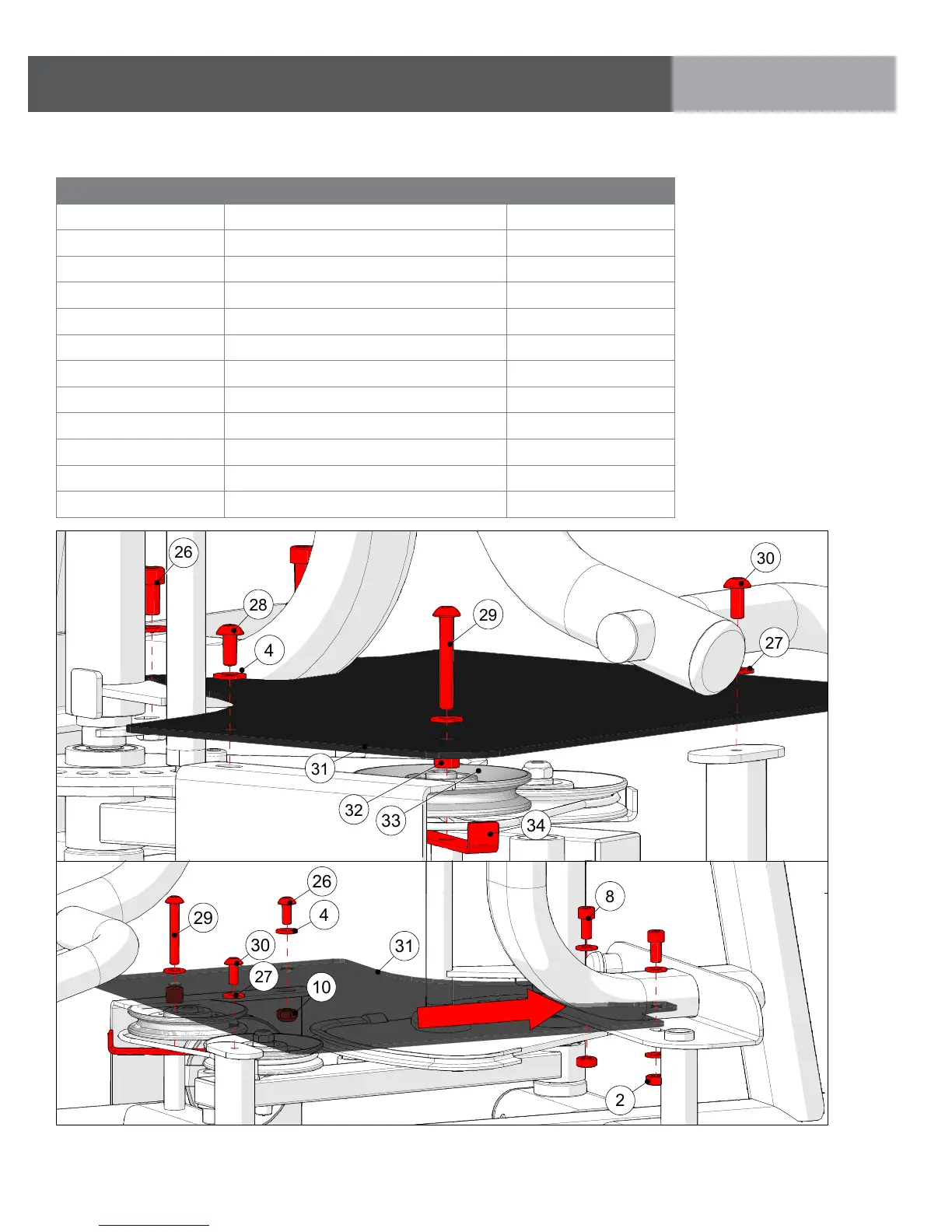

PART 5: FOOT PLATE/CABLE ASSEMBLY
STEP 1 | FOOT PLATE/CABLE ASSEMBLY INSTRUCTIONS & NOTES
ASSEMBLY
Torque item 26 to:
77 N-m/57 ft-lbs.
Torque item 29 to:
58 N-m/43 ft-lbs.
Torque items 28 & 30 to:
29 N-m/22 ft-lbs.
26
31
4
28
33
29
32
34
30
27
26
4
31
10
8
29
2
30
27
