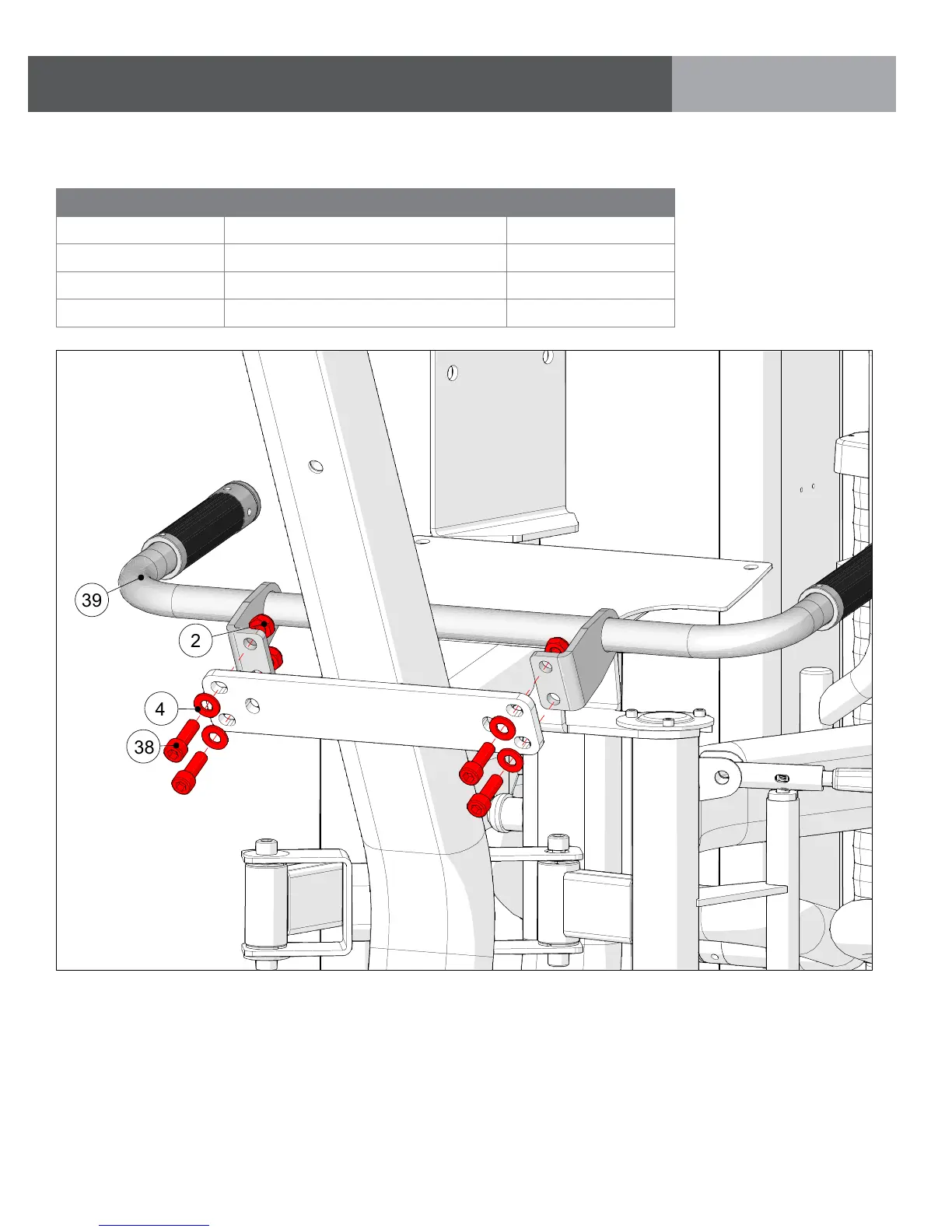

STEP 1 | HANDLEBAR ASSEMBLY INSTRUCTIONS & NOTES
Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.
ASSEMBLY
PART 8: HANDLEBAR ASSEMBLY
ID DESCRIPTION QUANTITY
2 M10 Nylock Nut 4
4 M10 Flat Washer 4
38 M10 X 30L SHC 4
39 Handlebar Assembly 1
39
2
4
38
