English--- 20
115432326 Rev. 4 2/17/12

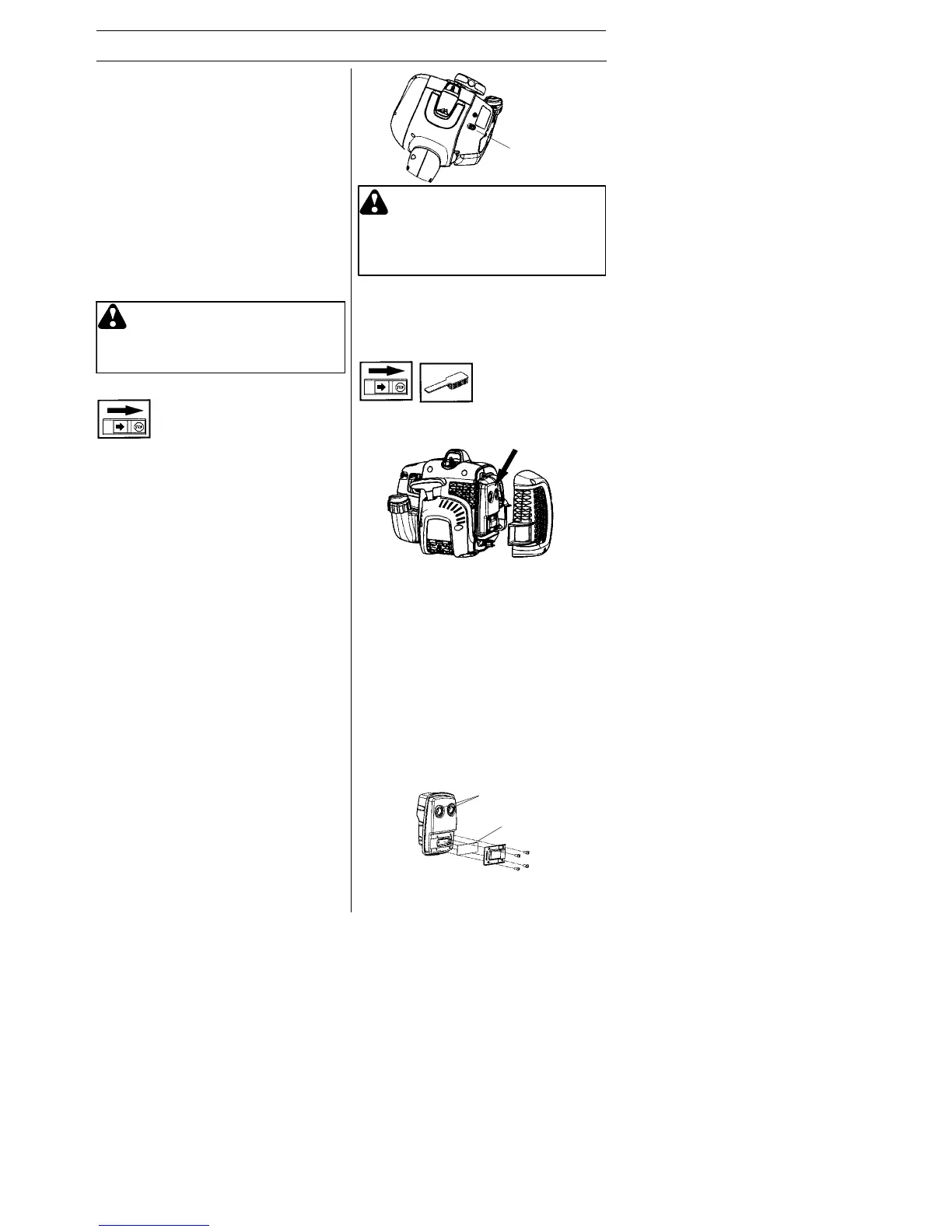

MAINTENANCE
Muffler
CAUTION! Muffler is fitted with a catalytic
convertic designed to reduce harmful
exhaust gases.
The muffler is designed to reduce the noise
level and to direct the exhaust gases away
from the operator . The exhaust gases are
hot and can contain sparks, which may
cause fire if directed against dry and com-
bustible material.
Mufflers are equipped with a special spark
arrestor mesh. You should clean the mesh
at least once a month. This is best done
withawirebrush.If the mesh is damaged
it should be replaced. Ifthemeshisfre-
quently blocked, this can be a sign that the
performance of the catalytic converter is
impaired. Contact your dealer to inspect
the muffler. A blocked mesh will cause the
machine to overheat and result in damage
to the cylinder and piston.
Carburetor
Your McCulloch product has been designed
and manufactured to specifications that re-
duce harmful emissions. After the engine
has used 8--10 tanks of fuel, the engine
will be run--in. To ensure that it continues to
run at peak performance and to minimize
harmful exhaust emissions after the run--in
period, ask your servicing dealer to adjust
your carburetor.
The owner is responsible for the per
or-
mance of all required maintenance as
defined in the operator’s manual.
W ARNING: The complete clutch,
clutch cover , and shaft must be
fitted before the machine is started,
otherwise parts could come loose
and cause personal injury .
Function
S The carburetor governs the engine’s
speed via the throttle control. Air and fuel
are mixed in the carburetor .
S The T--screw regulates the throttle setting
at idle speed. If the T--screw is turned
clockwise this gives a higher idle speed;
turning it counterclockwise gives a lower
idle speed.
Basic setting
S The basic carburetor settings are ad-
justed during testing at the factory . Fine
adjustment should be carried out by a
skilled technician.
Recommended idle speed:
See “Technical data” section.
Recommended max. speed:
See “Technical data” section.
Fine adjustment of the idle speed--T
Adjust the idle speed using the idle adjust-
ment screw--T if it is necessary to readjust.
First, turn the idle adjustment screw--T
clockwise until the cutting attachment starts
to rotate. Then, turn the screw counter-
clockwise until the cutting attachment stops.
The idle speed is correctly adjusted when
the engine will run smoothly in every posi-
tion. The idle speed should also be well
below the speed at which the cutting attach-
ment starts to rotate.
CAUTION! If the cutting attachment rotates
when the engine is idling the idle adjustment
screw T should be turned counterclockwise
until the cutting attachment stops.
Idle Speed
Screw--T
WARNING: If the idle speed can-
not be adjusted so that the cutting
attachment stops, contact your ser-
vicing dealer. Do not use the ma-
chine until it has been correctly ad-
justed or repaired.
Unit/Maintenance Safety
Disconnect the spark plug before perform-
ing maintenance, except carburetor adjust-
ments.
Muffler bolts
CAUTION! Never use a machine that has
a faulty or loose muf fler. Ensure the muffler
bolts are tight.
Spark arrestor mesh
To Next Page
