Use the MODE SELECTOR to:
Listen to normal stereo (4 following and
page 16).
Reverse the left and right arrangement of
musical instruments (3 following and page
12).
Balance the amplifiers and loudspeakers
in a stereo system (6 and 7 following and
page 11).
Listen to monphonic sound (1 and 2
following and page 13).
Listen thru both loudspeakers to either
track of a stereo program source.
Turn the MODE SELECTOR to:
1. L TO L & R: connects the "left" input to
both loudspeakers.
2. R TO L & R: connects the "right" input to
both loudspeakers.
3. STEREO REV: connects the "left" input to
the "right" loudspeaker and the "right"
input to the "left" loudspeaker.
4. STEREO: connects the "left" input to the
"left" loudspeaker and the "right" input
to the "right" loudspeaker.
5. MONO (L+R): adds the "left" input and
the "right" input and then connects the
L+R program to both amplifiers and loud-
speakers.
6. L+R TO L: connects the "left plus right"
programs to the "left" loudspeaker only.
7. L+R TO R: connects the "left plus right"
programs to the "right" loudspeaker only.
BASS CONTROLS
RIGHT
The LEFT and RIGHT BASS CONTROLS
regulate bass loudness to the left and right
speakers, respectively. Clockwise rotation in-
creases bass loudness; counterclockwise
rotation decreases bass loudness.
TREBLE CONTROLS
LEFT
RIGHT
The LEFT and RIGHT TREBLE CONTROLS
regulate treble loudness to the left and right
speakers, respectively. Clockwise rotation
increases treble loudness; counterclockwise
rotation decreases treble loudness.
3
Select any one of eight program sources
with this switch:
1. AUX: any auxiliary service requiring flat
amplification, such as a television set, is
connected to the C11 through this posi-
tion.
2. TAPE: any self-contained tape machine
(tape machine having its own playback
preamplifier) is connected to the C11
through this position.
3. TUNER 1: AM and FM outputs from a
stereo tuner or MPX FM program are con-
nected to the C11 through this position.
4. TUNER 2: same as TUNER 1.
5. PHONO 1: connects the C11 for stereo
and monophonic operation for records.
6. PHONO 2: same as PHONO 1.
7. MIC: stereo microphones are connected
to the C11 through this position.
8. TAPE HD: a tape deck that does not con-
tain its own playback preamplifier is con-
nected to the C11 through this position.

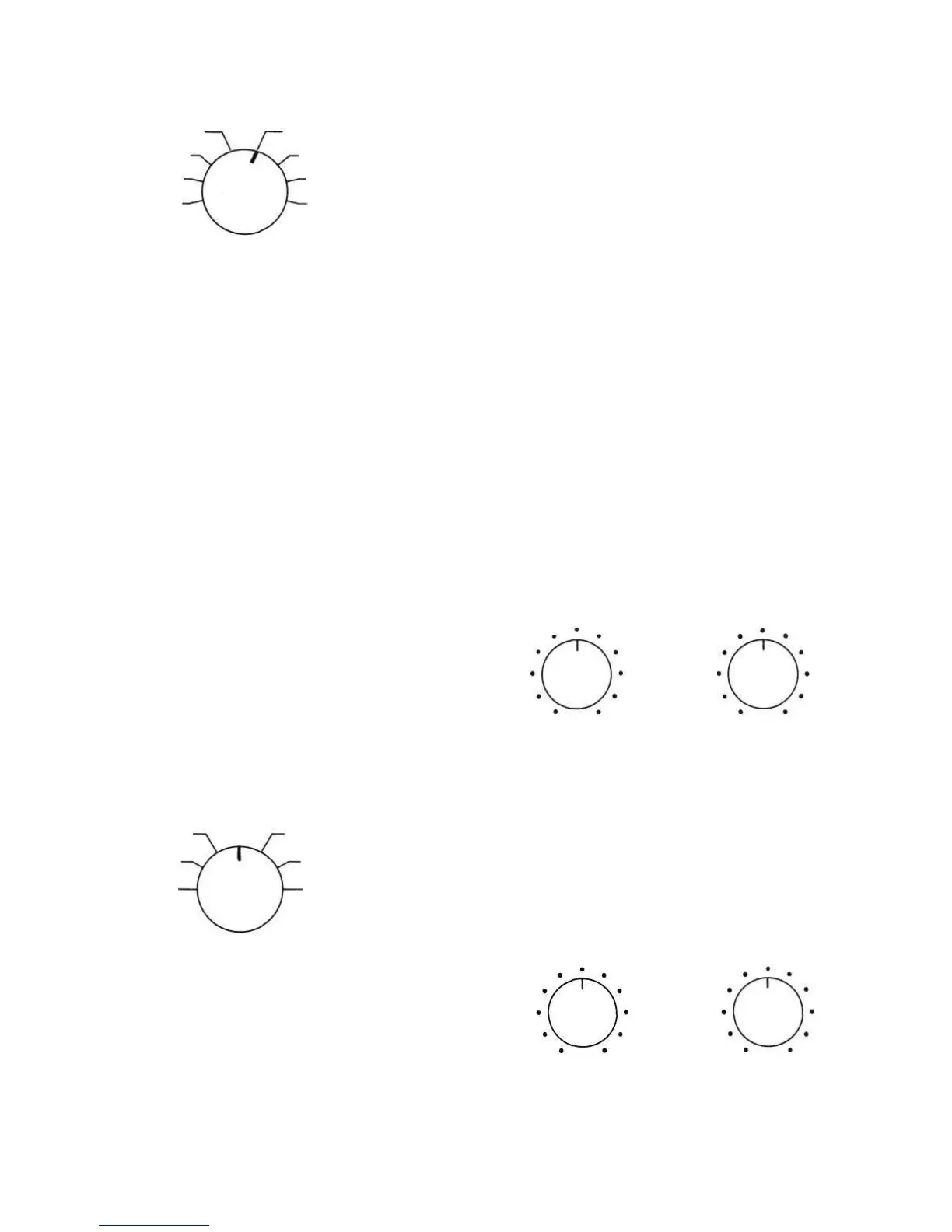

INPUT SELECTOR
INPUT SELECTOR
MODE SELECTOR
MODE SELECTOR
TREBLE CONTROLS
0
0
BASS CONTROLS
LEFT
0 0
STEREO REV
STEREO
MONO (L+R)
L+R TO L
L+R TO R
R TO L&R
L
TO L&R
TUNER 2
TUNER 1
TAPE
AUX
PHONO 1
PHONO 2
MIC
TAPE HD
