2.Installation wiring
This chapter introduces the installation and wiring of MTC-08-NT.
2.1 Mechanical installation
2.1.1 Installation location requirements
As shown in figure 2-1, MTC-08-NT shall be installed horizontally on the back panel of the electric cabinet,
installed up and down and maintaining the air space above and below it. Other direction installation is not
conducive to their own heat dissipation, for the improper installation. The distance between MTC-08-NT
and the equipment above and below or the cabinet wall should be greater than 15cm, and there should
be no heating equipment below.

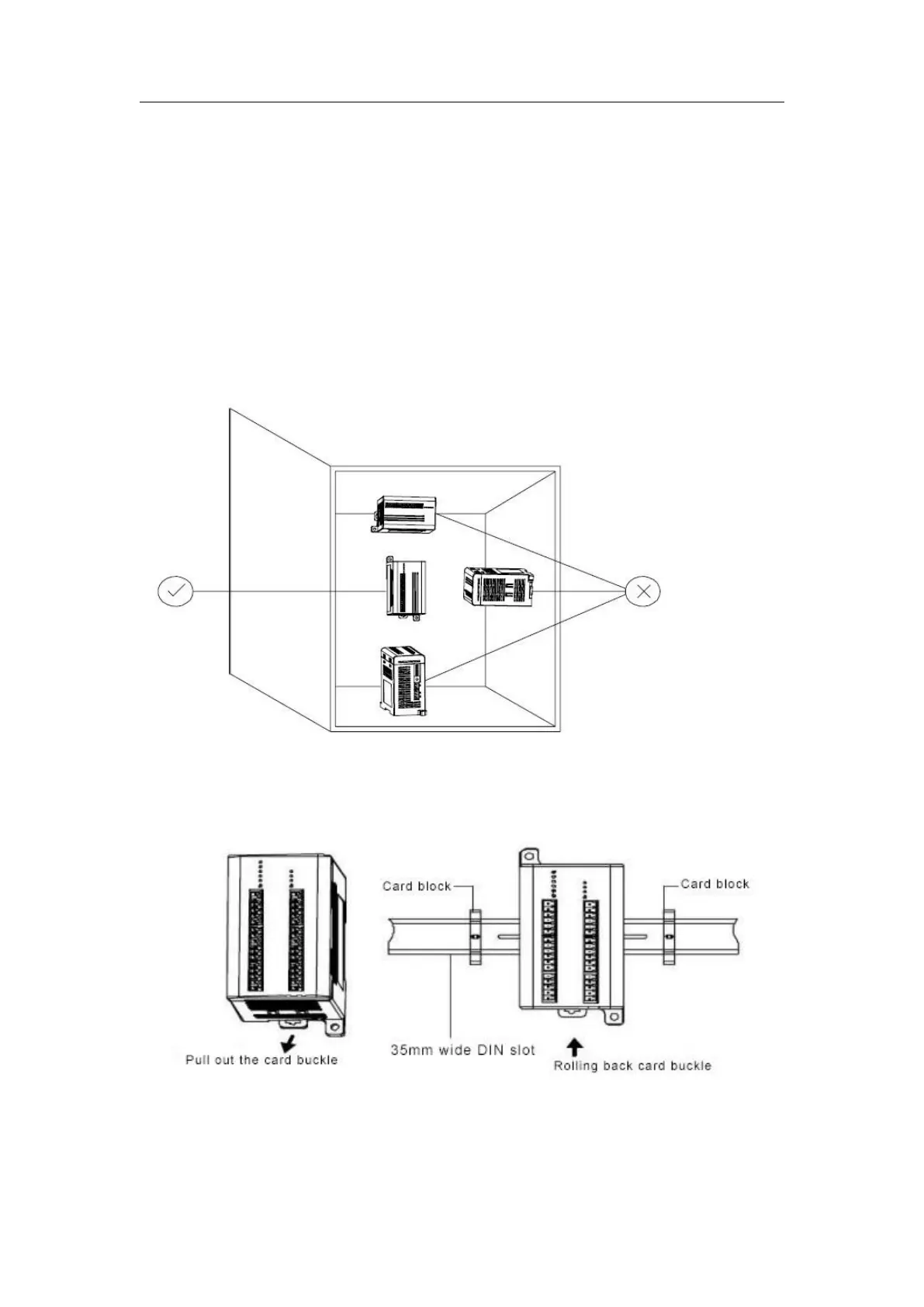

Figure 2-1 Installation location requirements
2.1.2 Installation step
Use DIN slot to install and fix
Generally, a 35mm width DIN slot can be used for installation, as shown in Figure 2-2.
Figure 2-2 Fixing with DIN slot
The specific installation steps are as follows:
1. Fix the DIN groove horizontally on the mounting back plate;
