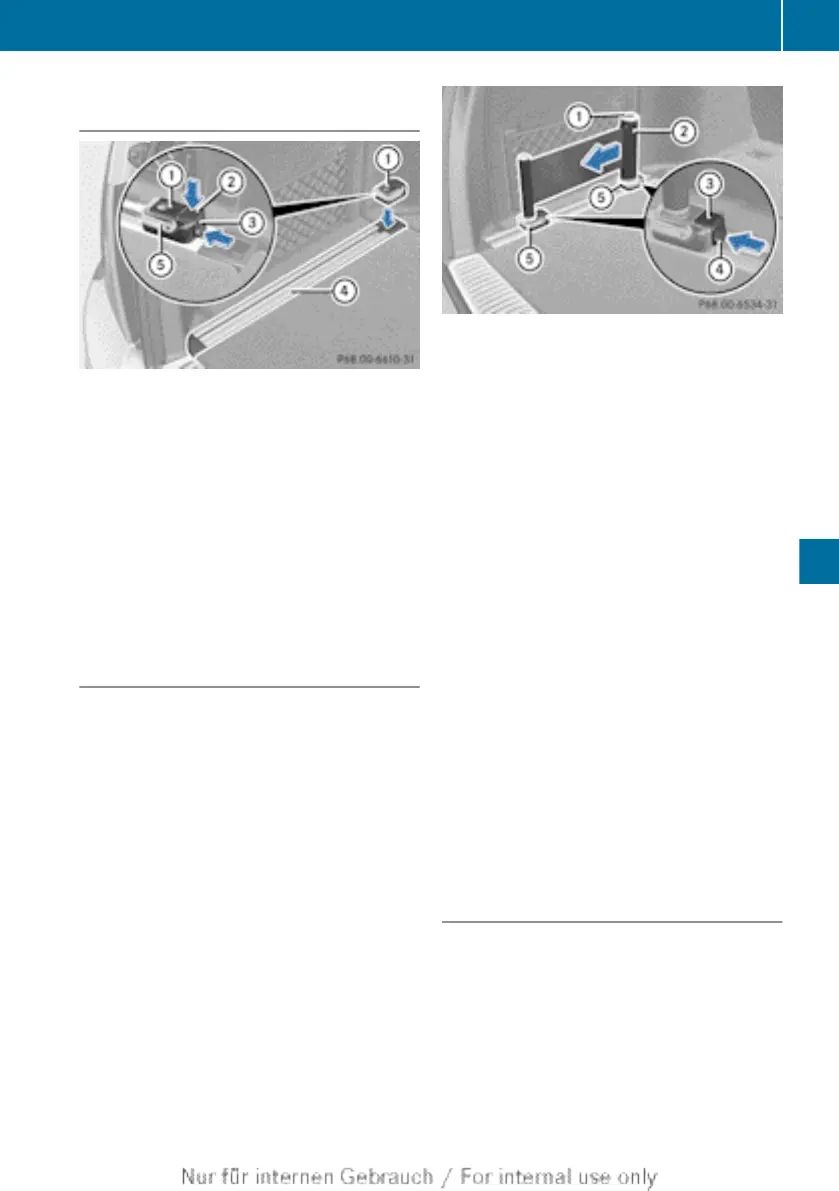

Inserting the brackets into the loading
rail
X
Insert bracket : into the centre of loading
rail ?.
X
Press release button ; and push
bracket : into the desired position in load-
ing rail ?.
X
Let go of release button ;.
X
Press locking button =.
Bracket : is locked in loading rail ?.
X
If necessary, fold lashing eyelet A
upwards.
Luggage holder
The luggage holder can be used to secure
light loads against the side wall of the luggage
compartment to prevent them from moving
around.
!
Only use the luggage holder to secure
loads with a maximum weight of 7 kg and
with dimensions that allow the loads to be
safely and securely retained by the luggage
holder.
X
To install: insert two brackets A into the
left or right loading rail (Y page 323).
X
Press release button : of luggage
holder ; and pull the strap out slightly.
X
Insert luggage holder ; into brackets A
and press down until it engages.
X
Press release button : of luggage
holder ; and pull the strap out in the
direction of the arrow.
X
Place the load between the strap and the
luggage compartment side wall.
X
Using one hand, press release button : of
luggage holder ;.
X
With your other hand, slowly let the strap
go until the load is secured.
X
Make sure that locking button ? on brack-
ets A is pressed.
This keeps brackets A in place on the
loading rail.
X
To remove: press release button = on
respective bracket A and remove luggage
holder ; by pulling upwards and out.
Telescopic rod
The telescopic rod can be used to secure the
load against the rear seats to prevent it from
moving around.
Stowage areas
323
Stowing and features
