The fuses are located in various fuse boxes:
R
Fuse box in the engine compartment on the
left-hand side of the vehicle, when viewed
in the direction of travel
R
Fuse box in the trunk
The fuse allocation chart is located in the
vehicle tool kit in the stowage compartment
under the trunk floor (Y page 292).

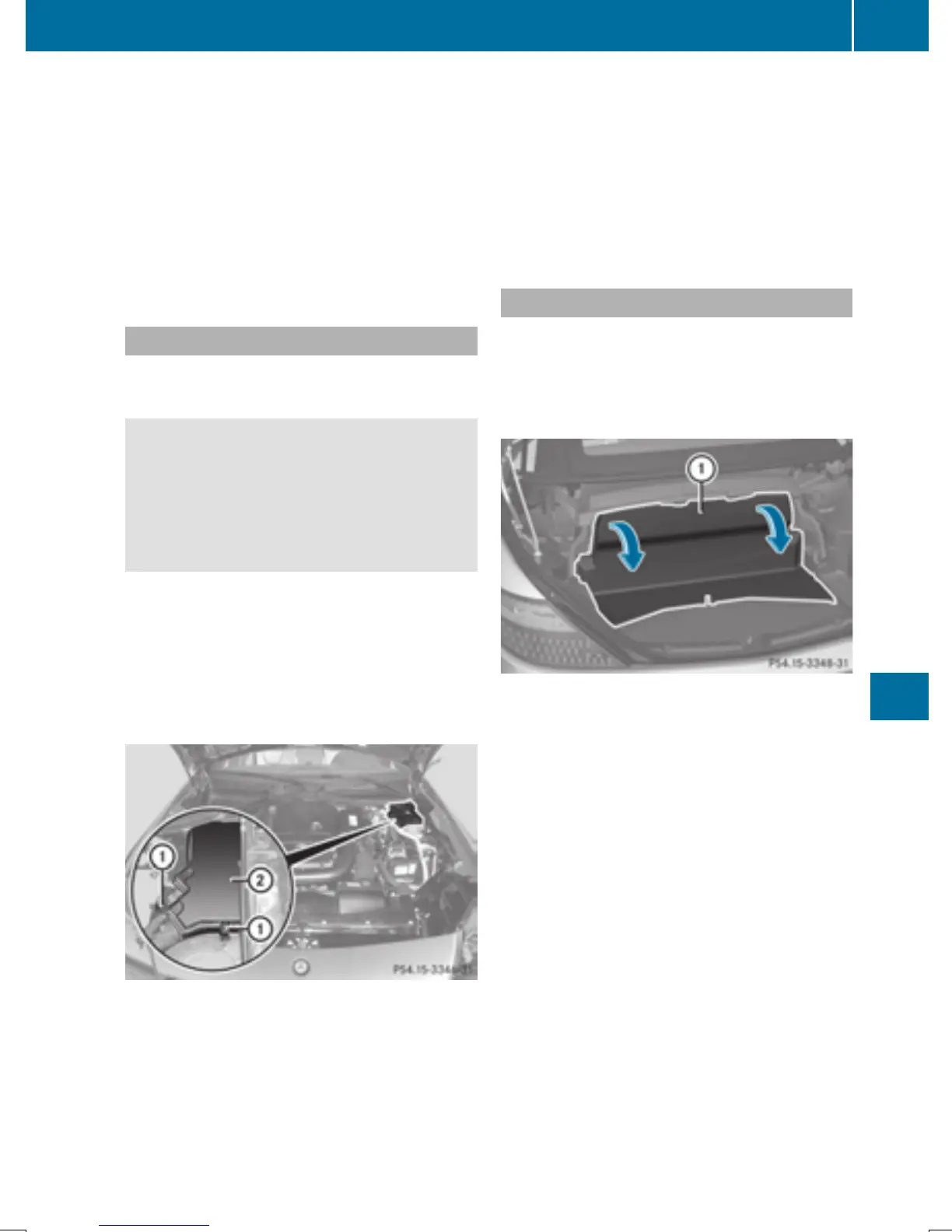

Fuse box in the engine compartment
i
Observe the "Important safety notes" sec-
tion (Y page 306).
G
WARNING
When the hood is open and the windshield
wipers are set in motion, you can be injured by
the wiper linkage. There is a risk of injury.
Always switch off the windshield wipers and
the ignition before opening the hood.
!
Make sure that no moisture can enter the
fuse box when the cover is open.
!
When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses.
X
Make sure that the windshield wipers are
turned off.
X
Open the hood.
X
Use a dry cloth to remove any moisture
from the fuse box.
X
To open: open clamp :.
X
Remove fuse box cover ; forwards.
X
To close: check whether the seal is seated
correctly in cover ;.
X
Insert cover ; at the rear of the fuse box
into the retainer.
X
Fold down cover ; and close clamps :.
X
Close the hood.
Fuse box in the trunk
i
Observe the "Important safety notes" sec-
tion (Y page 306).
!
Make sure that no moisture can enter the
fuse box when the cover is open.
The fuse box is located in the trunk behind the
partition covering.
X
Open the trunk lid.
X
To open: release cover : on the right and
left-hand sides with a flat object.
X
Open cover : downwards in the direction
of the arrow.
Fuses
307
