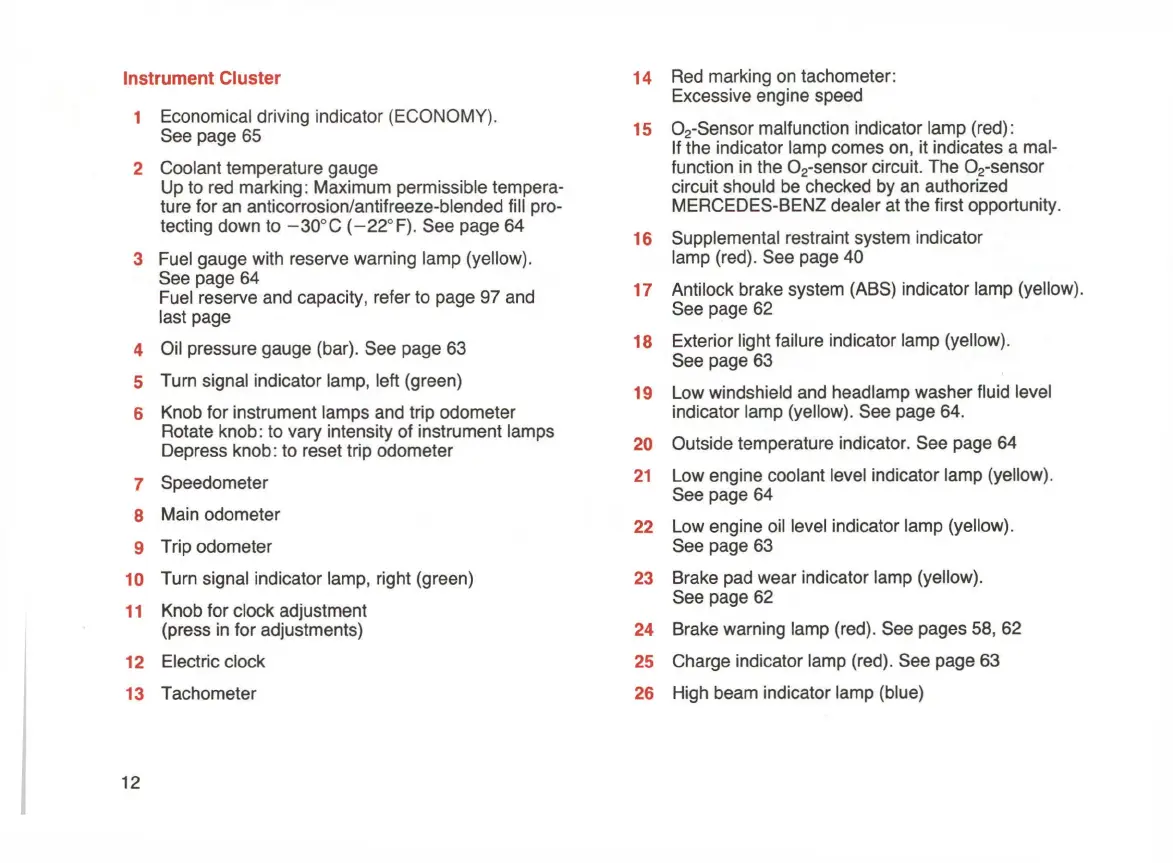

Instrument Cluster
1 Economical driving indicator (ECONOMY).
See page 65
2 Coolant temperature gauge
Up to red marking: Maximum permissible tempera
ture for an anticorrosion/antifreeze-blended fill pro
tecting down to -30°C (-2 2 °F). See page 64
3 Fuel gauge with reserve warning lamp (yellow).
See page 64
Fuel reserve and capacity, refer to page 97 and
last page
4 Oil pressure gauge (bar). See page 63
5 Turn signal indicator lamp, left (green)
6 Knob for instrument lamps and trip odometer
Rotate knob: to vary intensity of instrument lamps
Depress knob: to reset trip odometer
7 Speedometer
8 Main odometer
9 Trip odometer
10 Turn signal indicator lamp, right (green)
11 Knob for clock adjustment
(press in for adjustments)
12 Electric clock
13 Tachometer
12
14 Red marking on tachometer:
Excessive engine speed
15 0 2-Sensor malfunction indicator lamp (red):
If the indicator lamp comes on, it indicates a mal
function in the 0 2-sensor circuit. The 0 2-sensor
circuit should be checked by an authorized
MERCEDES-BENZ dealer at the first opportunity.
16 Supplemental restraint system indicator
lamp (red). See page 40
17 Antilock brake system (ABS) indicator lamp (yellow).
See page 62
18 Exterior light failure indicator lamp (yellow).
See page 63
19 Low windshield and headlamp washer fluid level
indicator lamp (yellow). See page 64.
20 Outside temperature indicator. See page 64
21 Low engine coolant level indicator lamp (yellow).
See page 64
22 Low engine oil level indicator lamp (yellow).
See page 63
23 Brake pad wear indicator lamp (yellow).
See page 62
24 Brake warning lamp (red). See pages 58, 62
25 Charge indicator lamp (red). See page 63
26 High beam indicator lamp (blue)
