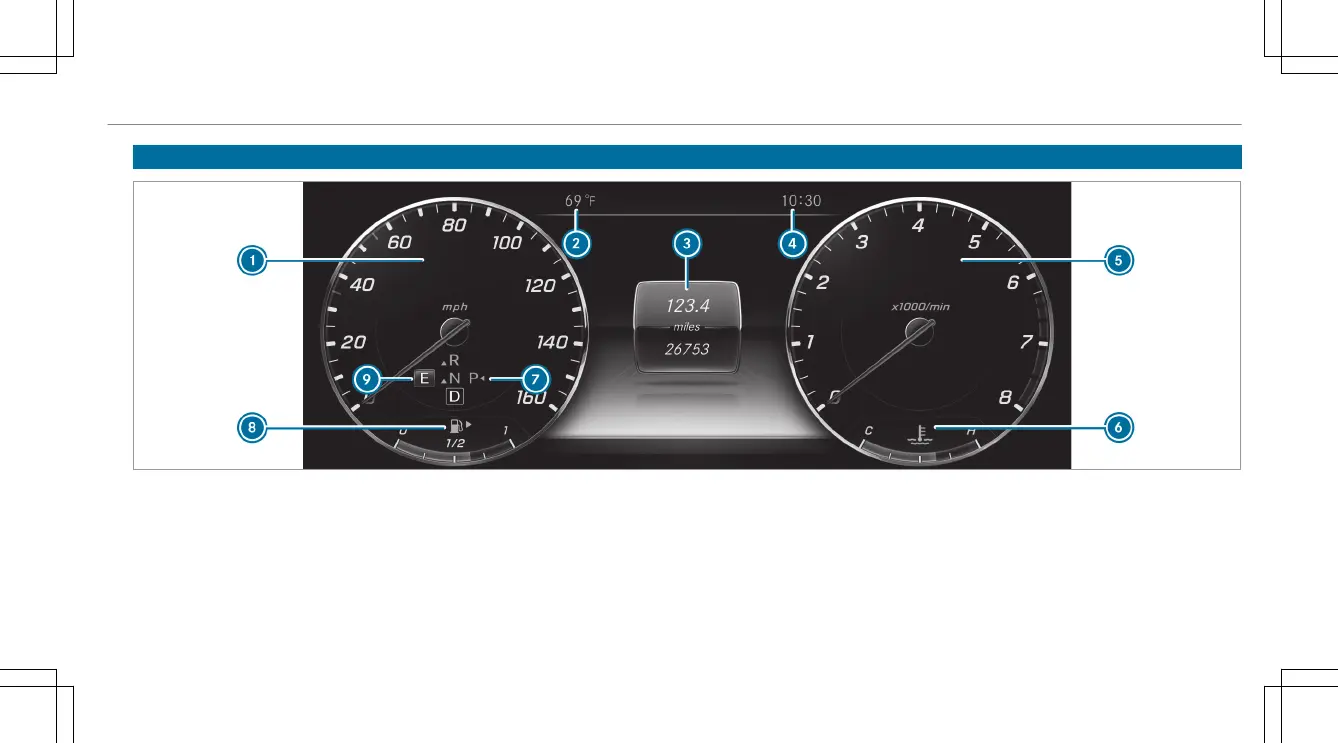

Instrument Display overview
1
Speedometer
The segments on the speedometer indicate
the status of the following systems: cruise
control/Active Distance Assist DISTRONIC
2
Outside temperature
3
Multifunction display (example: standard dis‐
play for trip): service/assistance/trip/navi‐
gation/radio/media/telephone/designs
4
Time
5
Area for additional values (example: tachom‐
eter): tachometer/navigation/ECO display/
consumption/G-meter/date
The fuel supply will be interrupted to protect
the engine when the red mark on the tach‐
ometer (overrevving range) is reached.
6
Coolant temperature display
During normal operating conditions, coolant
temperature display is permitted to rise to
the red mark.
7
Selected transmission position
8
Fuel level and fuel filler flap location indica‐
tor
9
Selected drive program
Instrument Display and on-board computer
199
