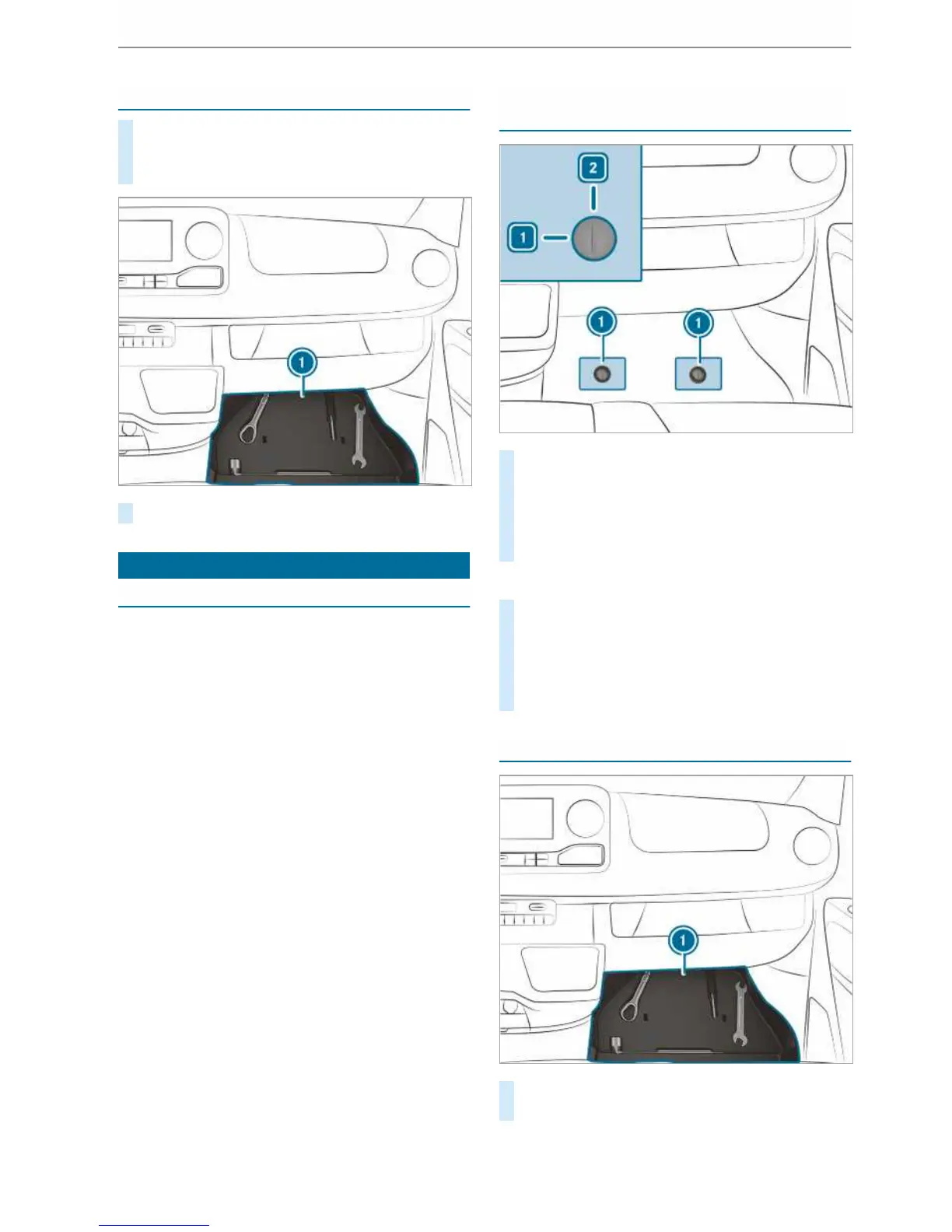

Opening the fuse box in the co-driver footwell
#
Unlocking and removing the stowage com‐
partment cover in the co-driver footwell
(/ page 310).
#
Remove insert 1 with the vehicle tool kit.
Vehicle tool kit
Information on the vehicle tool kit
The vehicle tool kit is located in the stowage com‐
partment in the footwell on the co-driver side
(/ page 310).
The vehicle tool kit contains:
R
a towing eye
R
a screwdriver with Torx, Phillips and slotted
bits
The vehicle tool kit may also contain the follow‐
ing, for example:
R
an open-end spanner
R
a wheel spanner
Unlocking and removing the stowage com‐
partment cover
#
Remove the rubber mat from the co-driver's
footwell.
#
To unlock: turn the quick-release fastener 1
anti-clockwise to position 1.
#
Slightly raise and pull out the cover.
Inserting and locking the cover
#
Slide in the cover and press it downwards.
#
Press down the quick-release fastener 1
until it engages.
#
To lock: turn the quick-release fastener 1
clockwise to position 2.
Removing the vehicle tool kit
#
Remove the vehicle tool kit from the stowage
compartment 1.
