FEATURES AND CONTROLS
24
Remote Control Features
Your boat may be equipped with one of the Mercury Precision or Quicksilver remote controls shown. If not,
consult your dealer for a description of the functions and operations of the remote control.
ee
aa
dd
dd
ee
ff
gg
aa
bb
ff
cc
gg
hh
bb
cc
aa
ff
ii
cc
ii
ob00329

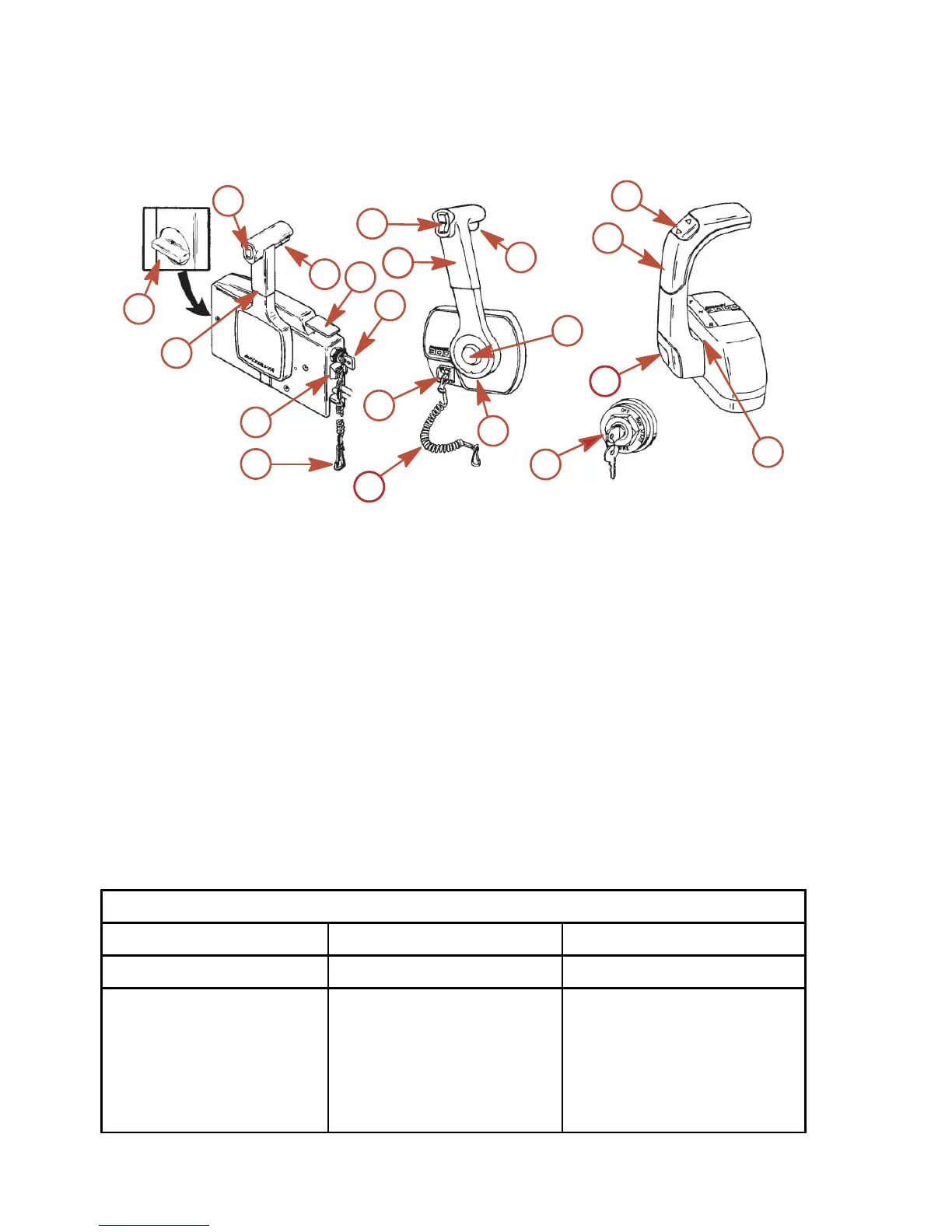

a - Control handle - forward, neutral, reverse.
b - Neutral release lever
c - Trim/tilt switch (if equipped). - Refer to
Features & Controls - Power Trim and
Tilt.
d - Lanyard stop switch - Refer to General
Information - Lanyard Stop Switch.
e - Lanyard - Refer to General Information -
Lanyard Stop Switch.
f - Throttle friction adjustment - Console
controls require cover removal for
adjustment.
g - Ignition key switch - "OFF," "ON," START."
h - Fast idle lever - Refer to Operation - Starting
the Engine.
i - Throttle only button - Refer to Operation -
Starting the Engine.
Warning System
WARNING HORN SIGNALS
When the key switch is turned to the "ON" position, the horn will turn on for a moment as a test to indicate the
horn is working.
The warning horn will emit either a continuous beep or intermittent short beeps. This will alert the operator and
help identify the following listed situations. For visual display of the specific engine functions and for additional
engine data, refer to SmartCraft Product information, following.
Warning Horn
Function Sound Description
Start up Single beep Normal system test.
Low battery Four beeps every 2 minutes Battery charging unable to
keep up with demand. Raise
engine speed, to increase
charge, or shut down
accessories, to reduce
demand.
