Mercury 80 Owner's Manual

MAINTENANCE
49
a
b
5
2
15
c
d
e
20
20
20
20
f
g
h
i
20819

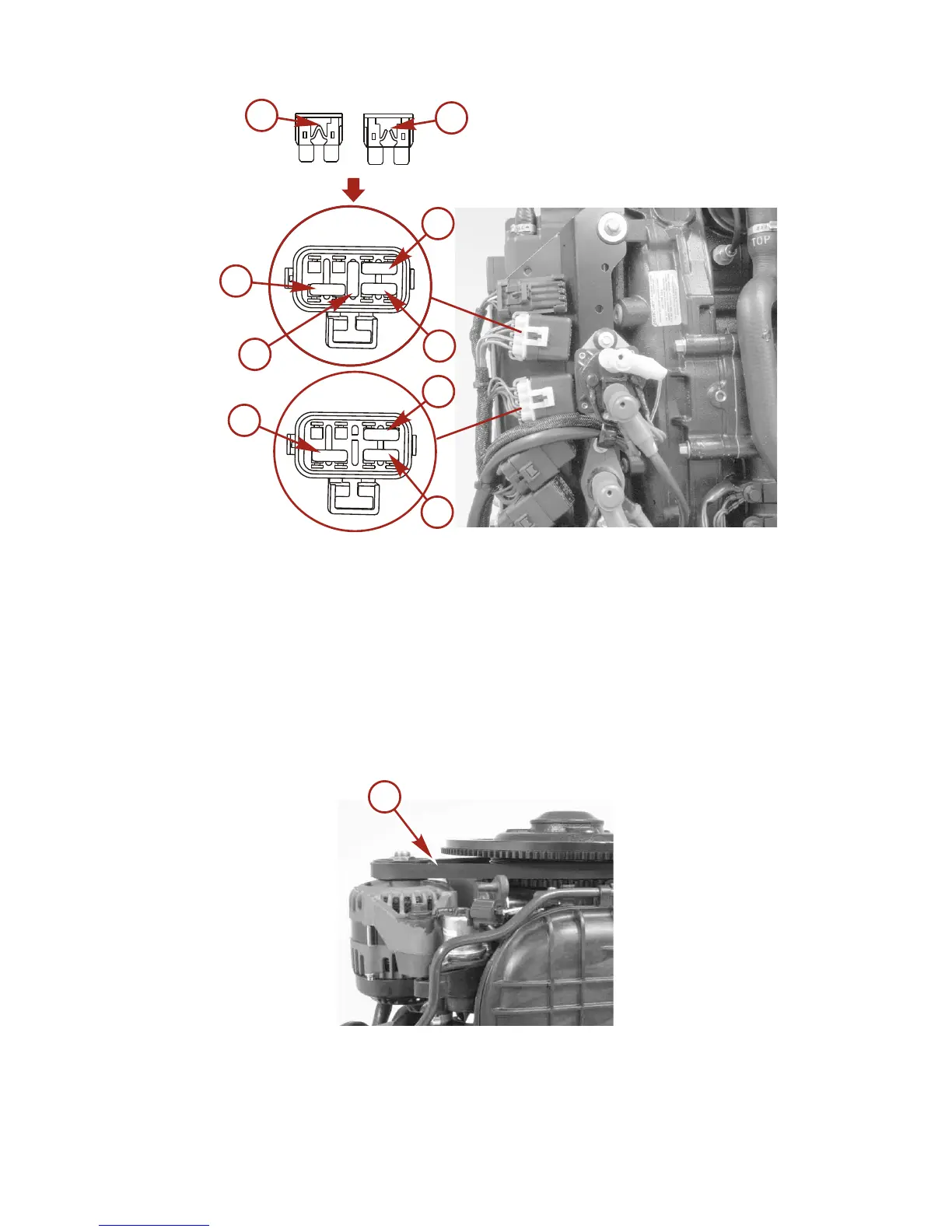

a - Good fuse
b - Blown fuse
c - Diagnostics terminal - 2 AMP fuse
d - 14 pin remote control harness/cowl trim
switch/main power relay - 15 AMP fuse
e - SmartCraft data bus circuit - 5 AMP fuse
f - Electric fuel pump - 20 AMP fuse
g - Ignition coils - 20 AMP fuse
h - Spare fuse - 20 AMP fuse
i - Fuel injectors/purge valve/idle air control - 20
AMP fuse
Alternator Drive Belt Inspection
Inspect the alternator drive belt and have it replaced by an authorized dealer if any of the following conditions
are found:
a
20775
a - Alternator drive belt
• Cracks in the back of the belt or in the base of the V grooves.
• Excessive wear at the roots of the grooves.
• Rubber portion swollen by oil.
