Mercury 80 Owner's Manual

OUTBOARD INSTALLATION
72
a
b
f
c
d
e
g
20792
h
i
j

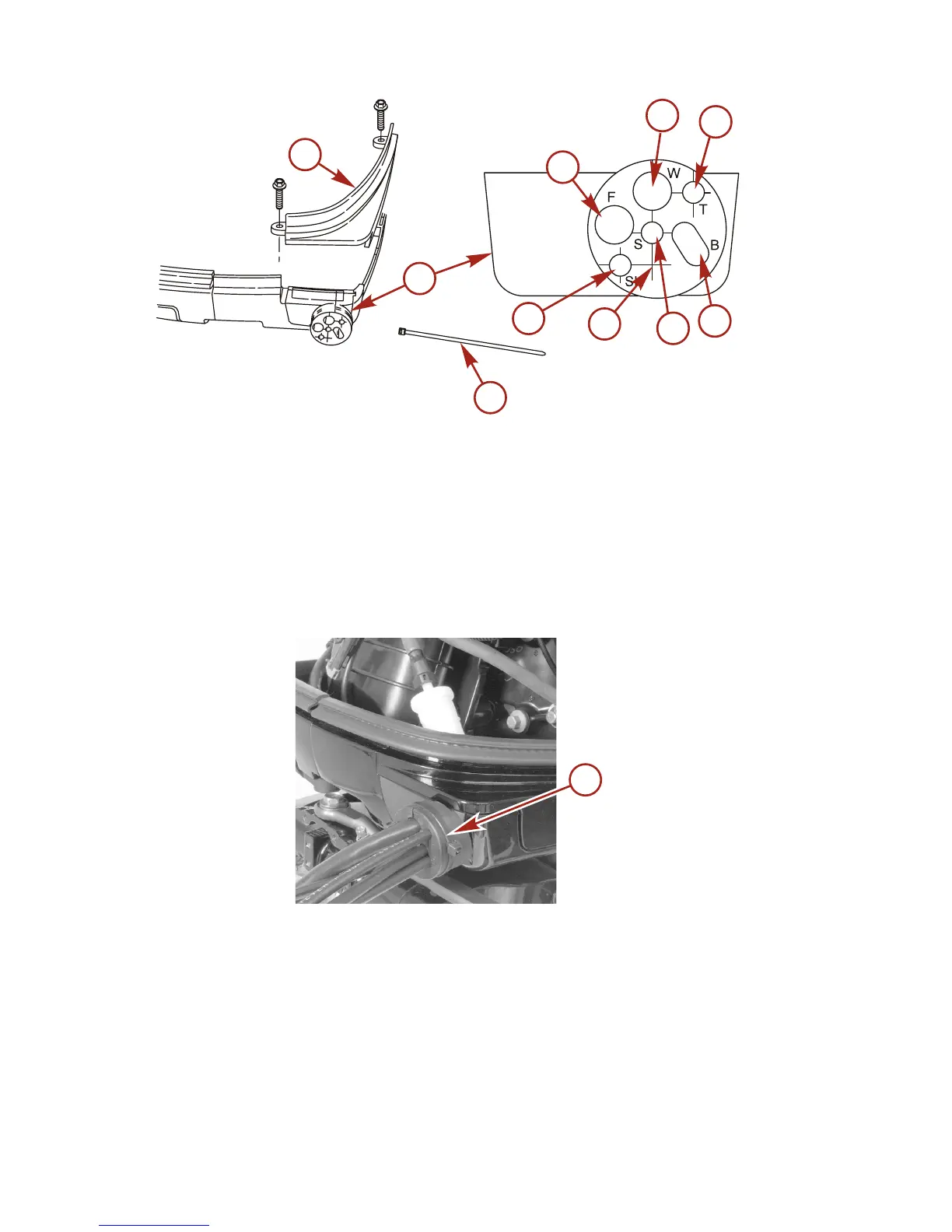

a - Access cover
b - Front grommet
c - Fuel hose opening
d - Remote wiring harness opening
e - Throttle cable opening
f - Battery cable opening
g - Speedometer tube opening
h - SmartCraft harness or additional harness
opening
i - Shift cable opening
j - Cable tie
2. Route the hoses, wiring, and cables through the correct opening in the front grommet as shown.
3. Reinstall the access cover with two bolts. Reattach the cowl seal.
4. Attach a cable tie around the outside diameter of the front grommet.
a
20794
a - Cable tie
REMOTE WIRING HARNESS
Route the remote 14 pin boat harness through the front grommet. Connect the remote harness to the 14 pin
connector on the engine harness.
