Mercury 90 Operation Maintenance Installation Warranty Manual

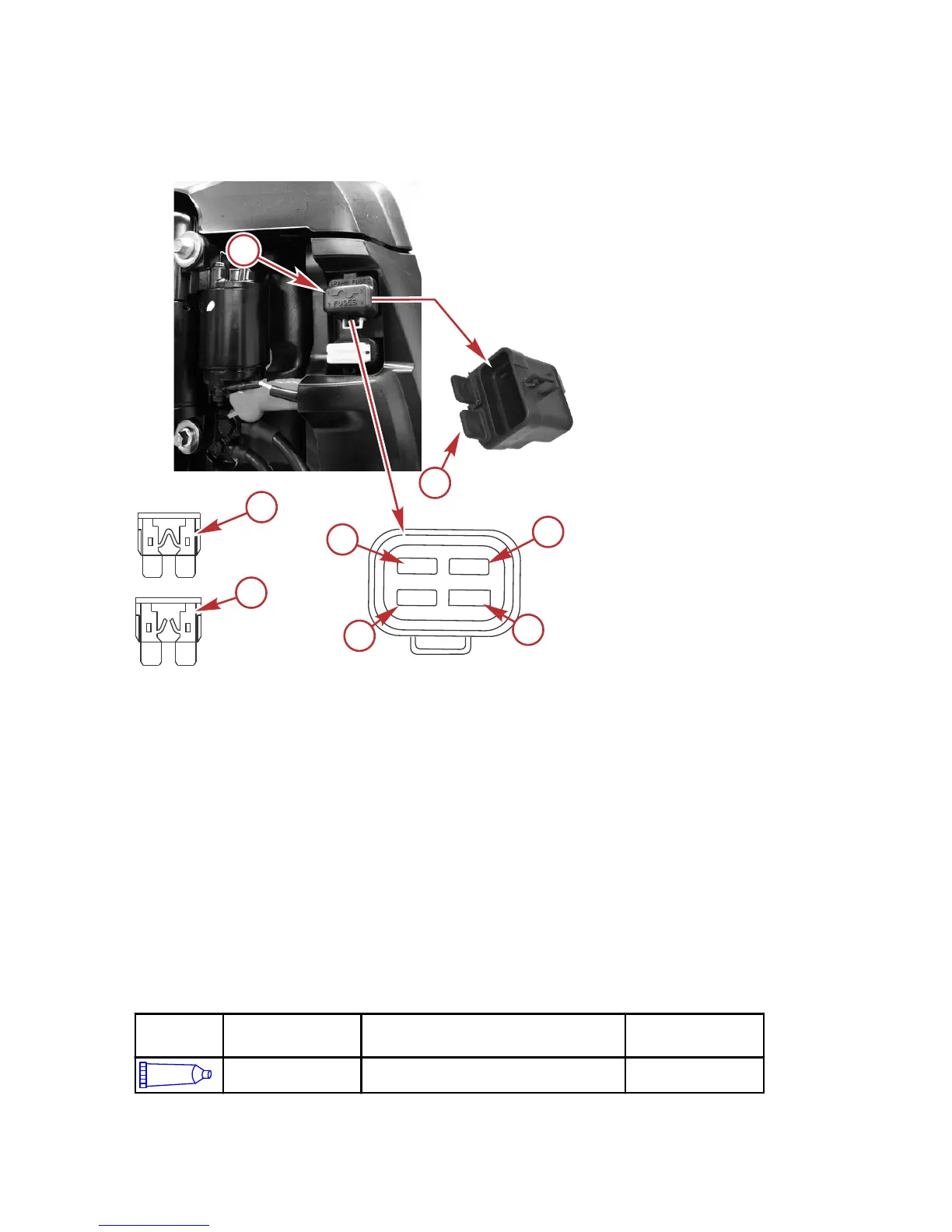

Open the fuse holder and look at the silver colored band inside the fuse. If the
band is broken, replace the fuse. Replace fuse with a new fuse with the same
rating.
a - Cover
b - Spare fuse holders
c - Fuse 3 ‑ HELM 15 amp ‑ 14 pin remote control harness/cowl trim
switch
d - Fuse 4 ‑ IGN. 20 amp ‑ ignition system
e - Fuse 2 ‑ FUEL 20 amp ‑ fuel delivery
f - Fuse 1 ‑ DIAG. 2 amp ‑ diagnostics/vessel (accessory) harness
g - Good fuse
h - Blown fuse
Lubrication Points
1. Lubricate the following with Extreme Grease or 2‑4‑C with PTFE.
Tube Ref
No.
Description Where Used Part No.
Extreme Grease Propeller shaft 8M0071842
20
20
2
15
a
b
c
d
e
f
g
h
53784
MAINTENANCE
80 eng
