Section 2 - Getting to Know Your Power Package
Page 10 90-899883210 APRIL 2008

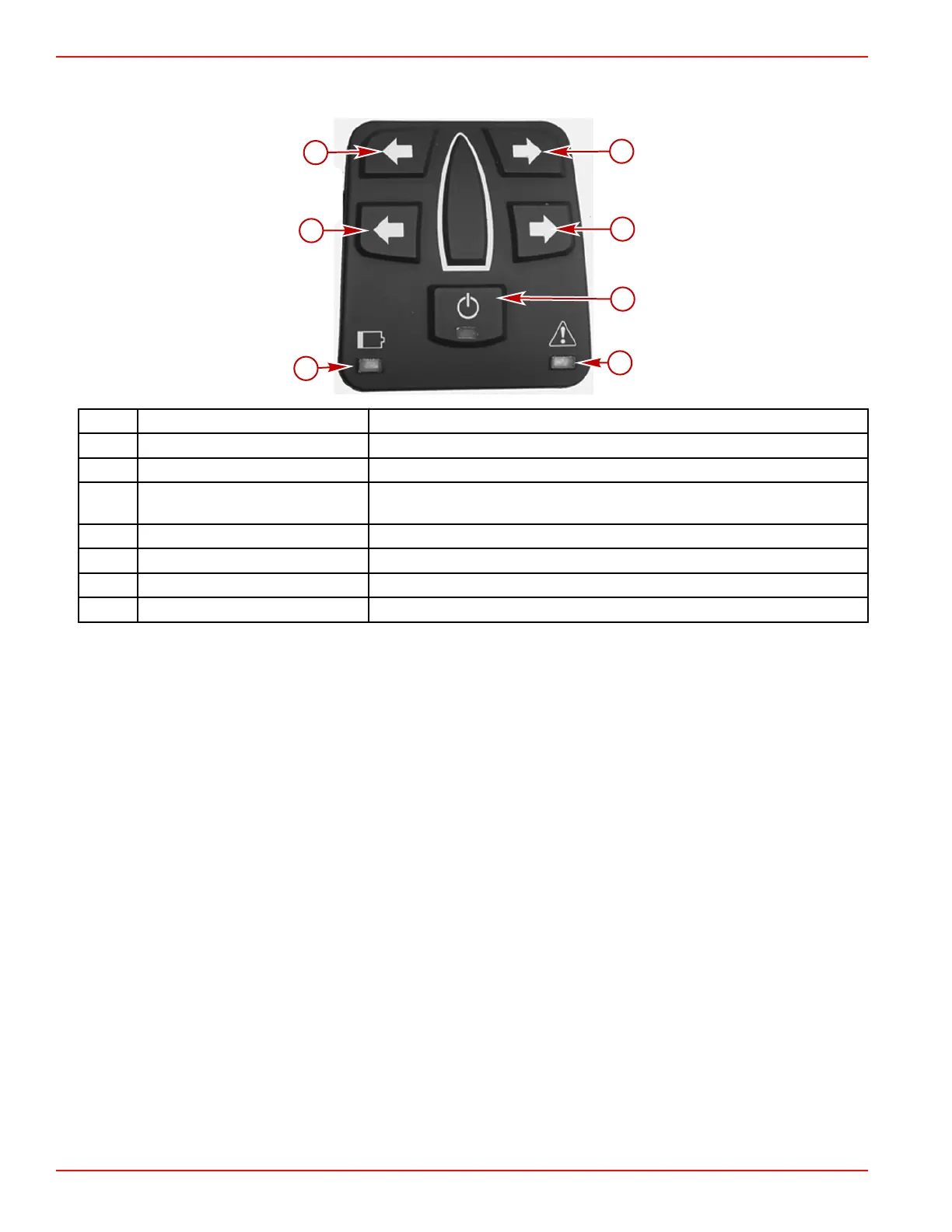

The switchpad controls the bow and stern thrusters. It contains four switches to control individual thrusters,
a switch to activate and deactivate Total Command, and three status indicator lights.
Callout Control Function
a Starboard bow thruster button Moves bow to starboard
b Starboard stern thruster button Moves stern to starboard
c
System activation switch
and status indicator
Activates and deactivates Total Command
Light indicates that Total Command is on
d Fault indicator Light illuminates when a fault is found in the Total Command system
e Capacity indicator Indicaties the amount of thruster capacity remaining
f Port stern thruster button Moves stern to port
g Port bow thruster button Moves bow to port
Refer to Advanced System Information for more information regarding the indicator lights.
