MIE MODELS - HURTH TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2D-13

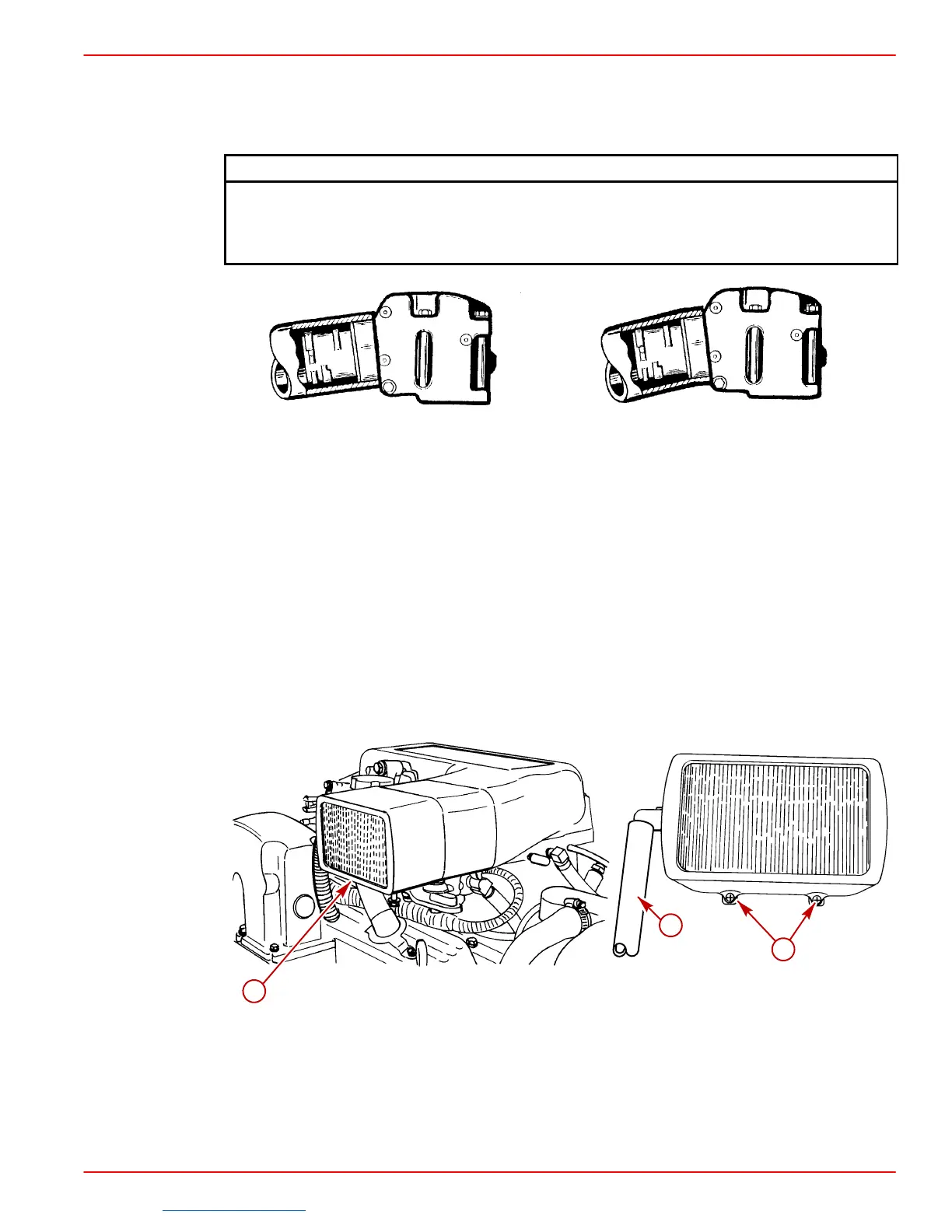

Exhaust Hose Connection
1. Connect exhaust system tubes and hoses using at least two hose clamps at each
connection. Tighten hose clamps securely.
NOTICE
Exhaust hoses must be connected to exhaust elbows so that they do not restrict
the flow of discharge water from exhaust elbow. If hoses are connected incorrectly,
discharge water from exhaust elbow will not flow around entire inside diameter of
hose. This will cause a hot spot in the hose which may eventually burn through.
72538
Correct Incorrect
NOTE: Clamps are not shown.
Throttle Cable Installation and Adjustment
MODELS EXCEPT 7.4L MPI
1. Place remote control handle(s) in neutral idle position.
IMPORTANT: Be sure that cable is routed to avoid sharp bends and/or contact with
moving parts. DO NOT fasten any items to throttle cable. Outer cable must be free to
move when cable is actuated.
2. On 8.2L MPI Model: Remove flame arrestor as follows:
a. Disconnect crankcase ventilation hose.
b. Remove flame arrestor screws.
75113
a
75142
b
c
8.2L MPI Shown
a-Flame Arrestor
b-Screws
c-Crankcase Ventilation Hose
c. Remove flame arrestor.
