INSTALLATION
90-888438 JUNE 2002 Page 1D-15

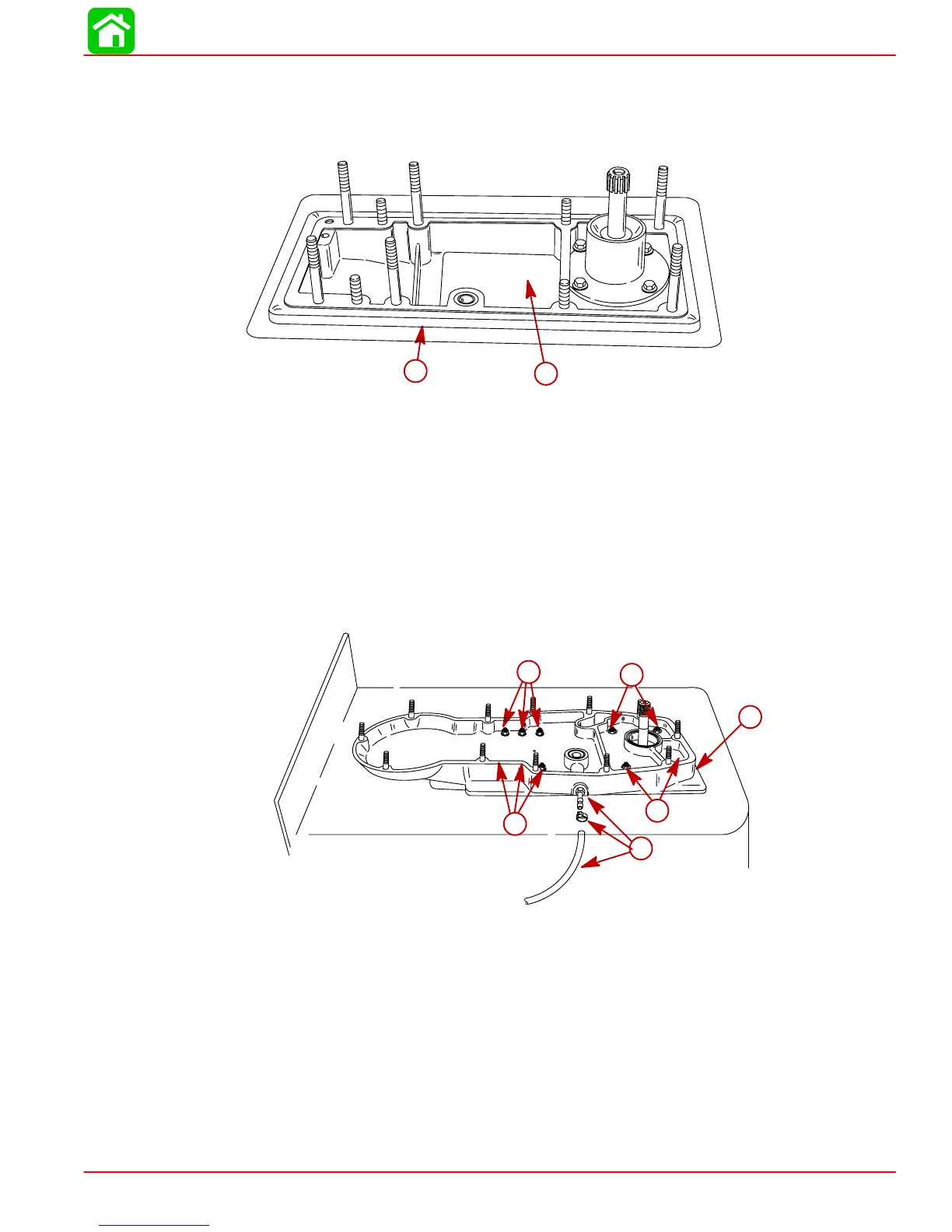

7. Install jet pump by pushing unit through opening in tunnel grommet. Ride plate seal
should fit snug in boat tunnel without any gaps along perimeter.
58180
a
b
a-Jet Pump
b-Tunnel Grommet
NOTE: Before torquing fasteners, check ride plate seal for proper fit in tunnel.
8. Install gasket, o-ring, and cover on jet pump. Align holes in cover with studs in housing
and secure with ten (10) M10 x 1.5 nuts. Check ride plate seal for proper fit in tunnel
and
torque housing cover nuts to 35 lb. ft. (47 N m).
9. Check steering and shift cables for freedom of movement. Correct installation if cables
are pinched.
10. Attach flush hose to fitting and secure with hose clamp. Failure to secure hose will allow
water to fill boat. Refer to Installation of Flushing Kit for completion.
b
58202
c
59290
a
a
a
a
a-M10x1.5 Nuts (10)
b-Cover and Gasket
c-Attach Flush Hose to Fitting with Hose Clamp
