INSTALLATION
90-888438 JUNE 2002 Page 1D-25

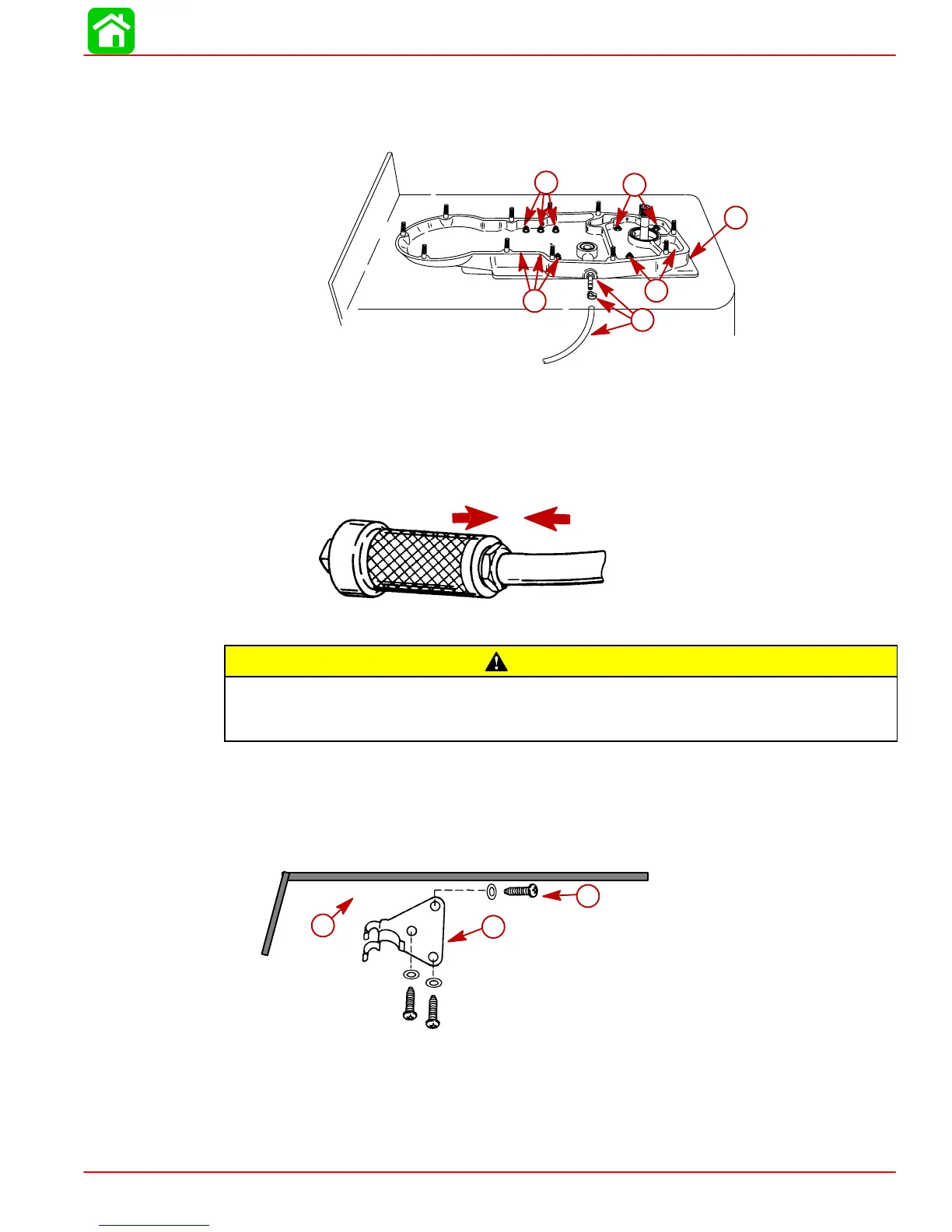

Installation of Flushing Kit
1. Attach flush hose to fitting and secure with hose clamp. Failure to secure hose will allow
water to fill boat.
b
58202
59290
a
a
a
a
c
a-M10x1.5 Nuts (10)
b-Cover and Gasket
c-Attach Flush Hose to Fitting with Hose Clamp
2. Attach one end of hose to flush adapter. Secure with clamp as shown.
CAUTION
BEFORE mounting flush adapter bracket, route adapter and hose to selected
mounting location. Hose routing MUST NOT INTERFERE with throttle and/or con-
trol linkage.
NOTE: Mount flush adapter bracket in area of motor compartment that has mounting sur-
face thicker than depth of mounting bracket screws.
3. Locate area (easily accessible) within motor compartment to mount flush adapter brack-
et. Secure bracket to mounting surface with three screws supplied.
a
b
c
a-Mounting Surface
b-Bracket
c-Screw (3)
