INSTALLATION
90-888438 JUNE 2002 Page 1D-17
6. Adjust cable end adaptor until thru-hole in adaptor lines up with threaded hole in steering
arm. This is the steering cable fine adjustment. Cable end adaptor MUST be installed
on steering cable a minimum of nine (9) turns.
7. Attach steering cable to steering arm with bolt, washer and locknut. Torque nut to 70 lb.
in. (7.9 Nm).

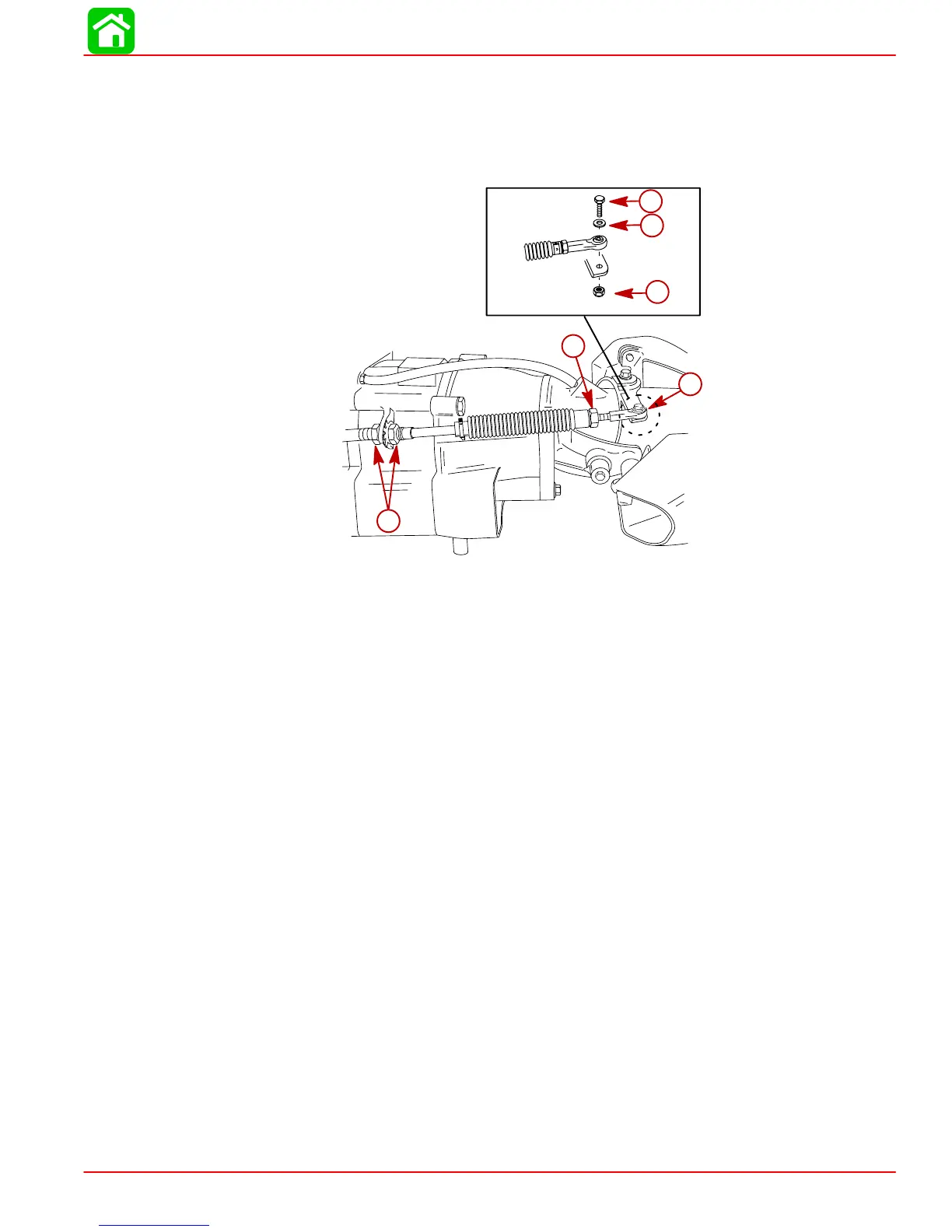

54902
b
a
c
e
d
f
a-Bellows Nut
b-Steering Arm
c-Bolt
d-Lock Nut
e-Flat Washer
f-Cable Nuts
8. Tighten cable nuts.
9. Check steering adjustment to ensure that the helm limits cable travel for maximum left
and right turns. Correct if required.
10. Secure cable nut with tab washer by bending a tab over flat of hex nut.
