Mercury SMARTCRAFT User Manual

SMART TACH & SPEED
4-7
SMART TACH & SPEEDOMETER
gog95
TROLL
+
TROLL
–
TROLL
+
TROLL
–
Speedometer
Tachometer
Actual Speed
Set Speed
Actual Speed Set Speed
a
b
osl7

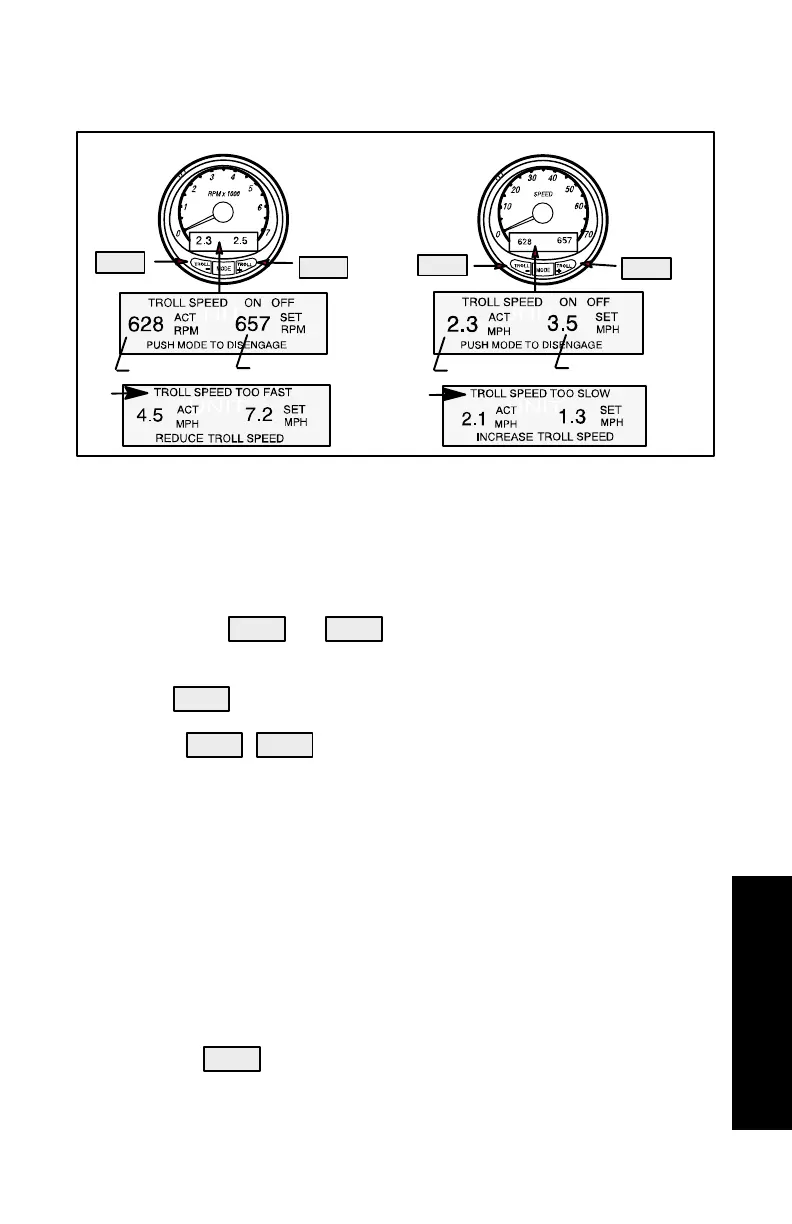

Troll Control
To Set Troll Control
1. With the engine running, shift outboard into gear. Set engine
speed at idle.
2. Push in the
TROLL
+
or
TROLL
–
button to bring up the troll control
display screen.
3. Press
MODE
to engage (turn on) the troll control.
4. Use the
TROLL
+
TROLL
–
buttons to set the desired speed. Use (+)
to increase speed and (–) to decrease speed.
5. If you set troll control to a higher speed than the troll rpm can
bring the boat to, the TARGET SPEED TOO FAST (a) message
will appear. Reduce troll speed.
6. If you set troll control to a slower speed than the troll rpm can
bring the boat to, the TARGET SPEED TOO SLOW (b) message
will appear. Increase troll speed.
To Get Out of Troll Control
There are three ways to turn off the troll control:
• Press the
MODE
button when in the troll display screen.
• Move the throttle to a different speed.
• Shift outboard into neutral.

Mercury SMARTCRAFT Specifications

General

Display Type	LCD
Connectivity	NMEA 2000
Manufacturer	Mercury Marine
Category	Boating Equipment
Features	fuel management
Data Provided	fuel consumption
Type	Engine Monitor

Summary

Operation Manual

Part 1 Monitor with Software Version 1.01 and 1.02

Part 2 Monitor with Software Version 2.00

Basic Operation

Shallow Water Alarm

CAL 1 Calibration

Guides through calibration settings for display options and basic functions.

CAL 2 Calibration

Guides through advanced calibration settings for sensors and features.

Part 3 System Tach and Speedometer

Master Reset

CAL 1 Tachometer Calibration

Guides through tachometer calibration for display and system settings.

CAL 2 Tachometer Calibration

Guides through tachometer calibration for sensor inputs and configurations.

CAL 1 Speedometer Calibration

Guides through speedometer calibration for display and clock settings.

CAL 2 Speedometer Calibration

Guides through speedometer calibration for sensor inputs and configurations.

Part 4 Smart Tach and Speedometer

Basic Operation and Features

Warning System

Warning Display Screens

Tachometer Calibration

Guides through tachometer calibration for display and system settings.

Speedometer Calibration

Guides through speedometer calibration for display and clock settings.
