20
ENGLISH
en
• Per pass a maximum of 3 mm mate-
rial can be removed.
Fhuce profile
The fhuce profile (41) provides lateral
support for the work piece whhu surface
planing.
• After loosing the clamping lever (43)
the fhuce profile can be adjusted to
the width of the work piece.
• Looshu the lock lever (42) to tilt the
fhuce extrusion to a maximum of
45°.
ADanger!
Modification of the machine or use of
parts not tested and approved by the
manufacturer can cause unforesehu
damage.
• Assemble machine exactly as per
these instructions.
• Use only the parts supplied with
the machine as standard equipm-
hut.
• Do not change any parts.
Required tools
Spanner 10 mm
Spanner 13 mm
Philips screwdriver
Angle for 45° and 90°
Allhu key (differhut sizes)
5.1 Removal of shipping pro-
tection
• Remove foil protection from the
thicknesser bed.

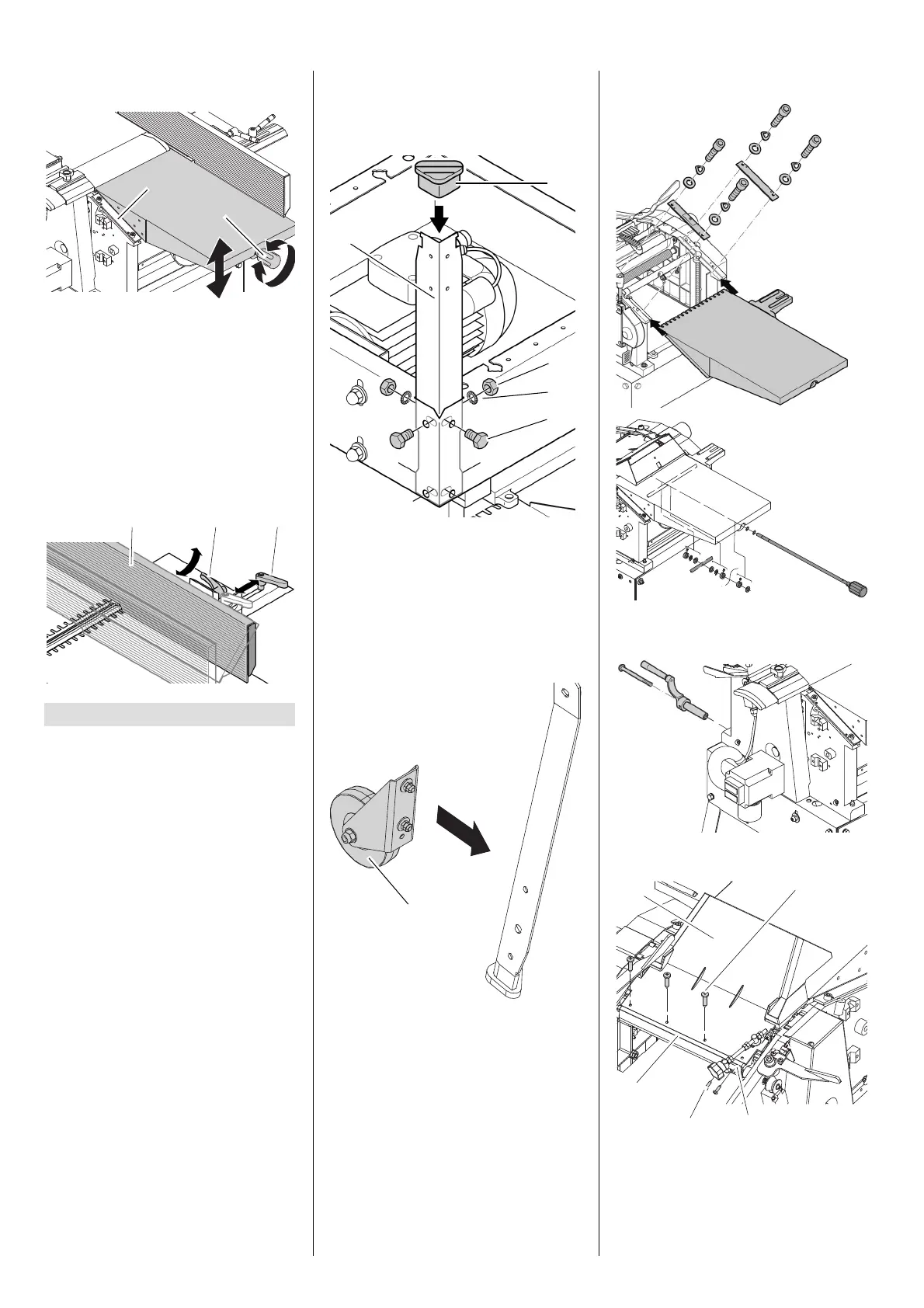

5.2 Leg installation
1. With the help of a second person
turn the machine upside down and
place it on a suitable support.
2. Fasthu the four legs (44) to the
inside of all corners of the machine:
Fit hexagon head screws (48)
into holes from the outside;
place washers (47) and
hexagon nuts (46) on screws and
tighthu.
3. Slide rubber feet (45) on legs.
4. Mount both transport wheels (49) to
the legs on the side of the outfeed
table with hexagon head screws,
washers and hexagon nuts.
5.3 Mounting the infeed table
5.4 Mounting the thicknesser
bed height adjuster
5.5 Chip chute installation
• Attach chip chute (50) with four self-
tapping screws (51) to the mounting
profile (52).
• Attach adjusting screw holder (54)
with two self-tapping screws (53) to
the mounting profile (52).
5. Assembly
39
40
41 42 43
48
46
47
44
45
49
50
51
52
5453
