CHAPTER 7: MX RMS MODULE
The MX RMS module is used in the following loudspeakers:
■ LEO-M loudspeaker (comes standard)
■ 1100-LFC loudspeaker (comes standard)
When equipped with an RMS module, Meyer Sound loud-
speakers can be connected to an RMS network and moni-
tored with Compass control software. Some Meyer Sound
loudspeakers, including LEO-M and 1100-LFC, come stan-
dard with the RMS module already installed. For other
Meyer Sound loudspeakers, the RMS module is available as
an option that can either be factory installed or installed at a
later date by a qualified service technician.
The following sections document how to install and use the
MX RMS module:
■ “Installing the MX RMS Module” on page 43
■ “Installing the Mute Jumper on the MX RMS Module” on
page 45
■ “Neuron ID for MX RMS Modules” on page 46
■ “Resetting the MX RMS Module” on page 46
INSTALLING THE MX RMS MODULE
This section documents installing the MX RMS module.This
installation procedure requires a standard #2 Phillips screw-
driver.
To install the MX RMS module:
1. Remove the loudspeaker’s AC power cable and audio
cable and place the loudspeaker on a clean, low-static
flat surface. Orient the loudspeaker with the top facing
up. Wait at least five minutes before removing the MX
RMS module.

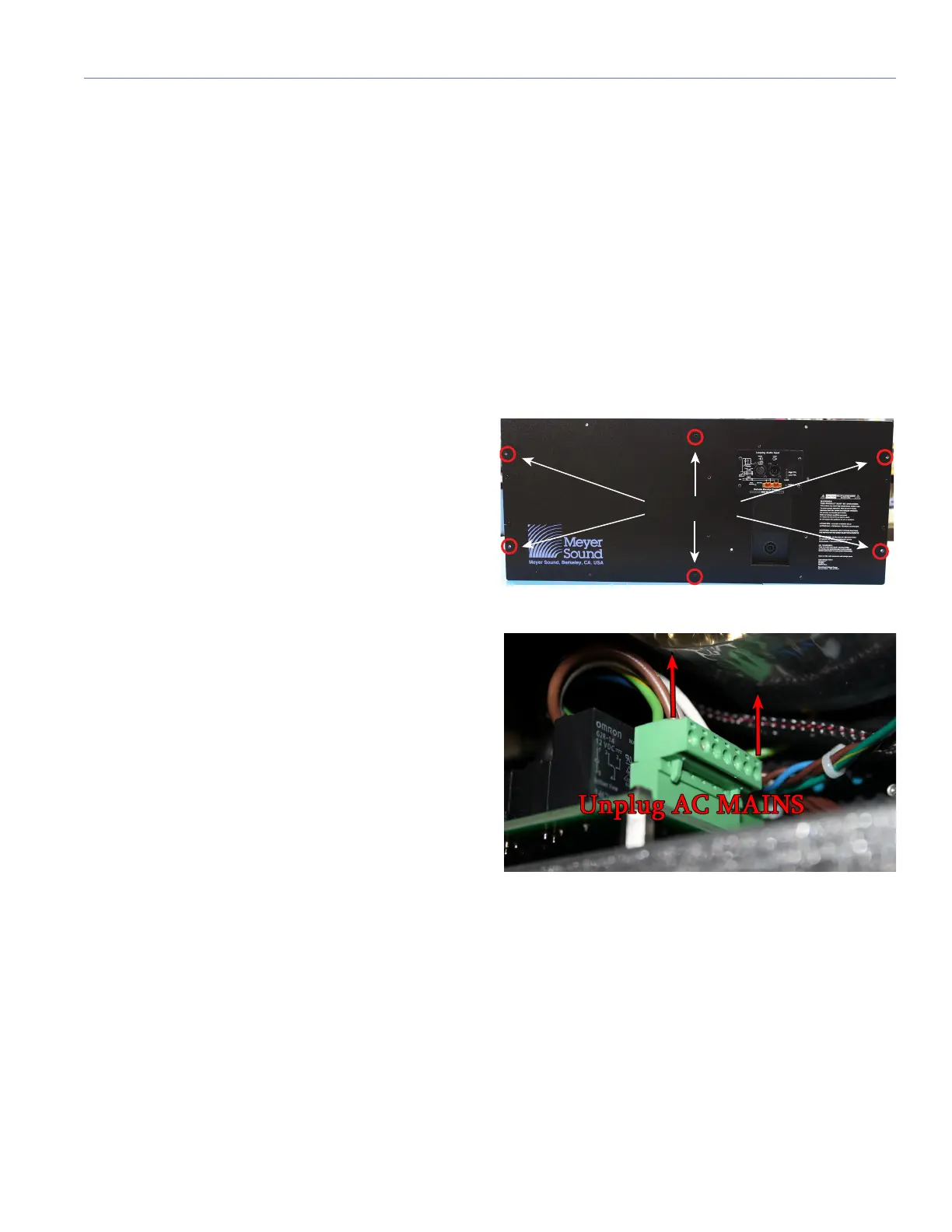

2. Remove the six screws securing the rear panel.
3. Disconnect the AC power connector.
