5.2.1 Add Device

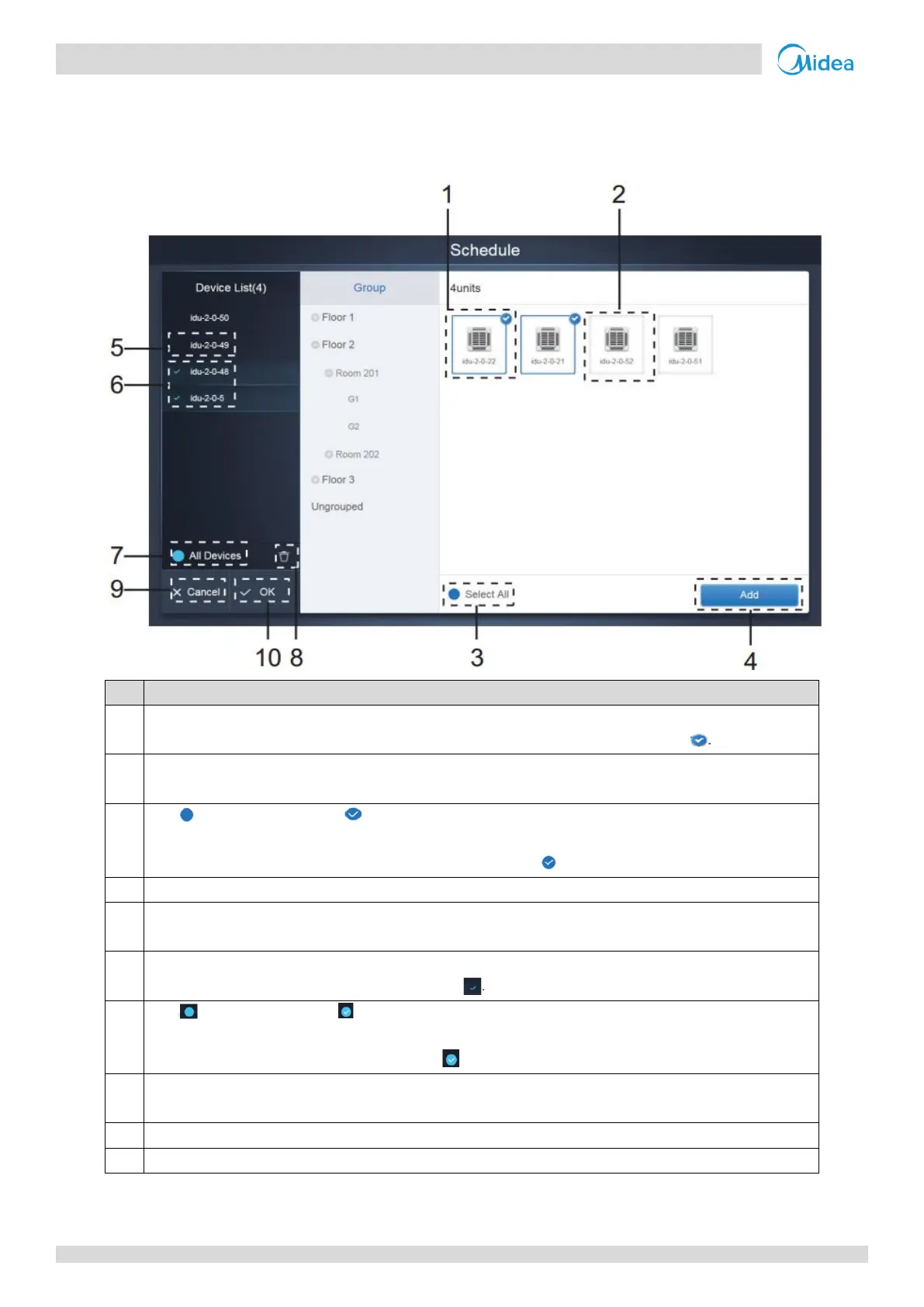

This interface would be shown up on clicking on the “Select IDU” tab on the previous page. The user can simply click on
the devices being shown in the right side of the display and after clicking on “Add”, the following devices would be added
to the corresponding schedule. A detailed explanation of this function has been discussed in the table below:
Devices waiting to be selected are displayed in the rightmost area, and these are the devices that have not been
added to the selected subgroup. "1" is a selected device and its top right corner is marked with .
"2" is a device that has not been selected. Tap the unselected device to select the device. Tap again to deselect the
selected device.
Tap to activate "Select All". is an active status for this selection. After activation, all the devices waiting to
be selected in the group are selected. Tap again to deselect all. Manually cancel the selected status of a few devices
after "Select All" has been activated. Will not cancel "Select All". Tap again to cancel the "Select All" option.
Tap to add the selected device for the corresponding schedule.
This displays the device that has been added for the corresponding schedule. You can tap to select this operation.
“5” is a device that has not been selected, tap to select it.
This displays the device that has been added. You can tap to select this operation. "6" is a selected device, tap to
deselect it. Left of the selected device is marked with
Tap to activate "Select All". is an active status. After activation, all the devices waiting to be selected in the
group are selected. Tap again to deselect all. Manually cancel the selected status of a few devices after "Select All"
has been activated. Will not cancel "Select All". Tap again to cancel the "Select All" option.
Clicking it will delete the device from the list of selected devices for the corresponding schedule and as a result the
respective device would go back to right side of the display in the list of Non-Selected devices.
Clicking it will cancel all the changes made and the schedule would remain as it is as was before doing the edit.
Save and Exit would save the corresponding changes.
