8. Temperature sensing system

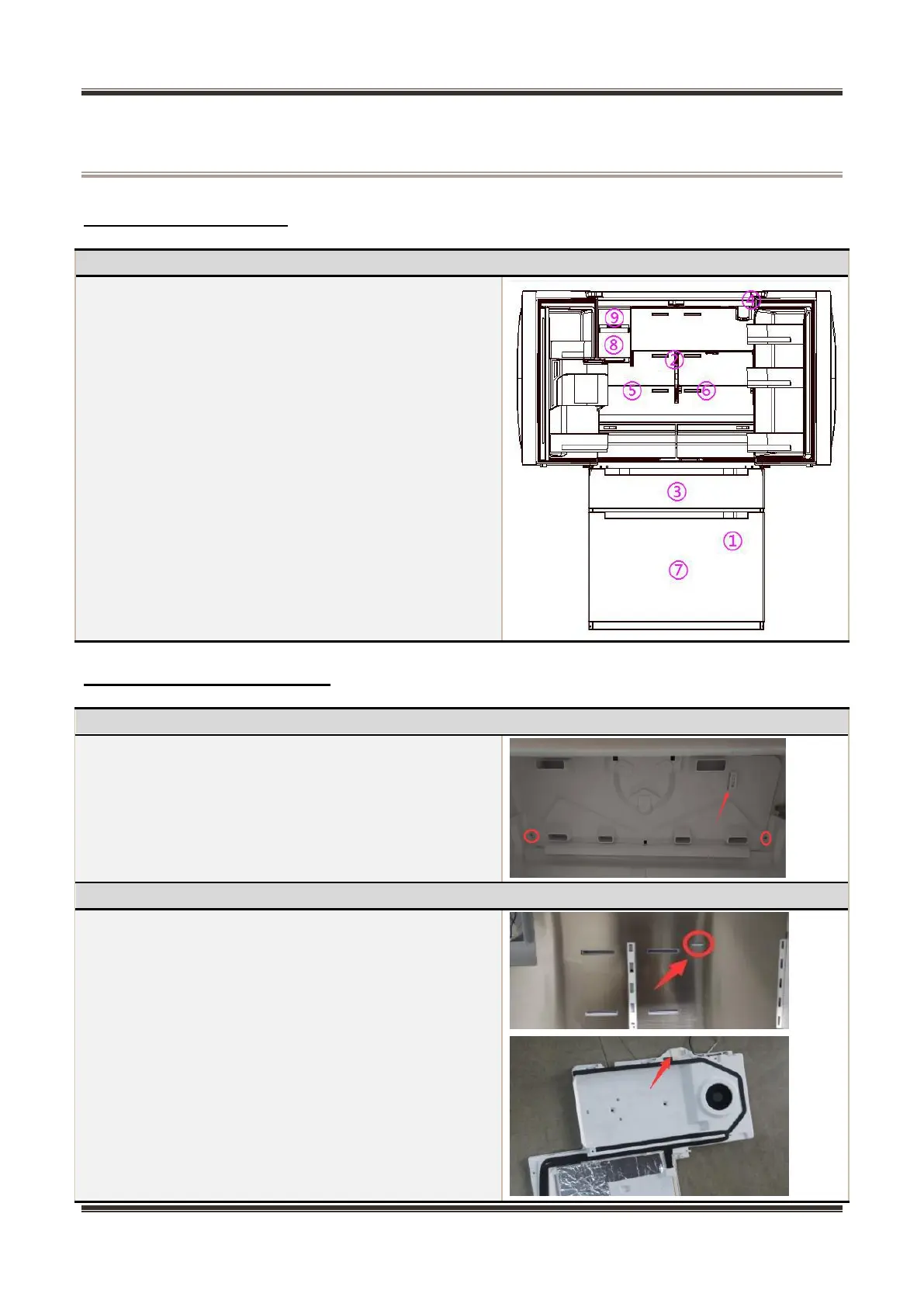

8.1 Position of sensors
8.2 Replacement of sensors
Freezer sensor is located in the freezer rear, the location
indicated by the red arrow.
1) Take out the freezer drawer, remove 2 screws in the
red cricle, and take down the freezer air duct cover plate;
2) Remove the sensor.
Sensor in refrigerating chamber
The air duct components in refrigerator should be
dismantled before removing the sensor.
There are 9 sensors
①Sensor in freezing chamber
②Sensor in refrigerating chamber
③Sensor in Fresh cooling big drawer
④Ambient temperatureor humidity sensor
⑤Defrost sensor in ice maker
⑥Defrost sensor in refrigerating chamber
⑦Defrost sensor of freezing chamber
⑧Temperatureor sensor in ice maker
⑨Integrated temperature sensor in ice maker
