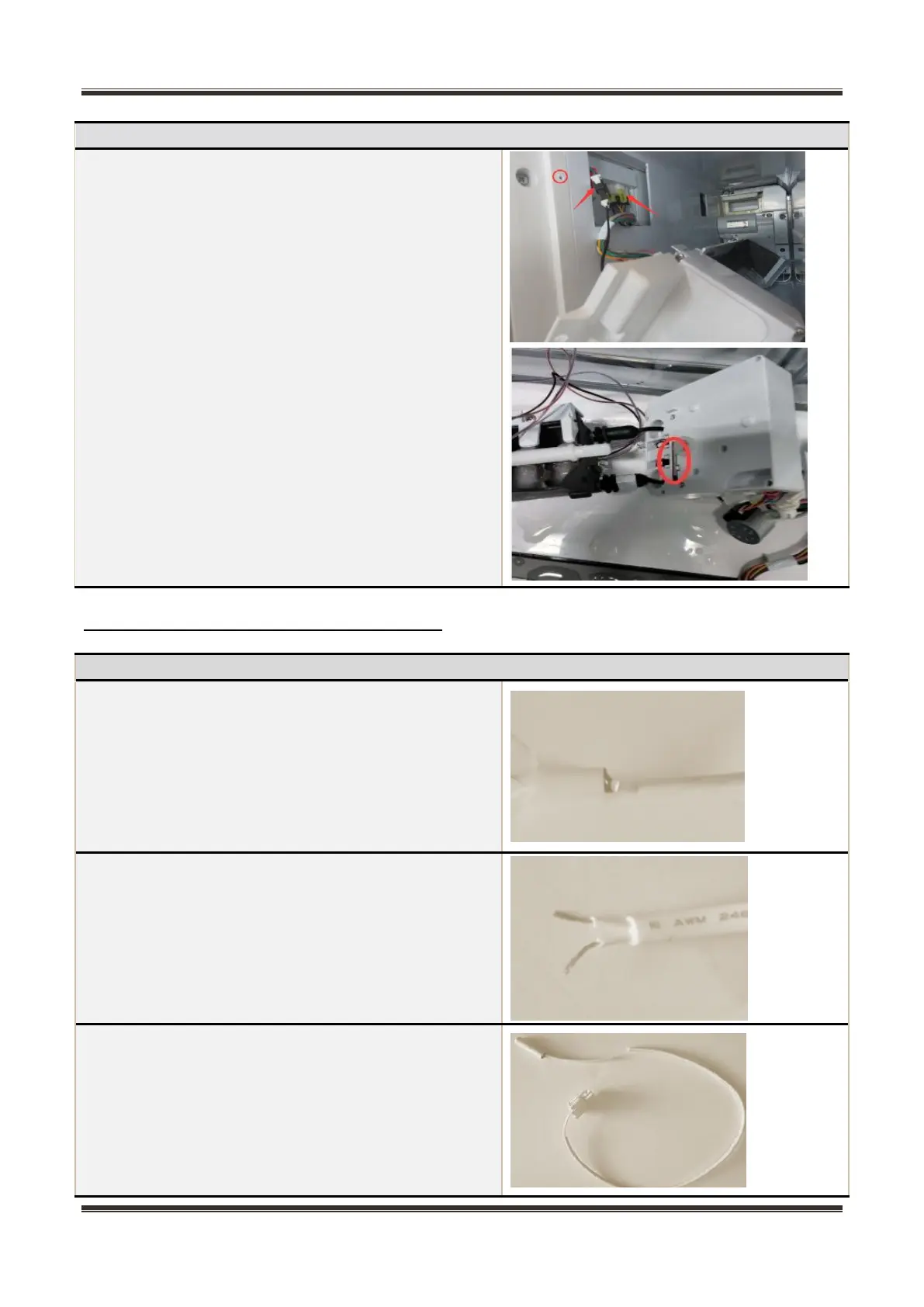

Integrated temperature sensor in ice maker
Integrated temperature sensor of ice maker is located
inside the ice maker.
1) Take out ice storage box in the refrigerating
ice-making compartment, and remove the screw in the
red circle;
2) Disconnect the wiring terminal indicated by the arrow,
and take out the ice maker;
3) Disassemble the ice maker, and separate the sensor
from the ice maker.
8.3 Sensor without terminal replacement
Sensor replacement guidelines
Cut off the damaged head of sensor.
Strip off the sensor wiring.
Take out a new sensor to cut the head of sensor.
(Spare parts code：11201007000795) Its technical
specifications apply to all MIDEA refrigerators.
