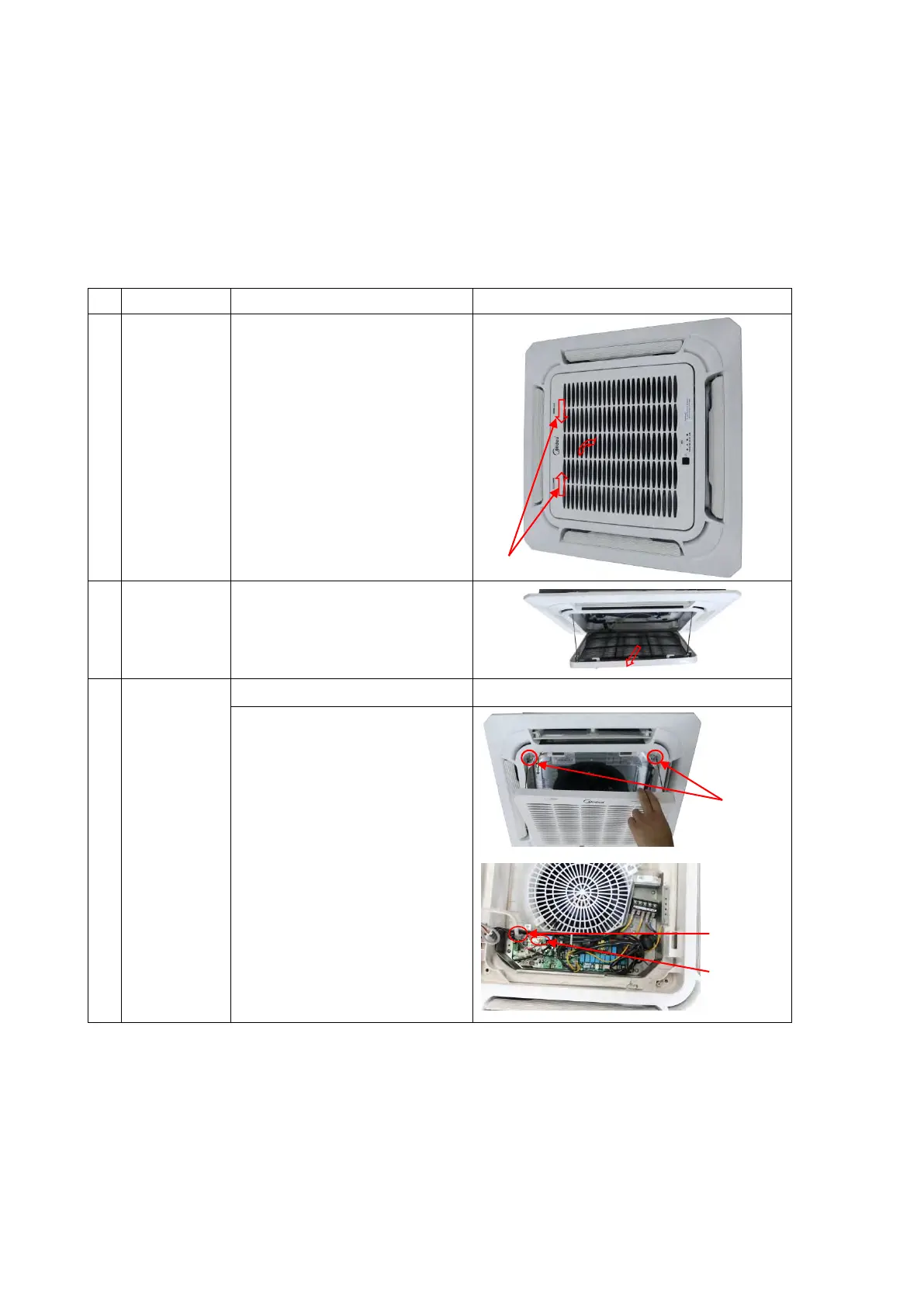

18. Disassembly Instructions
Note: This part is for reference, the photos may have slight difference with your machine.
18.1 Indoor unit
 Cassette Unit
No.
Parts name
Procedures
Remarks
1
Remove the
filter
1) Open the grille
2) Remove the filter
Note: the filter is easy to be
damaged, be careful when
removing it.
2
Remove the
panel
1) Open the grille
Repeat the operation of step1 of No.1
2) Remove the grille
 Screw off two screws.
 Disconnect the display
board wire and swing
motor wire connected to
the PCB.
 Remove the grille.
Grill switch
2 screws
display board wire
swing motor wire
