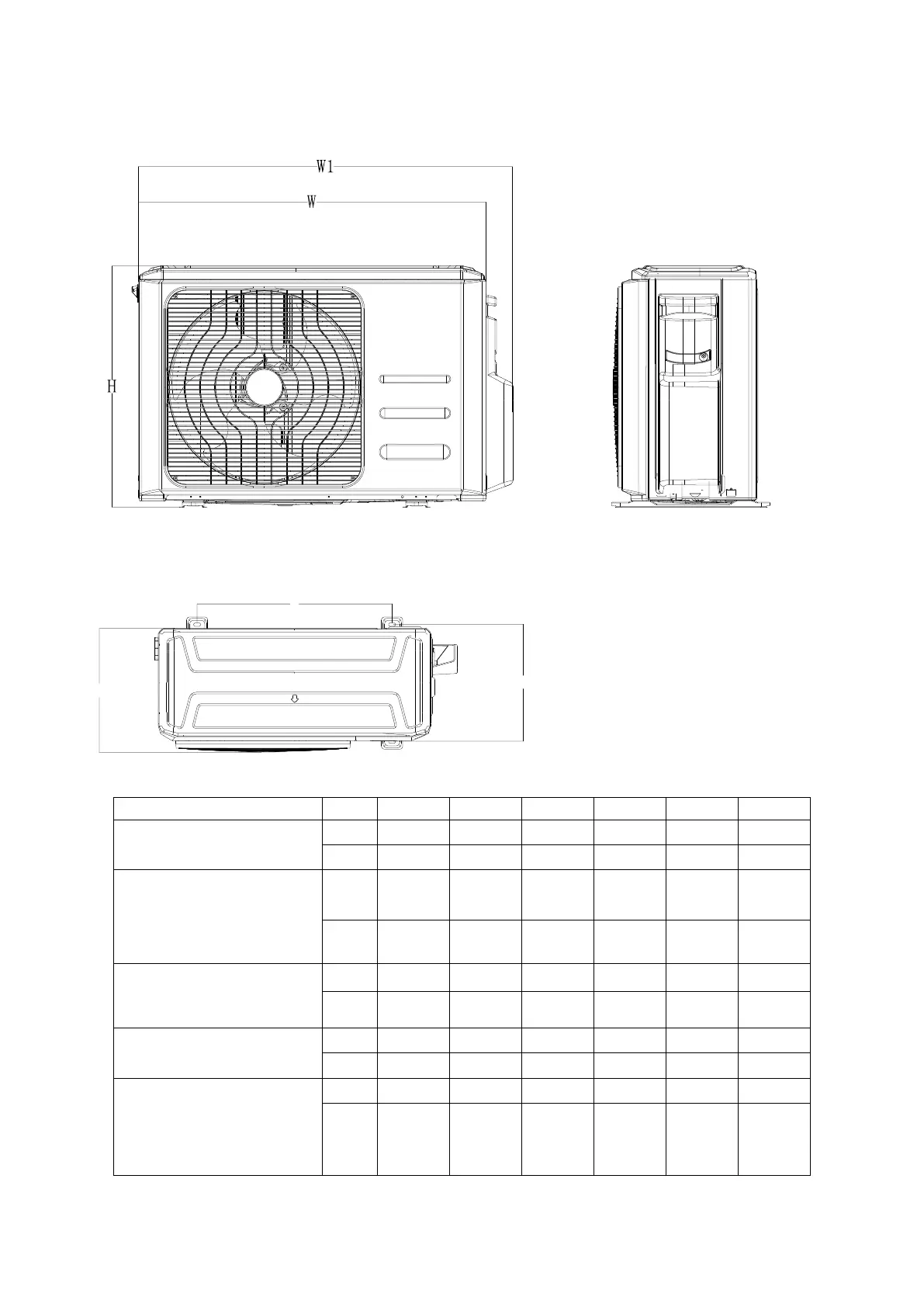

3.2 Outdoor Unit
A
B
D
Note: The above drawing is only for reference. The appearance of your units may be different.
Model
unit
W
D
H
W1
A
B
MOBA30-09HFN1-MT0W
mm
770
300
555
840
487
298
inch
30.3
11.8
21.9
33.1
19.2
11.7
MOB30-09HFN1-MX0W
MOB30-12HFN1-MV0W
MOB30-12HFN1-MT0W
MOB01-09HFN1-MW0W
MOB01-12HFN1-MV0W
mm
800
333
554
870
514
340
inch
31.5
13.1
21.8
34.3
20.2
13.4
MOCA01-18HFN1-MT0W
MOCA30-18HFN1-MT0W
MOCA31-18HFN1-MT0W
mm
845
363
702
914
540
350
inch
33.3
14.3
27.6
36.0
21.3
13.8
MOD01-23HFN1-MT0W
mm
946
420
810
1030
673
403
inch
37.2
16.5
31.9
40.6
26.5
15.9
MOD30-24HFN1-MT0W
MOD31-24HFN1-MT0W
MOD30-24HFN1-MU0W
MOD33-24HFN1-MT0W
MOD30U-36HFN1-M
MOD30U-36HFN1-MP0
mm
946
410
810
1030
673
403
inch
37.2
16.1
31.9
40.6
26.5
15.9
