Midea 50Hz AC Fan Coil Unit Two-pipe Wall-mounted Series MCAC-UTSM-201606
- 33 -

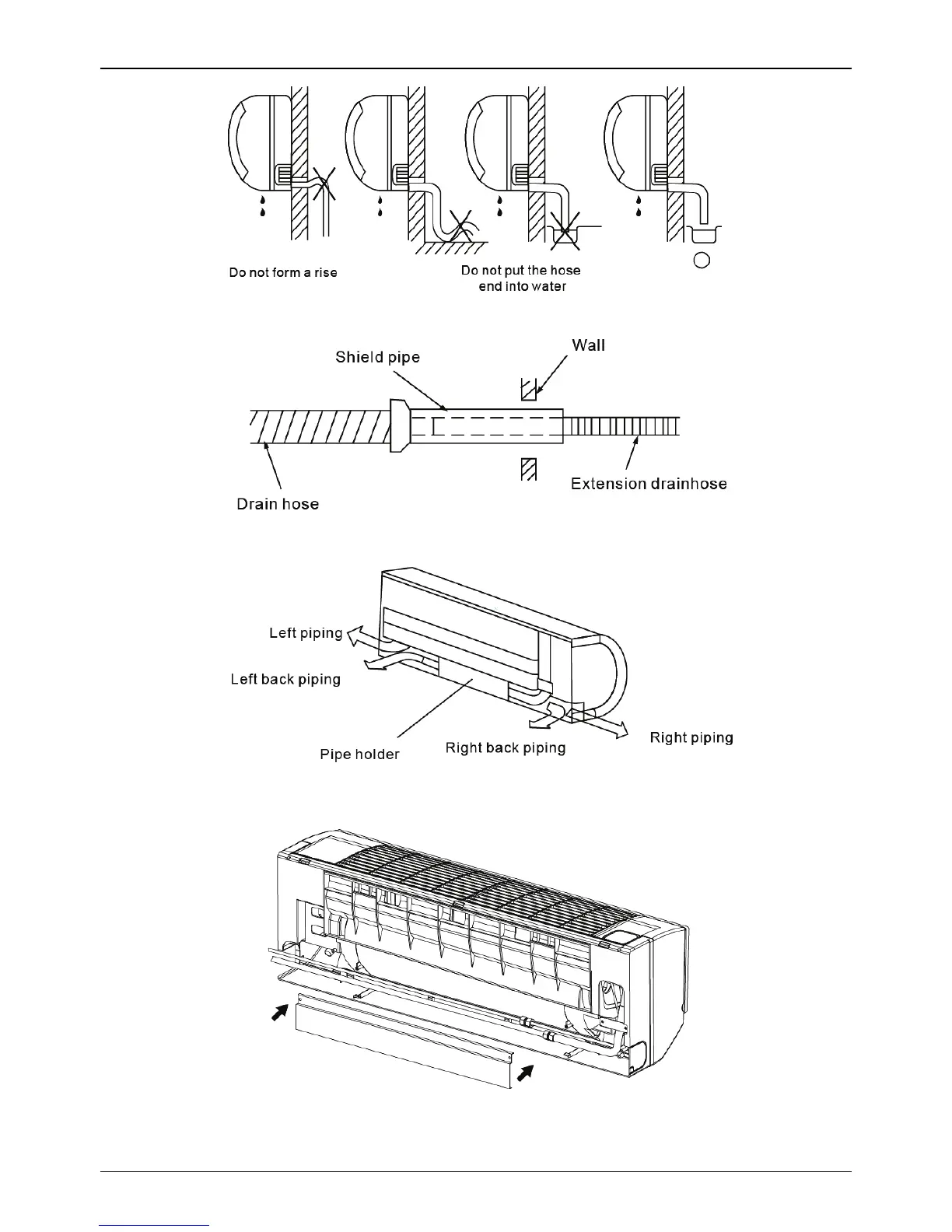

When connection extension drain hose, insulate the connecting part of extension drain hose with a shield pipe.
 Connection pipe
1. When install the water pipe of G unit, please following it
a) Put down two screws between the pipe holder and unit, and then get down pipe holder. (Refer to the following fig)
b) Connect pipe.
c) Install the pipe holder. (Refer to the following fig)
