Technical Information
56
CVA610 Coffee System
5.18 Steam Valve and Steam Valve Switch (S79) – Removal
Refer to Figure 5-17.
1. Open the door.
2. Remove the Rear Door Panel and Fascia Panel Cover
(5.12 & 5.13).
3. Pull off the switch knob (Item 8).
4. Remove the holder fixing screws (Item 3).
5. Remove the holder.
6. Remove the steam generator switch screws (Item 10).
7. Remove the steam generator switch.
8. Disconnect the steam generator switch connections.

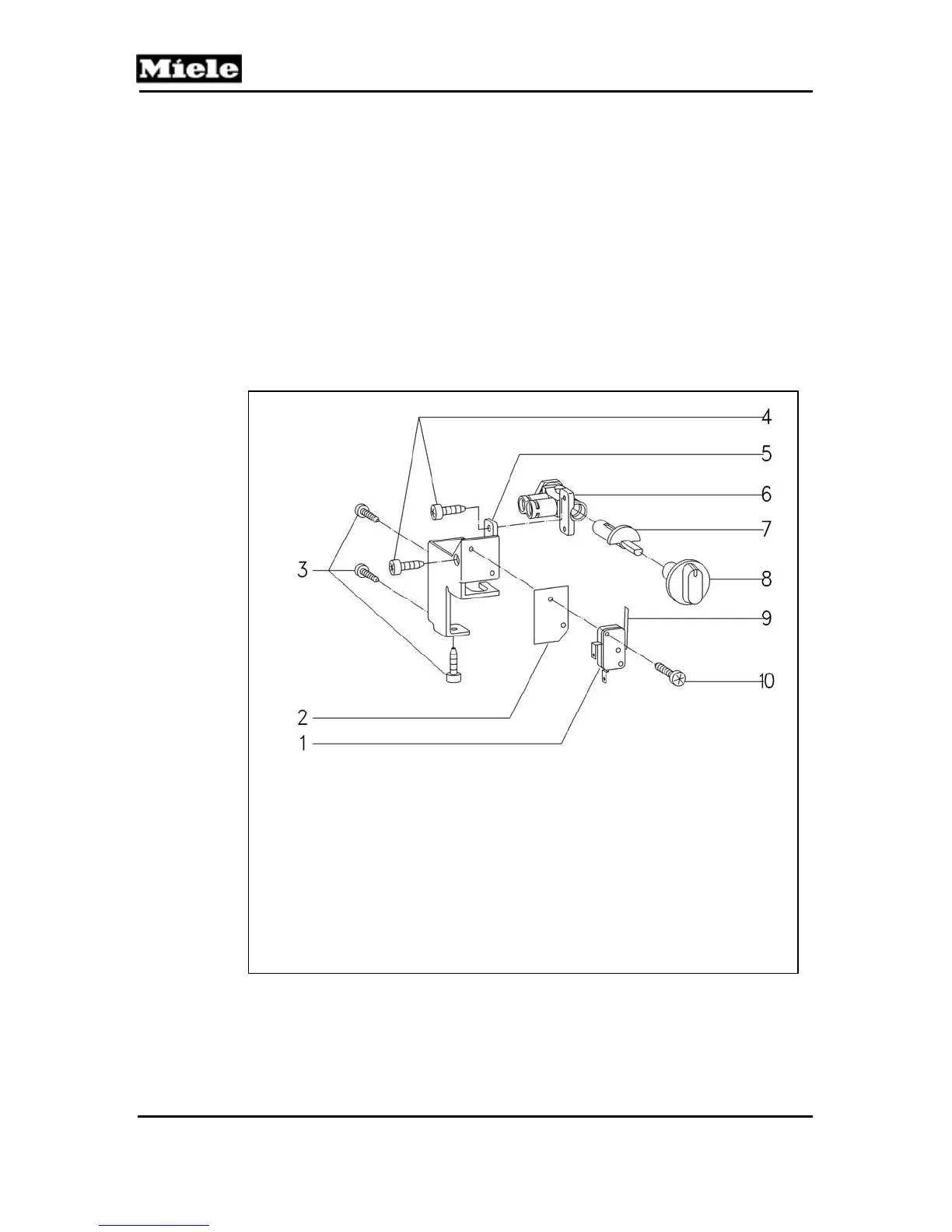

Figure 5-17: Components of Steam Valve and Steam Valve Switch
1 Switch - Steam generator (S79)
2 Underlay
3 Fixing screws - Holder
4 Fixing screws - Valve housing
5 Holder
6 Valve housing - Steam
7 Valve insert - Steam
8 Switch knob
9 Switch feeler
10 Fixing screw - Switch
