Installation
48

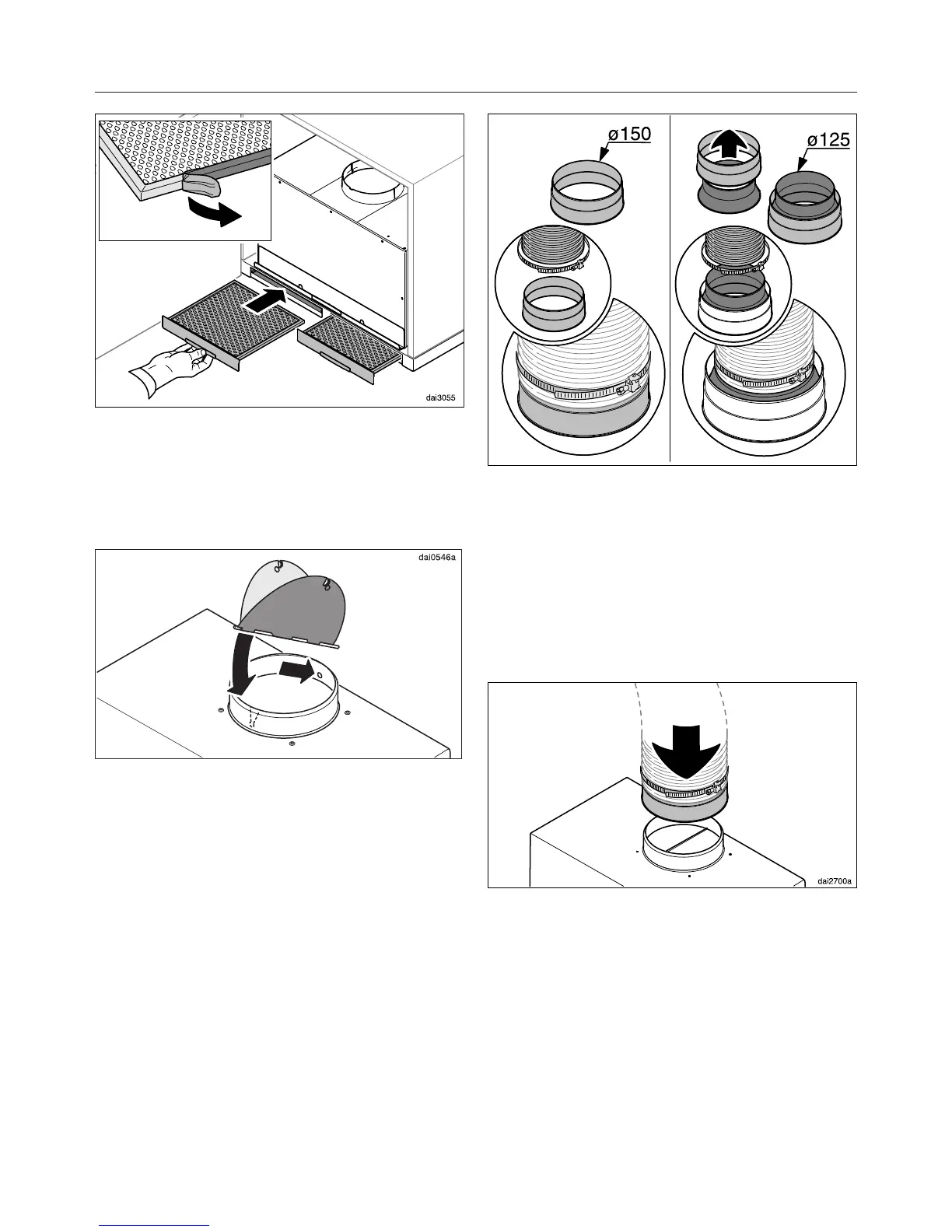

Take the grease filters out and
remove any protective foil. Then refit
the grease filters.
Set up for extraction mode
If r
equired, install the non-return flap.
Check that the flap opens easily and
closes by itself.
Attach the exhaust ducting, e.g.
flexible hose, to the exhaust collar
using a hose clip (available as an
optional accessory). When using
125 mm ducting, fit the reducing
collar supplied into the exhaust
socket (see "Connection for air
extraction").
Place
the exhaust ducting on the
exhaust collar for the rangehood.
See "Conn
ection for air extraction"
for further instructions on fitting the
ducting.
Set up for recirculation mode
If site conditions are not suitable for the
r
angehood to be used with air
extraction, the appliance must be set
