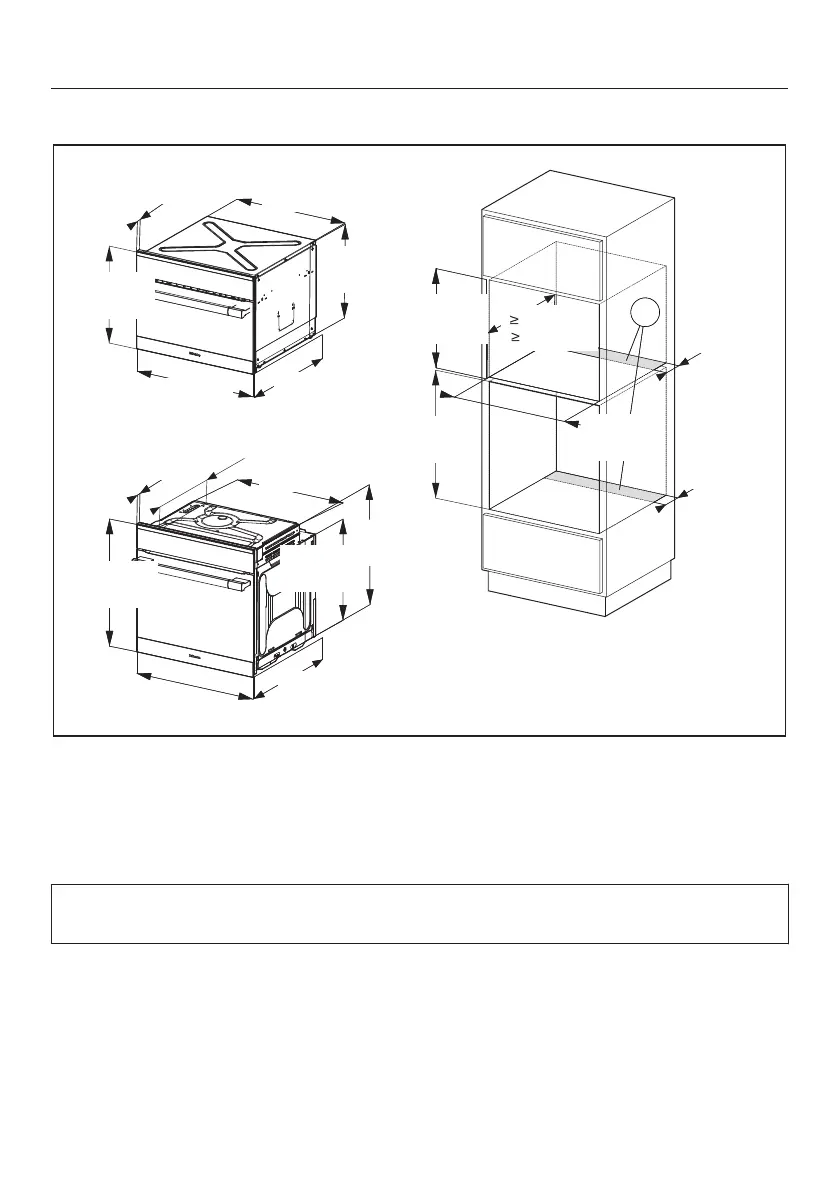

Installation diagrams
131
Installation in a tall cabinet in combination with an oven
7/8"
(22*/23** mm)
22 1/16"
(560 mm)
17 1/2"
(445 mm)
21 9/16"
(549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
7/8"
(22*/23** mm)
16" (407 mm)
21 11/16"
(551 mm)
22 11/16"
(577 mm)
20 1/16"
(510 mm)
21 1/2" (546 mm)
23 7/16"
(595 mm)
23 7/16"
(596 mm)
AA
4"
(100 mm)
4"
(100 mm)
20 7/8"
( 530 mm)
22 1/16"
(560 mm)
23 1/4"-23 7/16"
(590-595 mm)
17 3/4"-17 13/16"
(450-452 mm)

Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power
cord and ventilation
* Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Miele website.
