Installation diagrams
130

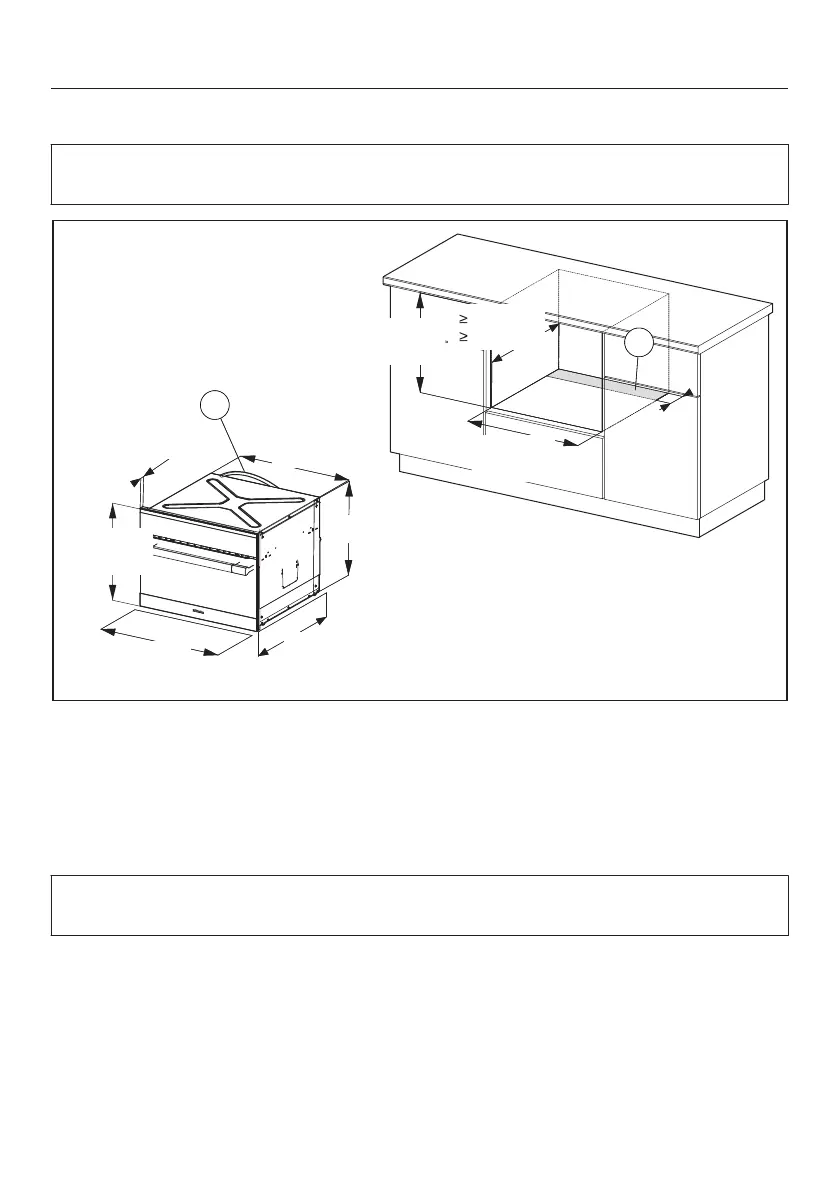

Undercounter installation
If installed underneath a cooktop, the installation instructions for the cooktop
must also be taken into account.
B
A
B
A
7/8" (22*/23** mm)
22 1/16"
(560 mm)
17 1/2" (445 mm)
21 9/16" (549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
22 1/16"
(560 mm)
4"
(100 mm)
18 1/8" - 18 5/16"
(460-465 mm)
21 5/8"
( 550 mm)
Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power
cord and ventilation
Power cord with plug
* Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Miele website.
