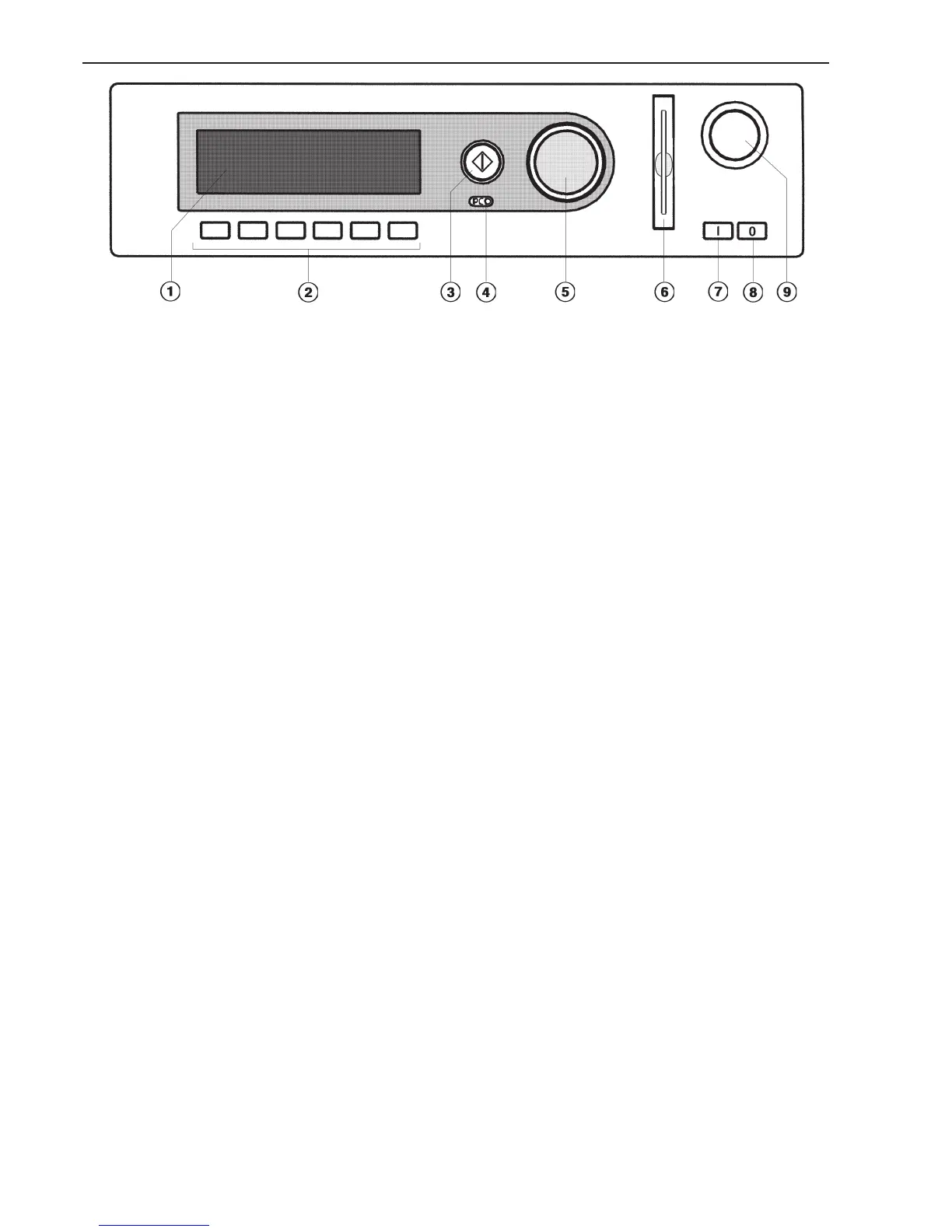

A description of the control elements
a Display
See the following pages for more information.
b Function buttons
The six buttons underneath the display are
the function buttons. These buttons have
specific functions depending on the status
of the machine. The function is described in
the display above the relevant button.
f Stop/End
The function button on the right-hand side is
used as the End button after the start of a
programme.
Once it has been pressed the selected
programme is stopped or a programme
which has been stopped is finished.
+i Block plus
m Starch stop
u Spin
k Without spin
FC Settings
m Start time
iInformation
i Manual control
ü Change order
A Back
e/- Indicates more information on next or
previous line
S Save
1-999 All programmes
} Button to go back a stage or delete a
letter or number keyed in erroneously
aNA Switch from lower to upper case
ANa Switch from upper to lower case
p Water inlet
ß Dispensing
ä Dispensing switched off
XY Washing and heating
Xq Drain with drum rotation
| Card
B Selected
$ Blocked/locked
D Data transfer
c h Start button with lightring
Starts the programme selected. The light
ring flashes before the start of a programme.
After a programme has started pressing it
will bring up information in the display that
was visible before the programme started.
d Optical interface PC
This interface is used for transferring data to
the control unit from a PC and vice versa.
e Rotary selector
Turning the selector brings up options and
menus in the display.
Pressing the selector confirms your selection.
f Chip card reader
g Mains on switch
h Mains off switch
i Emergency stop switch
Control elements
4 M.-Nr. 06 533 430
