Connection to cold water supply only
-See installation diagram supplied with the
machine.-

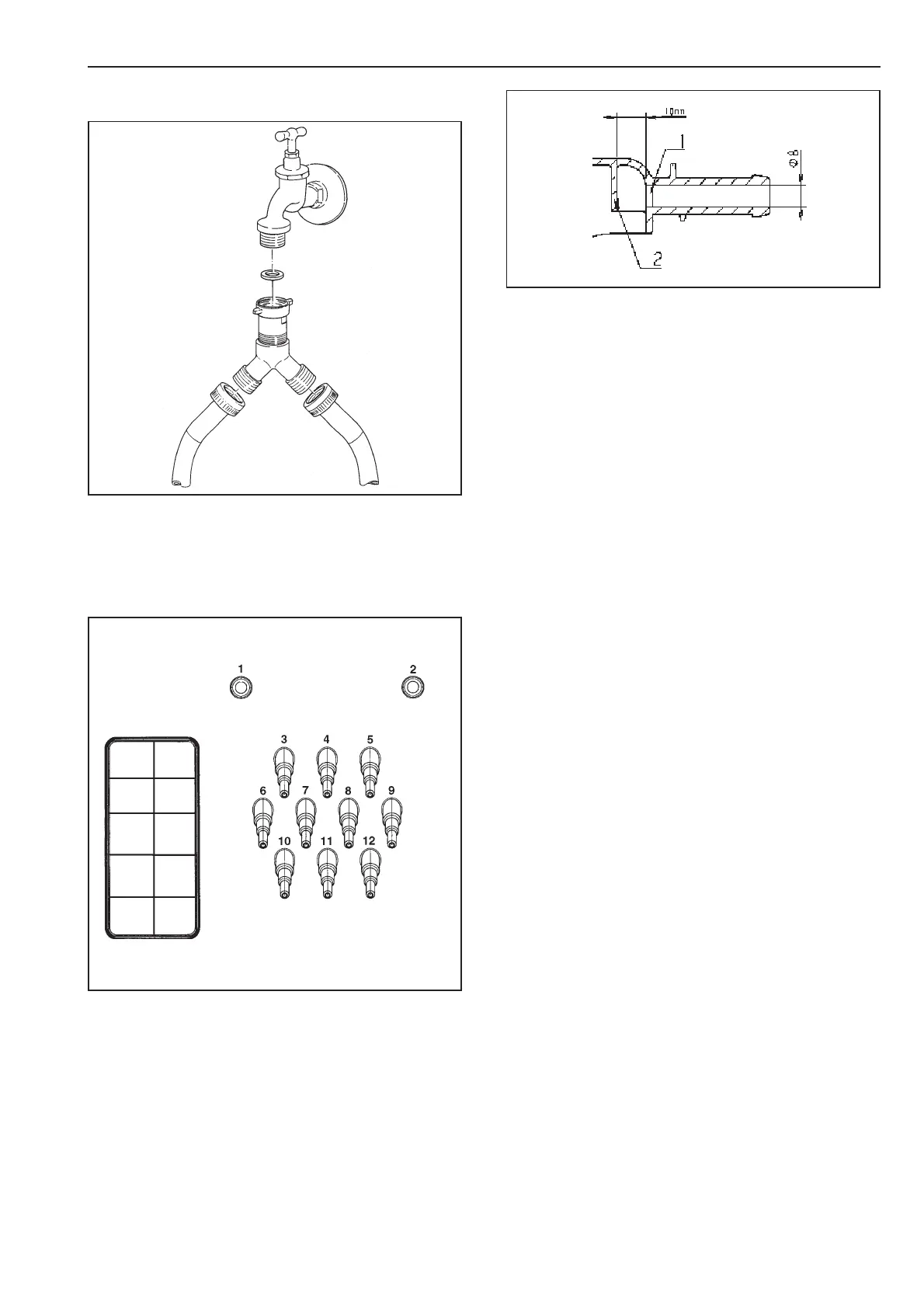

Dispenser system connections
Connections 1 and 2 are for viscous agents
only. These connections are sealed and
have to be drilled open with an 8 mm drill
bit.
Be carefull to only drill through the first wall
(1). There is a second one located 10 mm
behind it to deflect the agent and this must
not be drilled into.
Any connections that have been drilled open
must be resealed if they are subsequently
not required.
Connections 3 to 12 are for liquid agents
only. These connections are also sealed and
have to be trimmed to the correct diameter
for the hoses being used with a suitable
small saw.
Any connections that have been opened
must be resealed if they are subsequently
not required.
Notes for the installer
M.-Nr. 06 572 495 39
1"
3/4"
