Installation and connection
65

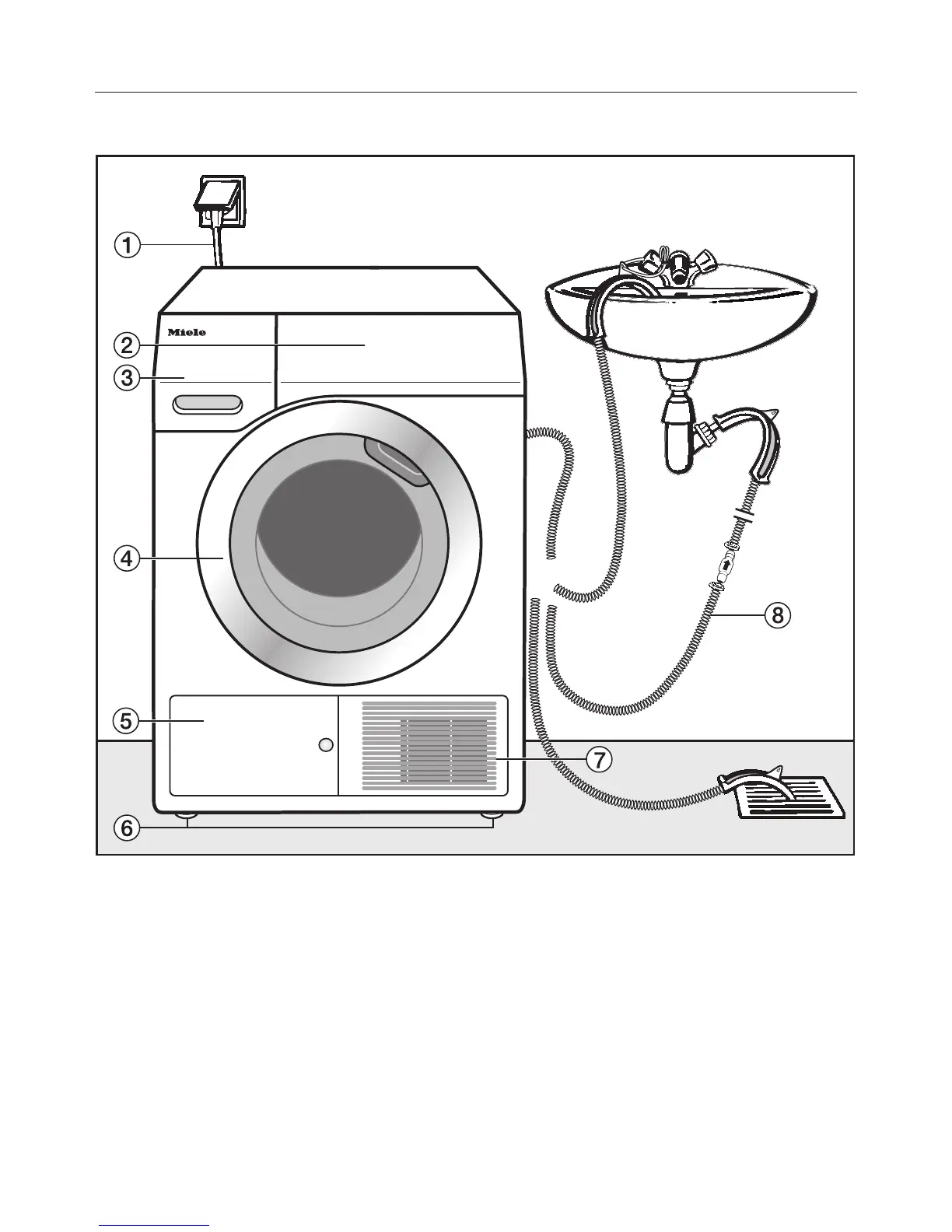

Front view
a
Mains connection cable
b
Control panel
c
Condensed water container
– empty after every drying cycle
d
Door
– do not open during drying
e
Heat exchanger access panel
– do not open during drying
f
Four height adjustable screw feet
g
Cool air intake grille
– do not obstruct with a laundry
bask
et or other objects
h
Hose for external drainage of con‐
densed wat
er
